Technology
General
Specifications
Part Order Number
MacSync-L-XX-XX
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
1
X RS485
2
X 4-20 mA
2
X 0-10 V
2
X Digital
1
X I2C
1
X UART
With the MacSync Series, a single interface can be used at a time
I2C & UART is for the internal purposes
Chips
nRF5340

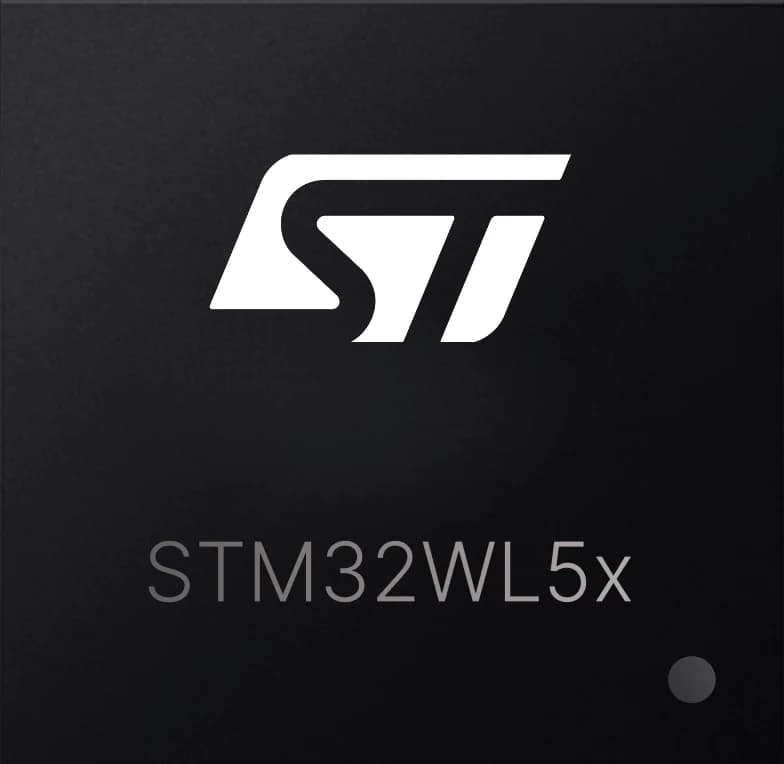

STM32WL5x
LoRaWAN
Range
2 KM
8 KM
LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.
Cloud
Platforms
LoRaWAN Specifications
Supported Class
Class A
Class C
Frequency
EU868
EU868
EU868
EU868
Heartbeat Limit
30 Seconds to 24 Hours
Activation Type
OTAA
LoRaWAN Antenna
Internal
LoRaWAN Antenna Sensitivity
-136 dBm
MacSync
Dimensions
What’s in the
Box?
MacSync-XX-XX
Mounting Clips
Cable Extender*
 1.svg)
Screws
Power Adapter *
User Manuals
Warranty Cards
The star mark (*) indicates that the part is an accessory and needs to be purchased separately. It is not included in the box.
Battery
Specification
Power Options
Inbuilt Battery
Battery Life
3 Years
5 Mins heartbeat
Battery Capacity
19,000 mAh
Battery Type
Er34615 3.6V 19AH LISOCI2 Battery
Physical
Specification
Mounting Methods
Pole Mounting
Wall Mounting
Dimensions
152 mm X 43 mm X 62 mm
Weight
460 gms (with batteries)
IP Rating
Waterproof IP65 Enclosures
Operating
Conditions
Operating Temperature
-35 C
+ 65 C
Storage Temperature
-40 C
+ 80 C
Relative Humidity
95% (non-condensing)
IP Rating
Suitable for indoor, outdoor & harsh environments such as high UV exposure, heavy rain, dusty conditions etc
Default Parameters
Frequency Plan
IN865
Confirmed Uplink
Off
Adaptive Data Rate
On
Heartbeat
10 Mins
To modify any MacSync parameter, you’ll need the Macnman Maya app.
