Packing List

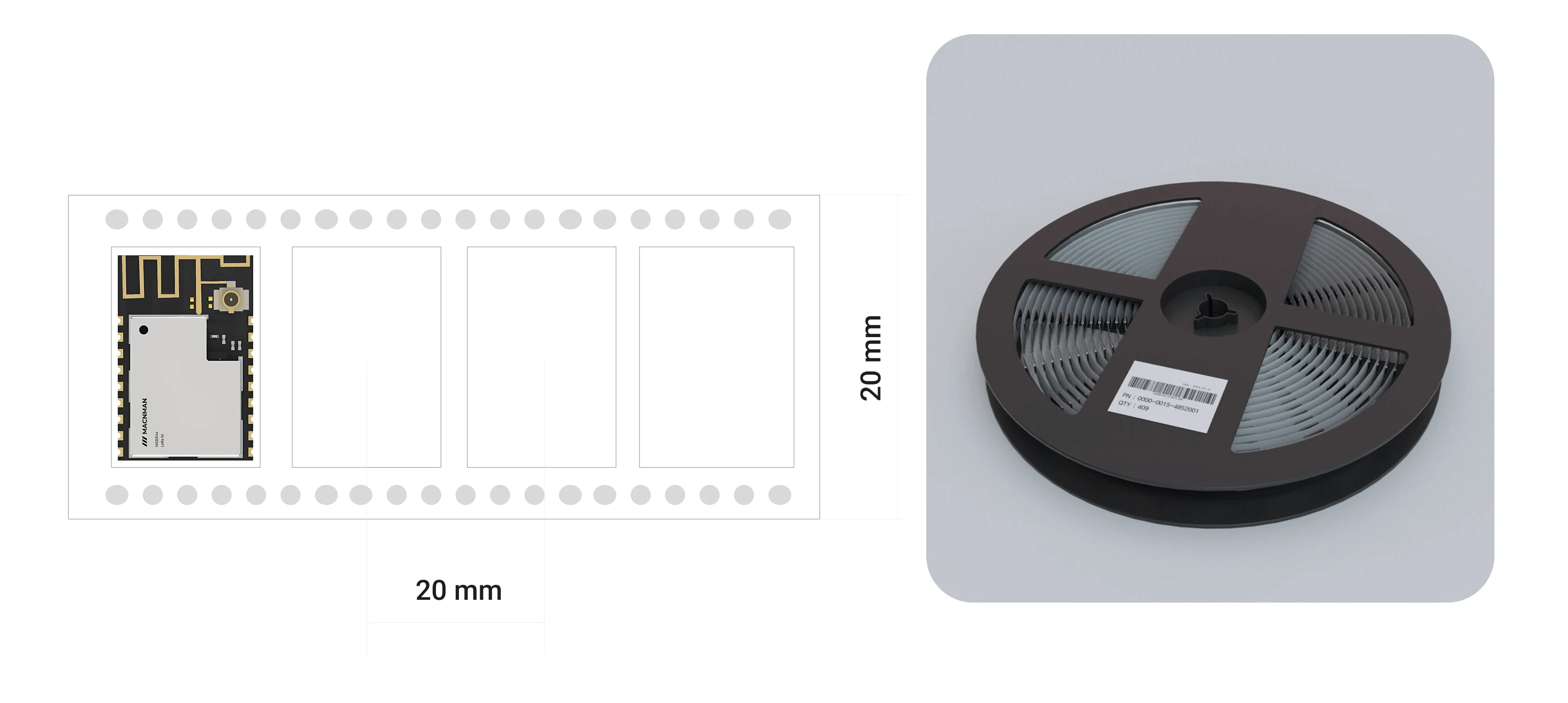

Reel type Package​

pcb layout recommside

Part List​

pcb layout recommcenter

Storage Condition​

  • Usage Timeline
    Please ensure the product is used within 6 months of receipt.

  • Unopened Package Storage
    Store the product in its unopened package at an ambient temperature of 5°C to 35°C with a humidity range of 20% to 70%RH.

  • Extended Storage
    If the product remains unused for more than 6 months after receipt, it must be inspected and confirmed before use.

  • Non-Corrosive Environment
    Store the product in an environment free from corrosive gases, such as Cl₂, NH₃, SO₂, and NOx.

  • Packaging Care
    Avoid mechanical shocks or damage to the packaging materials, such as punctures from sharp objects or dropping the product.

  • Moisture Sensitivity Level
    This product complies with MSL2 standards (per JEDEC J-STD-020).

Guidelines After Opening the Package​

  • Storage After Opening
    Once opened, store the product at a temperature of ≤30°C with humidity below 60%RH. Use the product within 3 to 6 months of opening.

  • Indicator Color Change
    If the moisture indicator in the package changes color, bake the product before soldering. Baking is not required for up to 1 year if storage conditions remain below 30°C and 60%RH.

  • Moisture Sensitivity
    Refer to MSL2 guidelines for exposure criteria. If the product is exposed to conditions of ≥168h @ 85°C/60%RH or stored for more than 1 year, baking is recommended.
