Versions

MacSync-LS7

MacSync-LS7 image

MacSync-LS5

MacSync-LS5 image

Connectivity

Soil Parameters

Temperature Range

-45°C to +115°C ±0.5°C

Moisture Range

0–100% RH ±3% (0–53% RH) ±5% (53%+)

pH Range

3–9 pH ±0.3 pH

NPK Range

0–1999 mg/kg ±2% F.S

EC Range

0–10000 µS/cm @ Resolution: 10 µS/cm

Ingress Protection (Sensor)

IP68

Chips

 nRF5340

STM32WL5x

LoRaWAN Range

2 KM

8 KM

LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.

Cloud Platforms

Cloud Platform
Cloud Platform
Cloud Platform
Cloud Platform
Cloud Platform

LoRaWAN Specifications

Supported Class

Class A

Class C

Frequency

EU868

EU868

EU868

EU868

Activation Type

OTAA

LoRaWAN Antenna

Internal High- Efficiency Antenna

LoRaWAN Antenna Sensitivity

-137 dBm @ 300 bps

Tx Power

16 dBm @868 MHz

20 dBm @915 MHz

Power
Specifications

Power Options

Inbuilt Battery

Battery Life

3 Years @ 5 Mins heartbeat

Battery Capacity

19,000 mAh

Battery Type

Er34615 3.6V 19AH LISOCI2 Battery

Physical
Specifications

Mounting Methods

Pole Mounting

Wall Mounting

Dimensions

152 mm X 43 mm X 62 mm

Weight

160 gms (with batteries)

IP Rating

Waterproof IP65 Enclosures

Operating
Conditions

Operating Temperature

-35 C

+ 65 C

Storage Temperature

-40 C

Relative Humidity

95% (non-condensing)

IP Rating

Suitable for indoor, outdoor & harsh environments such as high UV exposure, heavy rain, dusty conditions etc

Default
Parameters

Frequency Plan

IN865

Confirmed Uplink

Off

Adaptive Data Rate

On

Heartbeat

10 Mins

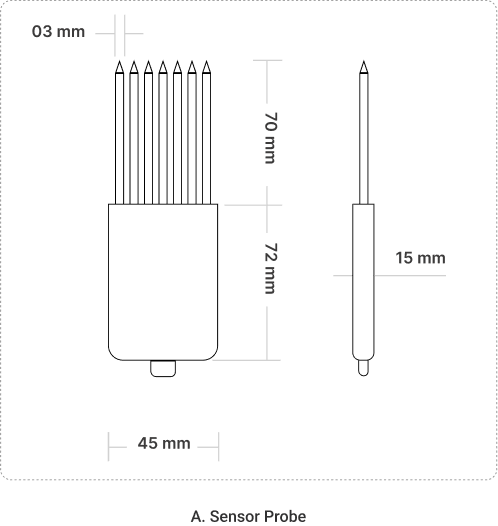

MacSync
Dimensions

dimension-1
dimension-2

What’s in the
Box?

MacSync-XX-XX

MacSync-XX-XX

Mounting Clips

Mounting Clips

Cable Extender*

Cable Extender*

Screws

Screws

Power Adapter *

Power Adapter *

User Manuals

User Manuals

Warranty Cards

Warranty Cards

The star mark (*) indicates that the part is an accessory and needs to be purchased separately. It is not included in the box.

FAQs

Simply insert the soil probe into the root zone of the crop and connect it to the LoRaWAN network. The MacSync sensor is plug-and-play with TTN, ChirpStack, and private LoRaWAN gateways.

Yes, MacSync LoRaWAN soil sensors are weatherproof and work reliably in open fields, greenhouses, orchards, and smart irrigation systems.

It measures soil moisture, temperature, and conductivity (salinity) to help optimize irrigation and crop yield.

With ultra-low power design, the battery lasts up to 5 years depending on the data transmission interval.

Yes, the sensor has an IP67 enclosure, making it waterproof and suitable for outdoor farming conditions.

Yes, the MacSync soil sensor is fully compatible with The Things Network (TTN) and other LoRaWAN servers.

It can transmit up to 15 km line-of-sight and 2–5 km in dense farming areas.

Soil sensors are useful for vegetables, fruits, vineyards, rice, wheat, sugarcane, and greenhouse crops that need precise irrigation.
