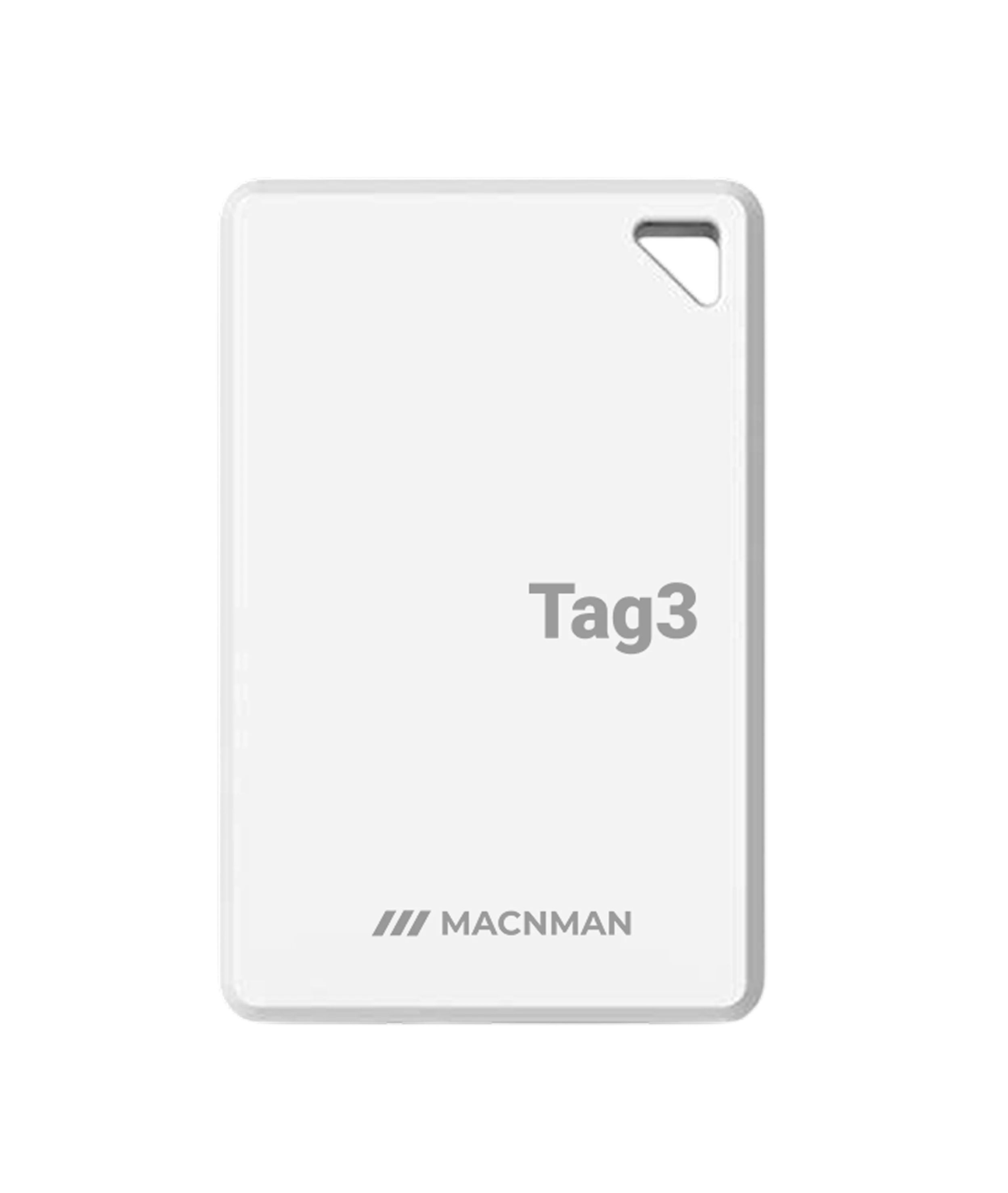

TagX3 Datasheet
Product Overview
Tag X3 is a compact and rugged Bluetooth Low Energy (BLE) sensor tag and beacon designed for asset tracking, indoor location services, and condition monitoring across industrial and commercial environments. Supporting both iBeacon and Eddystone protocols, Tag X3 enables seamless identification, proximity detection, and location tracking using BLE gateways, mobile devices, and edge receivers.
In addition to beaconing, Tag X3 integrates multiple onboard sensors including an IMU (motion and orientation sensing), temperature, humidity, and barometric pressure, allowing it to capture real-time movement and environmental conditions directly from the asset. This makes it ideal for monitoring asset usage, movement patterns, handling events, and storage conditions.
Engineered for ultra-low power operation, Tag X3 supports configurable advertising intervals, transmit power levels, and event-based triggers to maximize battery life while maintaining reliable visibility. The device can operate continuously for long durations in both broadcast-only and sensor-enabled modes.
Tag X3 works seamlessly with BLE-to-Wi-Fi gateways, smartphones, tablets, and industrial edge devices, enabling data forwarding to on-premise systems or cloud platforms for analytics, alerts, and automation. Its small form factor and rugged enclosure make it suitable for tools, containers, equipment, pallets, and movable assets in warehouses, factories, campuses, and smart buildings.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for TagX3
Key Features
BLE Beacon with iBeacon & Eddystone Support Fully supports industry-standard iBeacon and Eddystone protocols for indoor positioning, proximity detection, and asset identification.
Integrated IMU for Motion & Orientation Built-in inertial sensor enables motion detection, tilt sensing, shock events, and movement-based triggers.
Temperature, Humidity & Pressure Sensing Onboard environmental sensors provide real-time monitoring of temperature, relative humidity, and barometric pressure.
Ultra-Low Power BLE Operation Optimized BLE advertising and sensor sampling for long battery life in continuous broadcast and event-driven modes.
Configurable Advertising Parameters Adjustable advertising interval, transmit power, and payload structure to balance range, visibility, and power consumption.
Event-Based Sensor Triggers Supports motion-based, orientation-based, and threshold-based triggers for intelligent tracking and alerts.
Gateway & Smartphone Compatible Works seamlessly with BLE gateways, smartphones, tablets, and industrial edge devices for data collection.
Compact & Rugged Form Factor Small, lightweight enclosure suitable for tools, pallets, containers, equipment, and movable assets.
BLE Configuration via Maya App Easy local configuration, diagnostics, and parameter updates using the Macnman Maya mobile application.
Indoor Asset Tracking & Condition Monitoring Ready Designed for RTLS, asset tracking, usage analytics, and environmental condition visibility.
Suited Applications
Asset Tracking & RTLS Real-time tracking of tools, equipment, pallets, containers, and movable assets using BLE gateways and indoor location systems.
Warehouse & Logistics Operations Asset visibility across warehouses, distribution centers, and logistics hubs to track movement, utilization, and dwell time.
Smart Buildings & Campuses Indoor location, proximity detection, and environmental monitoring across offices, campuses, and commercial buildings.
Cold Chain & Storage Condition Monitoring Temperature, humidity, and pressure monitoring for sensitive goods during storage and indoor transportation.
Industrial Equipment Monitoring Motion, shock, and usage detection for machines, tools, and equipment to improve asset utilization and maintenance planning.
Personnel & Safety Monitoring Proximity and movement tracking for workforce safety, zone compliance, and restricted area monitoring.
Retail & Indoor Analytics Footfall analysis, zone activity tracking, and customer movement insights without using cameras.
Facility & Infrastructure Monitoring Environmental condition visibility and asset movement tracking inside factories, plants, and infrastructure facilities.
Technical Specification
General
Specifications
Part Order Number
TagX3
Product Brand
Macnman Technologies Pvt Ltd
Environmental
Sensor Specifications
Temperature Sensor
Integrated digital temperature sensor
Temperature Measurement Range
-20°C to +60°C
Temperature Accuracy
±0.5°C (typical)
Humidity Sensor
Integrated digital humidity sensor
Humidity Measurement Range
0% to 100% RH (non-condensing)
Humidity Accuracy
±3% RH (typical)
Pressure Sensor
Integrated barometric pressure sensor
Pressure Measurement Range
300 hPa to 1100 hPa
Pressure Accuracy
±1 hPa (typical)
IMU
Specifications
IMU Type
Integrated MEMS Inertial Measurement Unit
Sensors Included
3-axis Accelerometer
3-axis Gyroscope (variant dependent)
Acceleration Range
±2g / ±4g / ±8g / ±16g (configurable)
Motion Detection
Movement detection
Shock & impact detection
Tilt & orientation change detection
Sampling Rate
Configurable (Typical: 1 Hz to 100 Hz)
Trigger Modes
Event-based triggers
Threshold-based triggers
Periodic sampling
Use Cases
Asset movement tracking
Drop / shock detection
Usage pattern analysis
Wireless
Transmission
Wireless Technology
Bluetooth Low Energy (BLE)
Supported Beacon Protocols
iBeacon
Eddystone (UID / URL / TLM)
Operating Frequency
2.4 GHz ISM Band
Transmit Power
Configurable (Typical: -20 dBm to +4 dBm)
Advertising Interval
Configurable (100 ms to 10 s)
Antenna
Internal high-efficiency BLE antenna
Communication Mode
Broadcast (Beacon Advertising)
Connectable BLE (for configuration & diagnostics)
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of tag is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
CR Series Lithium Coin Cell (Replaceable)
Typical Battery Models
CR2477 / CR2450 (Variant dependent)
Power Consumption
Ultra-low power BLE operation
Optimized for beacon advertising and sensor event-based transmission
Battery Life
Up to 12–24 months (depending on advertising interval, Tx power, and sensor usage)

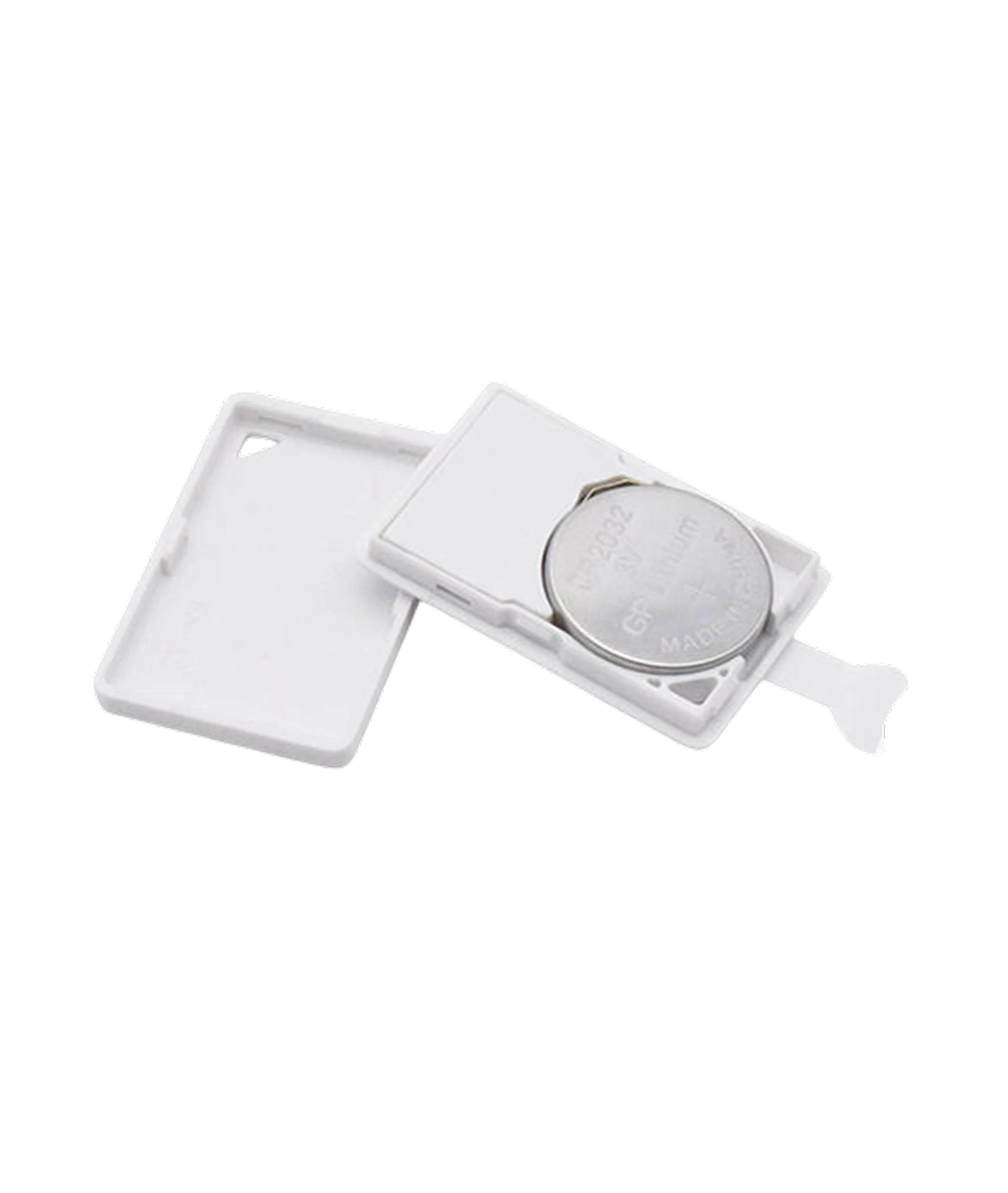

Battery Replacement
User-replaceable coin cell
Supported
BLE Protocols
Beacon Protocols
iBeacon
Eddystone-UID
Eddystone-URL
Eddystone-TLM
BLE Communication
BLE Advertising (Broadcast Mode)
Connectable BLE (Configuration & Diagnostics)
Compatibility
BLE Gateways
Smartphones & Tablets (Android / iOS)
Industrial Edge Devices
Physical
Characteristics
Power Supply
Internal CR Series Lithium Coin Cell
Operating Temperature
-20°C to +60°C
Operating Humidity
0% to 95% RH (non-condensing)
Ingress Protection
IP54 (IP65 optional variant)
Housing Material
Industrial-grade ABS / Polycarbonate enclosure
Color
Matte Black
Weight
< 50 g (with battery)
Mounting Options
Adhesive mount / Screw mount / Lanyard / Clip (variant dependent)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
TagX3 Variants
| Variant Name | Power Source | Battery Type | Battery Capacity | External Flash | Ideal For |
|---|---|---|---|---|---|
| TagX3-BO | Battery Powered | CR Series Lithium Coin Cell | CR2450 / CR2477 | ✔️ | Asset tracking, RTLS, condition monitoring, cold chain, warehouse logistics, smart buildings, and portable deployments |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
