Versions

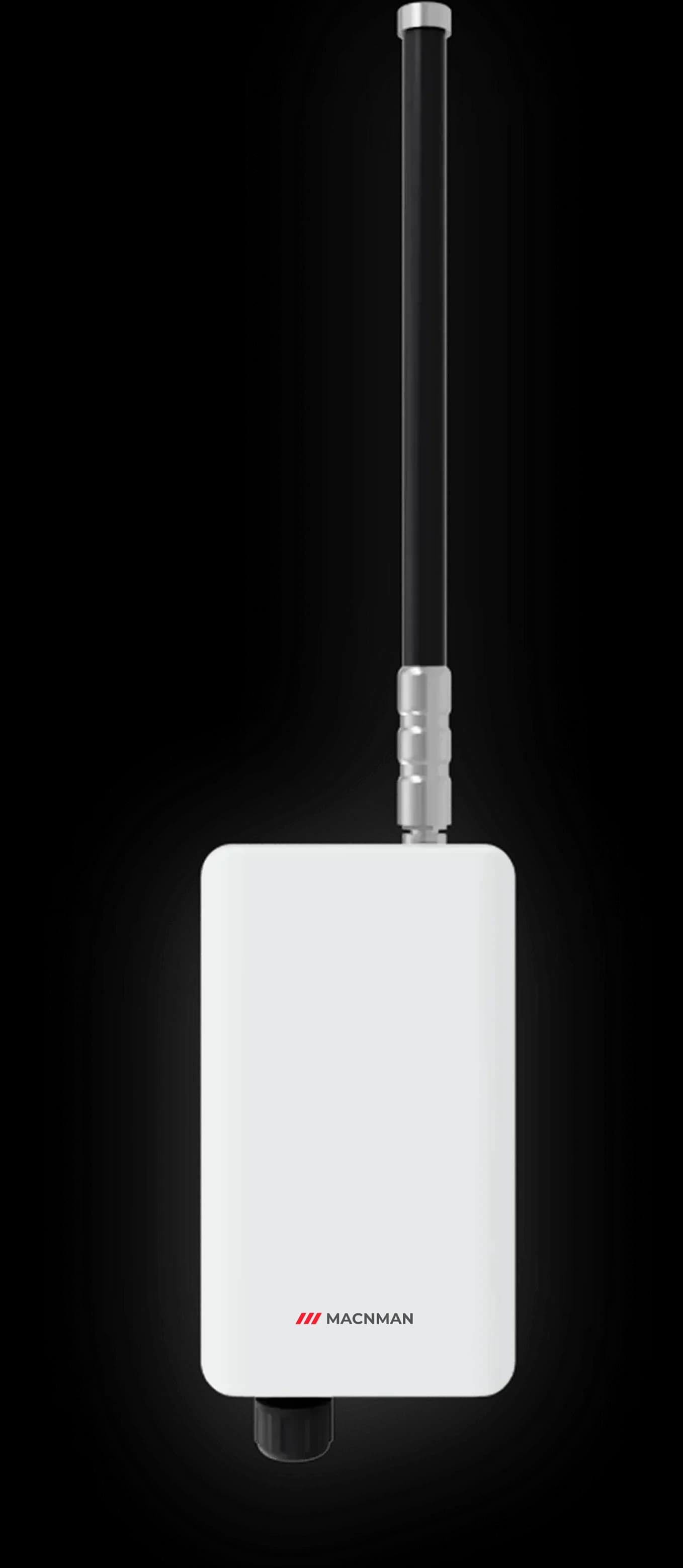

MacLink Gen-2
Technology
General
Specifications
Part Order Number
MacLink-Gen-2
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
MQTT
HTTPS
Modbus-TCP
Chips
SX1303
LoRaWAN
Range
2 KM
8 KM
LoRaWAN range varies based on environmental conditions. The claimed estimates are based on our tests and may differ in real-world scenarios due to interference, obstacles, and other factors.
Cloud
Platforms
MacSync
Dimensions
What’s in the
Box?
MacLink Gen-2
Antenna
Power Adapter PoE
(*) Accessories needs to be purchased separately. It is not included in the box.
LoRaWAN
Specifications
Supported Class
Class A
Class B
Class C
LoRaWAN Frequency
IN865
EU868
US915
AU868
LoRa Demodulators
8 x 8 Channels LoRa Packet Detector
Demodulation Paths
Up 10 Parallel
Uplinks Channel
8
Downlinks Channel
1
Tx Power
Up to 27 dBm @ SF12, BW 125 kHz
RX Sensitivity
Down to -139 dBm @ SF12, BW 125 kHz
Data-rate
Dynamic data-rate adaptation (ADR)
Module Certification
USB IN865
Antenna Connector
N Type Female
Ethernet
Specification
Number of Ports
1
Type
1x 10/100M
WiFi
Specification
Bands
2.4 GHz ISM
Standards
802.11 b/g/n, 802.3, 802.3u
Modulation Schemes
BPSK, QPSK, 16 QAM, 64 QAM
Security
WEP, TKIP, and AES, WPA, WPA2
Antenna
Inbuilt inside the enclosure
Cellular
Parameters
Cellular Bands
Indian 4G LTE Bands: B3, B5, B40
SIM card
2 x nanoSIM
Antenna
Inbuilt inside the enclosure
GNSS
Specifications
GNSS systems
GPS, BDS, Galileo, GLONASS, QZSS
Antenna Connector
Inbuilt inside the enclosure
Security
Specifications
VPN
Multiple VPN support
Login
User name and login access
LED
Indicators
Number
1 - Multi-color LED
Operating
Specifications
OS
OpenWRT Linux
Forwarder
UDP forwarder
ChirpStack MQTT forwarder
LNS
ChirpStack server
Other functions
Node-RED with ChirpStack
Power
Supply
Power Supply
PoE isolated EEE802.3
Power consumption
Average 5W (approx)
Connector
RJ45 (cable through gland)
Power Backup
Inbuilt SuperCAP
Backup Time
Approx 20s
Physical
Characteristics
Installation
Pole / Wall Mounting
Housing Back
Aluminium alloy ADC-12 Surtec650
Housing Front
Polycarbonate
Cooling
Passive
Weight
920g Without Accessories
Environmental
Characteristics
Operating Temperature
-25 ~ 70°C (-13 ~ 158°F)
Storage Temperature
40 ~ 85°C (-40 ~ 176°F)
Ambient RH
5% ~ 95% (non-condensing)
Protection Class
IP67
