Power Options in MacSet

External Power Supply​

MacSet also supports direct external power input (12–24 V DC):

  • Ensure wiring is done as per MacSet and the sensor manufacturer’s power and polarity specifications.
  • This is ideal for installations where continuous power is available and high-frequency data logging is required.

Terminal Connections​

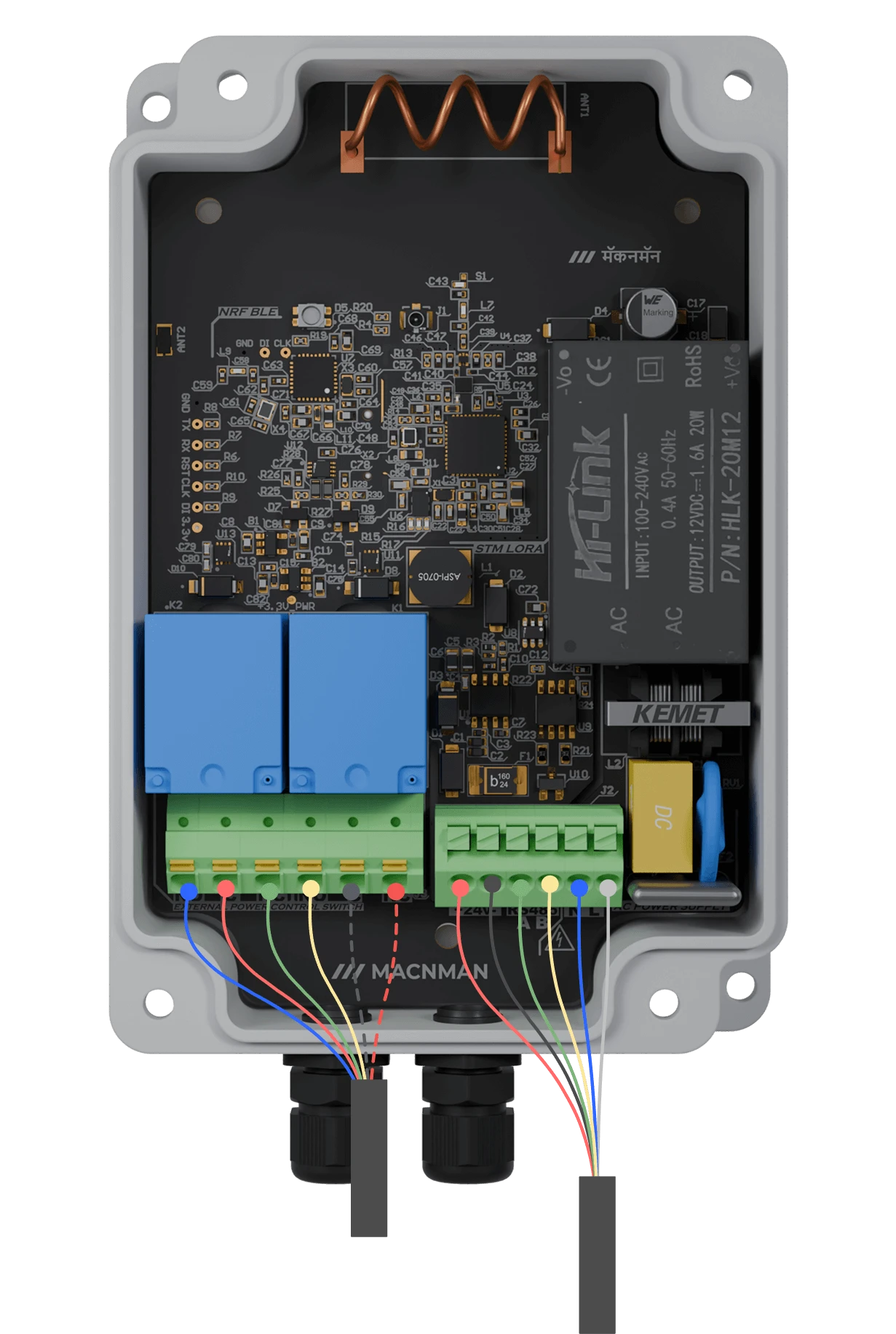

macset terminal

Procedure for Connecting External Power​

MacSet can also be powered through a direct external DC source within a 12–24 V range. Ensure proper connection using a compatible terminal or jack, and always refer to both MacSet and sensor manufacturer specifications for safe operation.

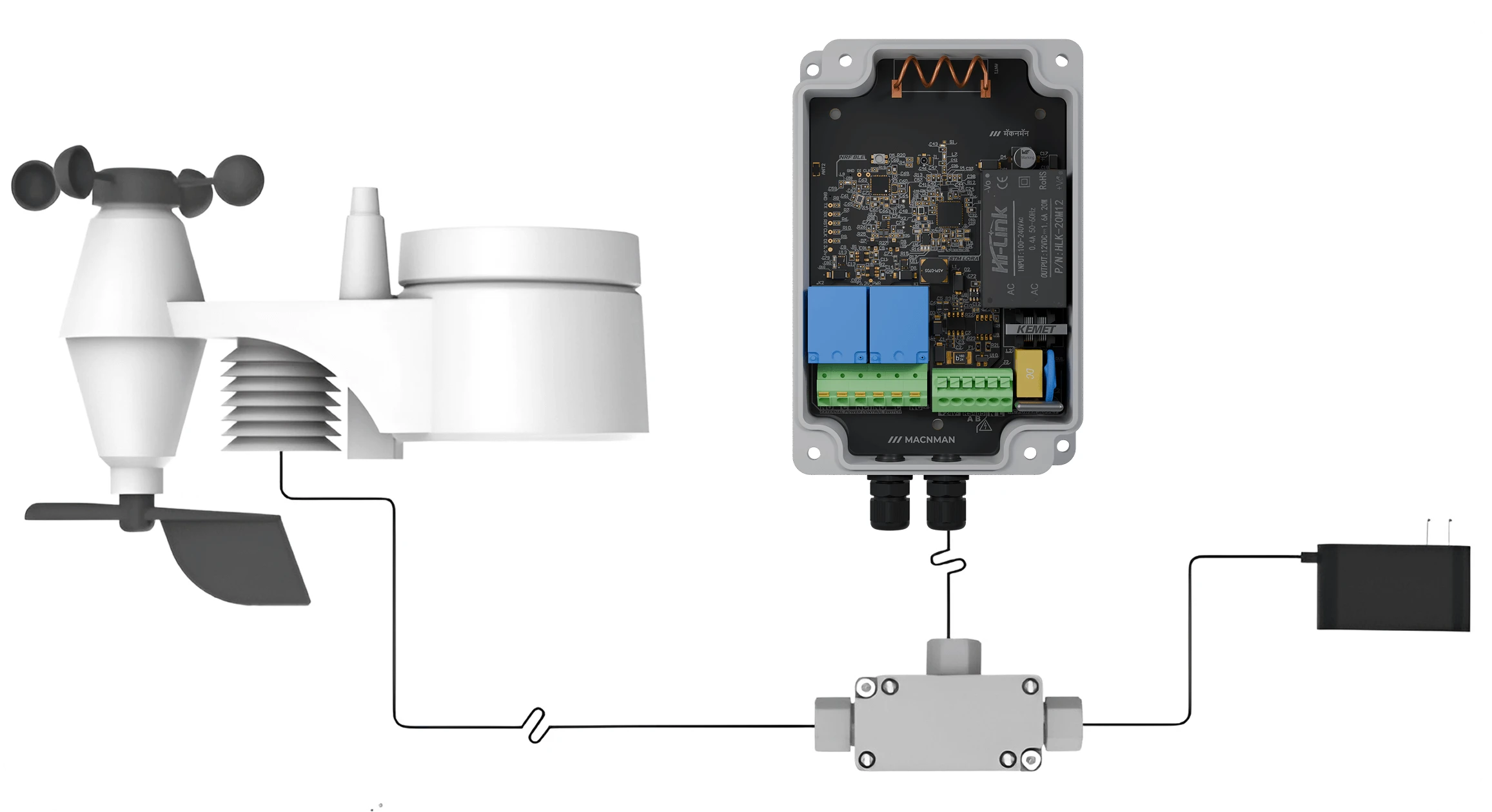

external supply

Connecting External Sensors​

  • Check Sensor Specifications
    Ensure compatibility with MacSet's input requirements.

  • Power Off the device
    Turn off MacSet before making any connections.

  • Attach Sensor Cables
    Connect cables to the appropriate inputs on MacSet, following the sensor manufacturer’s pin configuration and power on device.

  • Configure via Maya App
    Power on MacSet and configure it using the Maya app to adjust settings as per your needs.

Connecting External Power Supply​

  • Verify Power Supply
    Confirm the power supply matches MacSet's 12-24 V requirement. Turn off both MacSet and the power source before connecting.

  • Connect Power Cable , Insure safety
    Turn off MacSet before making any connections.

Led Status​

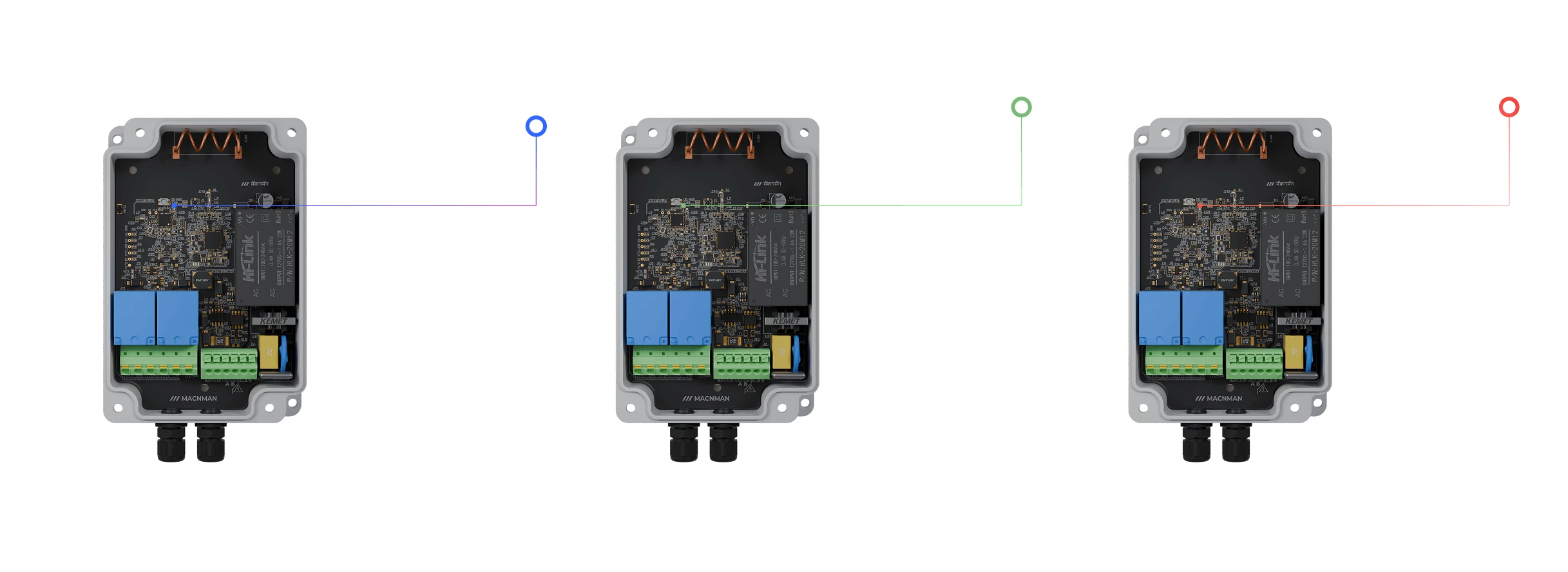

led Status

Blue

Device is connected with Maya app & Flashing Blue - OTA in progress.

Green

Slow green blink - attempting to connect to the network.

Red blink

Modifying any confirmed parameters of MacSet.
