MacSync Mounting Options

Wall Mounting​

baud rate

baud rate

baud rate

Apply the Reference Tape

  • Take the provided white tape (with two pre-marked reference holes) from the box and stick it onto the wall where you plan to install the sensor. This will serve as a drilling template.

Drill Mounting Holes

  • Drill the holes as per the markings on the tape to ensure perfect alignment.

Fix the Mounting Bracket

  • Screw the bracket securely to the wall using the drilled holes.

Mount the Sensor

  • Slide the MacSync sensor downward into the bracket until it clicks and locks in place.

Secure the Sensor (Optional)

  • For additional security, use the extra screw holes on the opposite side to further fasten the sensor.

Pole Mounting​

baud rate

Detach the Mounting Clip

  • Remove the mounting clip from the MacSync device.

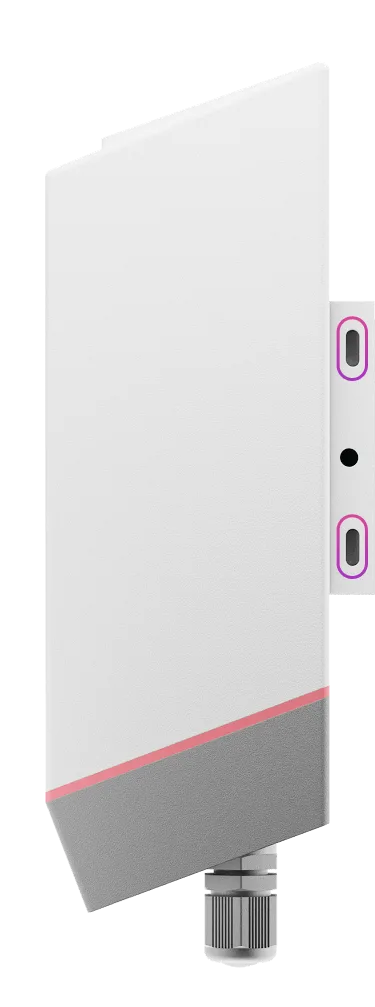

Insert Zip Ties

  • Thread metal or plastic zip ties through the highlighted mounting holes on the clip.

Position on Pole

  • Place the MacSync (with clip and zip ties) against the pole at the desired height.

Secure the Device

  • Wrap the zip ties tightly around the pole and pull until the device is held firmly in place.Both plastic and stainless steel zip ties are compatible.
