MacSync-LWQS8
Product Overview

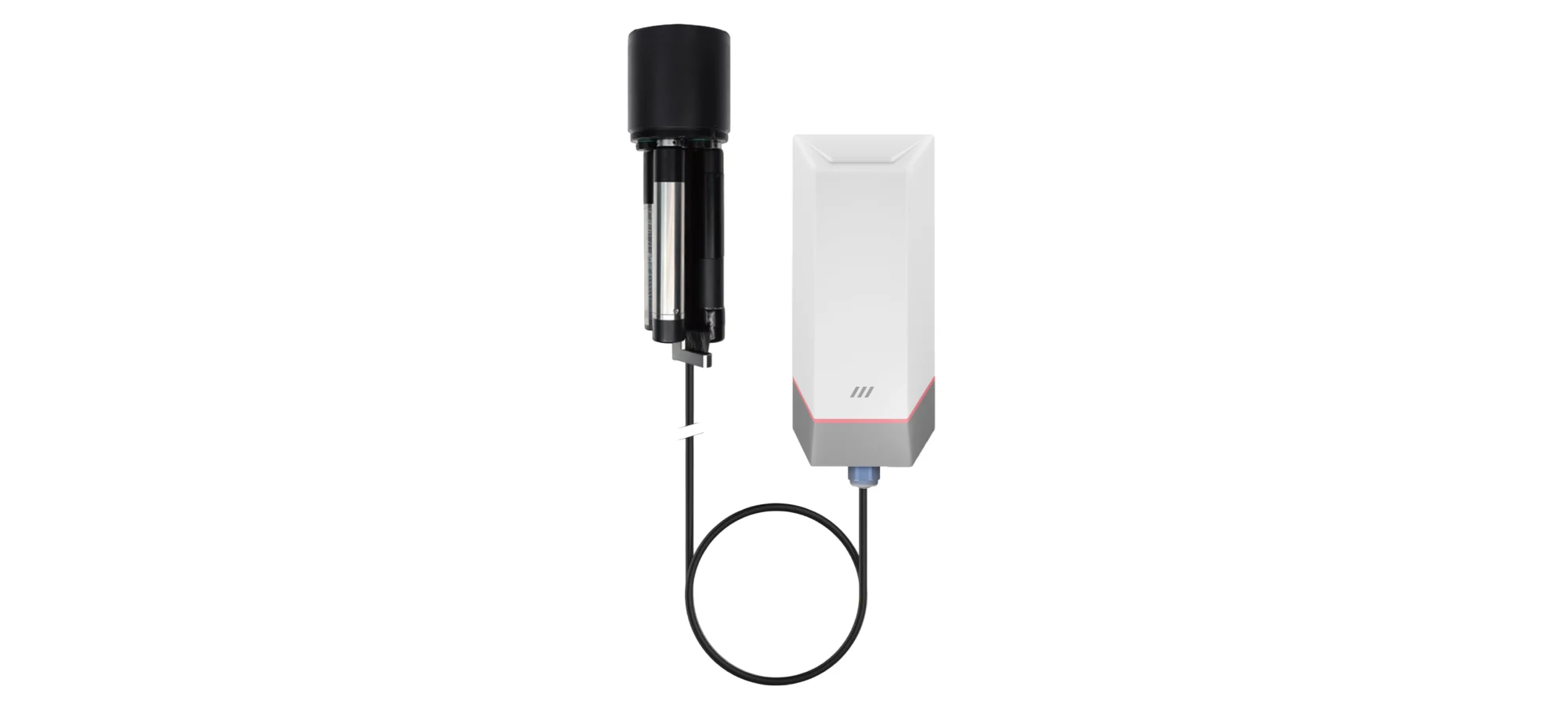

MacSync-LWQS8 is a multi-parameter water quality monitoring sensor designed for accurate, real-time environmental and industrial applications. It integrates up to 7 sensor probes—including Dissolved Oxygen, pH, ORP, Conductivity, Turbidity, Ammonia Nitrogen, & Temperature —within a compact and rugged enclosure.
With LoRaWAN® Class A & C communication, MacSync-LWQS8 enables remote monitoring in rivers, lakes, reservoirs, wastewater treatment plants, and aquaculture environments. Equipped with an automatic cleaning system, modular RS-485 digital sensors, and IP68 waterproof protection, it delivers reliable performance in long-term deployments.
Housed in a weatherproof IP68-rated enclosure and powered by a long-life battery, MacSync-LWQS8 is ideal for both remote and fixed installations. With support for LoRaWAN® Class A & C, the sensor ensures efficient wireless transmission and flexible uplink options for seamless integration into any monitoring system.
Configuration is simple and wireless using the Macnman Maya App over Bluetooth Low Energy (BLE). Users can quickly adjust thresholds, intervals, and review device data from their mobile phone—no technical expertise required.
Product Architecture
Download Center
Click here to download the full MacSync-LT1 technical datasheet .
Click here to view the decoders for MacSync-LWS6
Key Features of MacSync-LWQS8
High-Precision Multi-Parameter Sensors Integrates up to 7 probes to monitor parameters like DO, pH, ORP, EC, turbidity, ammonia nitrogen, and temperature.
Automatic Self-Cleaning Built-in cleaning brush ensures sensor probes stay clean—ideal for long-term deployments.
LoRaWAN® Class A & C Communication Enables low-power, long-range communication with flexible uplink modes.
IP68-Rated Enclosure Fully waterproof and designed to withstand harsh environmental conditions.
Battery Powered + Optional Solar Supports both high-capacity battery and solar panel for remote, off-grid operation.
Macnman Beam Protocol Allows P2P device-to-device control and fallback logic during network outages.
Secure Onboarding Ships with pre-flashed DevEUI / AppEUI / AppKey credentials for easy activation.
Smart Uplink Modes Offers periodic, threshold-based, and event-driven transmissions for optimized data usage.
BLE Support for Local Configuration Use Maya mobile app to configure and view live sensor data via Bluetooth.
Fully LoRaWAN® Compatible Works with TTN, ChirpStack, Helium, Loriot, and all major LoRaWAN® gateways and servers.
Where You Can Use MacSync-LWQS8?
Surface Water Monitoring 🌊 Monitor real-time water quality parameters in rivers, lakes, reservoirs, and catchment areas for environmental assessment and pollution tracking.
Wastewater Treatment Plants ♻️ Ensure compliance and process optimization in municipal and industrial wastewater systems by tracking ammonia, DO, turbidity, and pH levels.
Aquaculture and Fisheries 🐟 Monitor dissolved oxygen, temperature, and pH levels in aquaculture ponds or fish tanks to improve fish health and yield.
Industrial Discharge Compliance 🏭 Monitor effluent parameters before discharge into the environment to comply with environmental regulations.
Agricultural Runoff Management 🌾 Track nutrient levels and turbidity in agricultural drainage systems to prevent contamination of nearby water bodies.
Smart Water Quality Networks 🌐 Deploy across smart cities and IoT frameworks for centralized real-time tracking and predictive maintenance of water bodies.
Groundwater Monitoring ⛏️ Continuously assess groundwater health and potential contamination for early detection and resource management.
Hydrology and Research Labs 🧪 Ideal for researchers needing reliable, long-term water quality data in field deployments or controlled experiments.
MacSync-LWQS8 LoRaWAN Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacSync Power Operated (Standard) | 12–24 V (DC Power) | ✖️ | ✖️ | ✔️ | Industrial automation systems with constant power supply |
| MacSync Battery Operated | Battery | 19 Ah | ✖️ | ✔️ | Remote installations with limited power availability |
| MacSync Solar + Battery | Solar + Battery | 12 Ah | ✔️ | ✔️ | Off-grid field deployments for infrastructure and environment |
