MacSync CX1 Datasheet
Product Overview

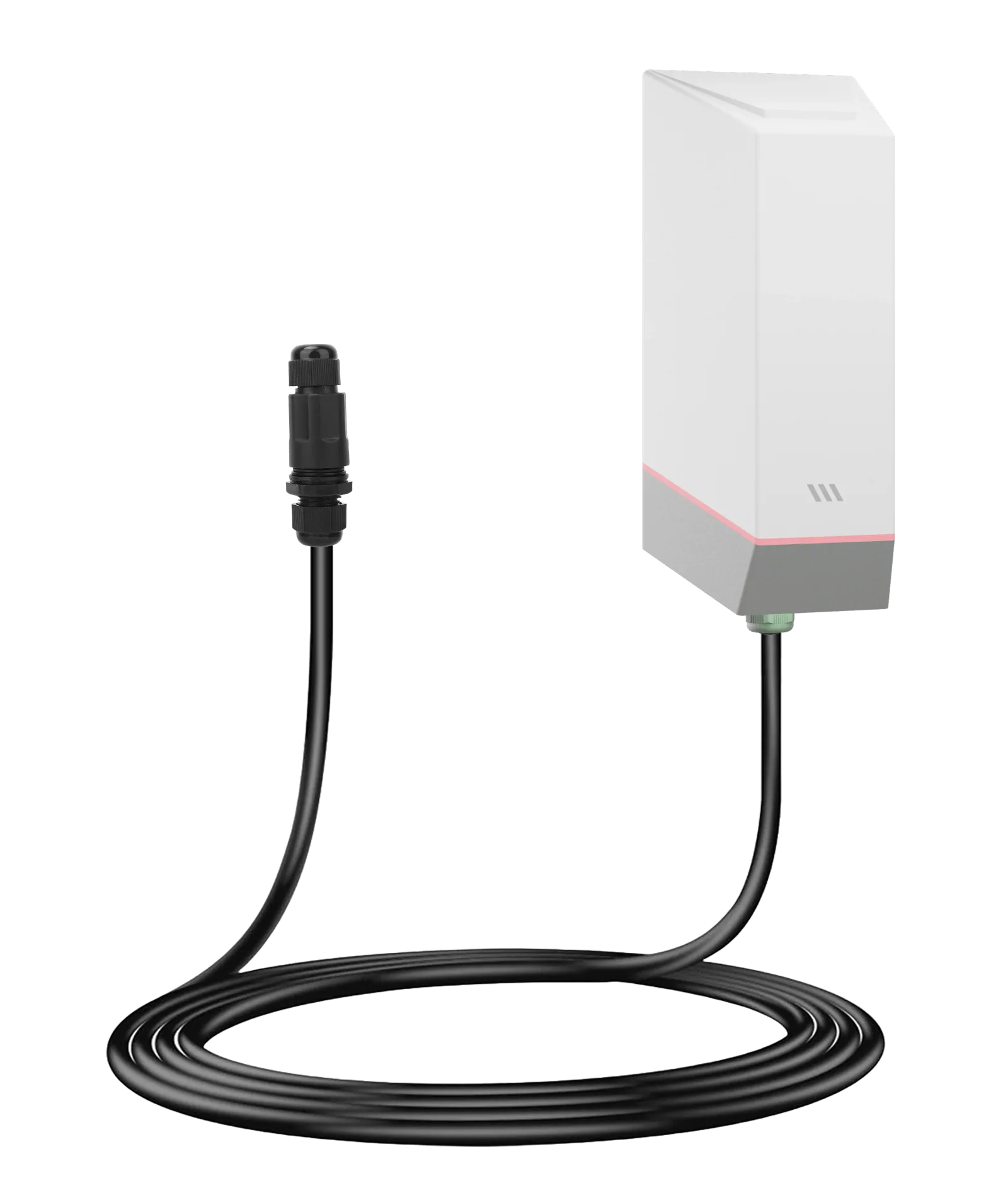

MacSync CX1 is an industrial-grade 4G LTE Cellular Data Logger designed to connect RS485 (Modbus RTU) and analog sensors (4–20 mA / 0–10 V) directly to the cloud for real-time monitoring and analytics. Built for demanding outdoor deployments, CX1 features a rugged enclosure, stable performance, and reliable cellular connectivity — making it ideal for remote industrial sites where Wi‑Fi or Ethernet is not available.
Powered by a wide 9–36 V DC input, MacSync CX1 is engineered for permanent installations in utilities, factories, water infrastructure, energy metering, and process monitoring systems. It supports multi-channel data acquisition, periodic and event-based reporting, and enables instant alerts for critical parameter changes.
With an in-house high-efficiency internal antenna and optimized low-noise RF design, CX1 ensures stable long-range connectivity in harsh environments. Whether you are monitoring pumps, pressure transmitters, flow meters, energy meters, or industrial machines — MacSync CX1 transforms field signals into cloud-ready data with industrial reliability.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacRay-LU4
Key Features
4G LTE Cellular Data Logger Direct-to-cloud connectivity for remote monitoring without Wi‑Fi, Ethernet, or gateway dependency.
RS485 (Modbus RTU) Integration Seamlessly connects with industrial PLCs, energy meters, flow meters, and smart instruments.
Analog Inputs (4–20 mA / 0–10 V) Supports industry-standard analog sensors such as pressure, level, flow, and temperature transmitters.
Wide Input Power (9–36 V DC) Designed for stable outdoor and industrial installations with wide-range DC power compatibility.
Outdoor Rugged Enclosure Built for harsh field environments with reliable performance in dust, heat, and moisture conditions.
In‑House High‑Efficiency Internal Antenna Optimized RF design ensures stable long-range cellular connectivity for remote deployments.
Smart Reporting & Alerts Supports periodic reporting and threshold-based alerts for critical parameter changes.
Off‑the‑Shelf Cloud Compatibility Works with AWS IoT Core, Azure IoT Hub, ThingsBoard, Ubidots, Datacake, TagoIO, Blynk, and custom cloud.
Local BLE Configuration Quick on-site setup and diagnostics using the Macnman Maya mobile app.
Secure & Reliable Data Delivery Supports encrypted communication and robust buffering strategies for dependable industrial telemetry.
Suited Applications
Smart Water Utilities Continuous level monitoring for underground water tanks, overhead tanks, reservoirs, and sumps.
Manhole & Sewer Level Monitoring Detect overflow risks, blockages, and sewer flooding in drainage networks.
Flood & Stormwater Monitoring Real-time alerts for rising levels in rivers, canals, storm drains, and flood-prone zones.
Industrial Wastewater Management Accurate level detection in effluent treatment plants, sludge pits, and chemical tanks.
Mining & Quarry Operations Level tracking in slurry pits, water sumps, and tailing dams for safety assurance.
Smart City Infrastructure Remote monitoring of drainage networks to prevent urban flooding and road closures.
Oil & Fuel Storage Tanks Level measurement for diesel storage, fuel stations, and industrial oil chambers.
Remote & Unmanned Locations Low-maintenance, long-range LoRaWAN® monitoring where wired installation is impractical.
Environmental Risk Monitoring Early warning for spill detections, groundwater rise, or hazardous waste overflow.
Technical Specification
General
Specifications
Part Order Number
MacSync-CX1
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
Available
RS485 Interface
1 (Switchable)
4-20 mA Analog Channels
x 2 (Switchable)
0-10 V Analog Channels
x 2 (Switchable)
Digital Inputs
x 2 (Switchable)
ADC Resolution
12-bit
The device use same channels for the RS485 & Analog inputs, either can be used at a time.
Wireless
Transmission
Communication Module
Quectel EC200 Series
Network Technology
4G LTE (Cat 1)
2G GSM (Fallback)
Supported LTE Bands*
B1 / B3 / B5 / B8 / B40 / B41 (Region dependent)
Supported GSM Bands*
900 / 1800 MHz
Tx Power
LTE: Up to +23 dBm
GSM: Up to +33 dBm
Receiver Sensitivity*
LTE: Up to -100 dBm (typical)
GSM: Up to -109 dBm (typical)
Cloud Protocols
MQTT / HTTPS
Antenna
External high-efficiency cellular antenna
SIM Support
Nano SIM
Data Transmission
Configurable reporting interval with event-based alerts
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Supported
Cloud Platforms
Supports Major Cloud Platforms
AWS IoT Core
Microsoft Azure IoT Hub
ThingsBoard
Ubidots
Datacake
TagoIO
Blynk
Custom Cloud via MQTT / HTTPS
Physical
Characteristics
Power Supply
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 to 250 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-128 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync CX1 Variants
| Variant Name | Power Source | Input Voltage | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacSync CX1 - PO | External Power | 9–36 V DC | ✖️ | ✔️ | Outdoor industrial installations with always-on cellular connectivity |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
MacSync CX1 Dimensions
