Smart HMIX1 Datasheet

Product Overview

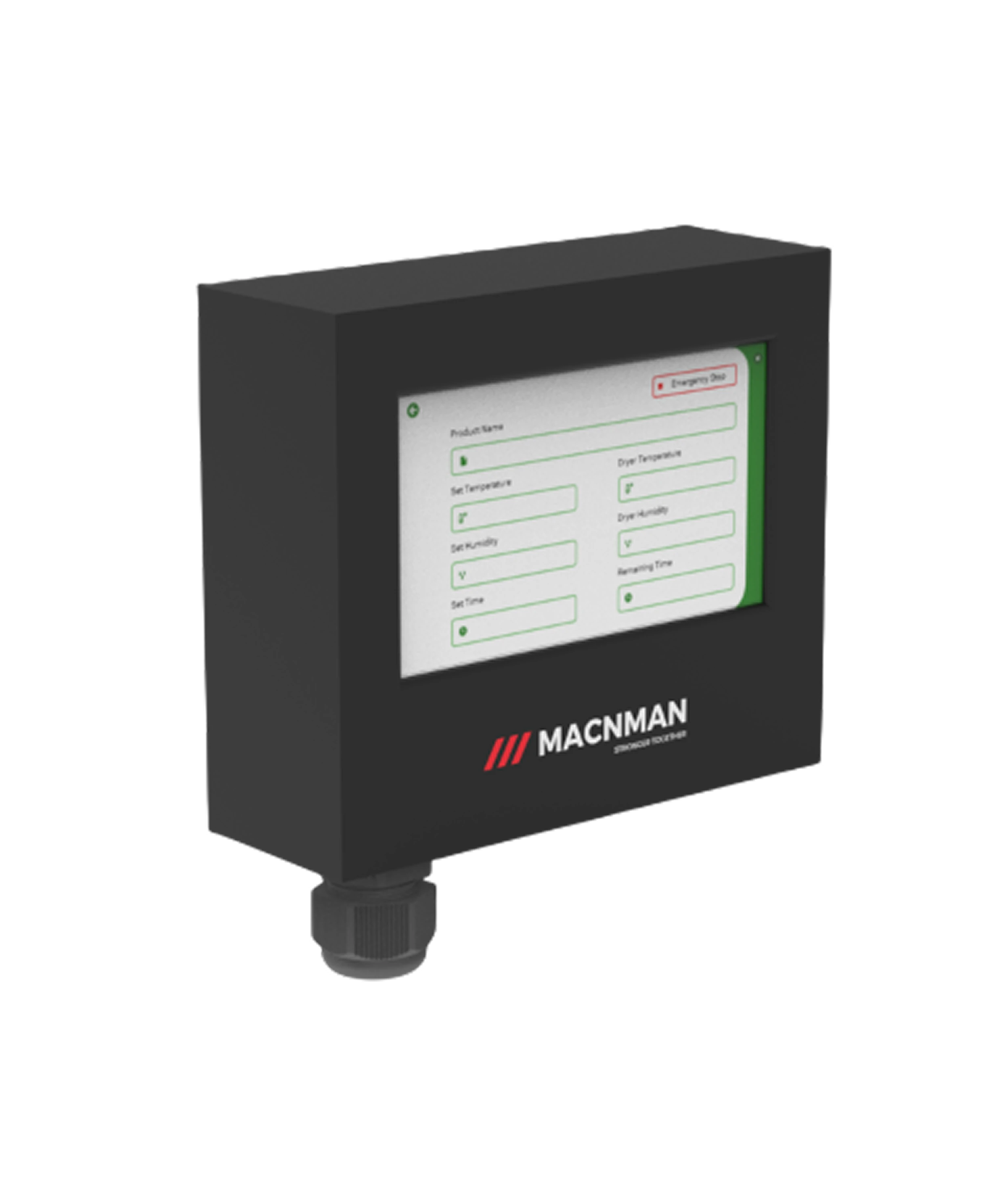

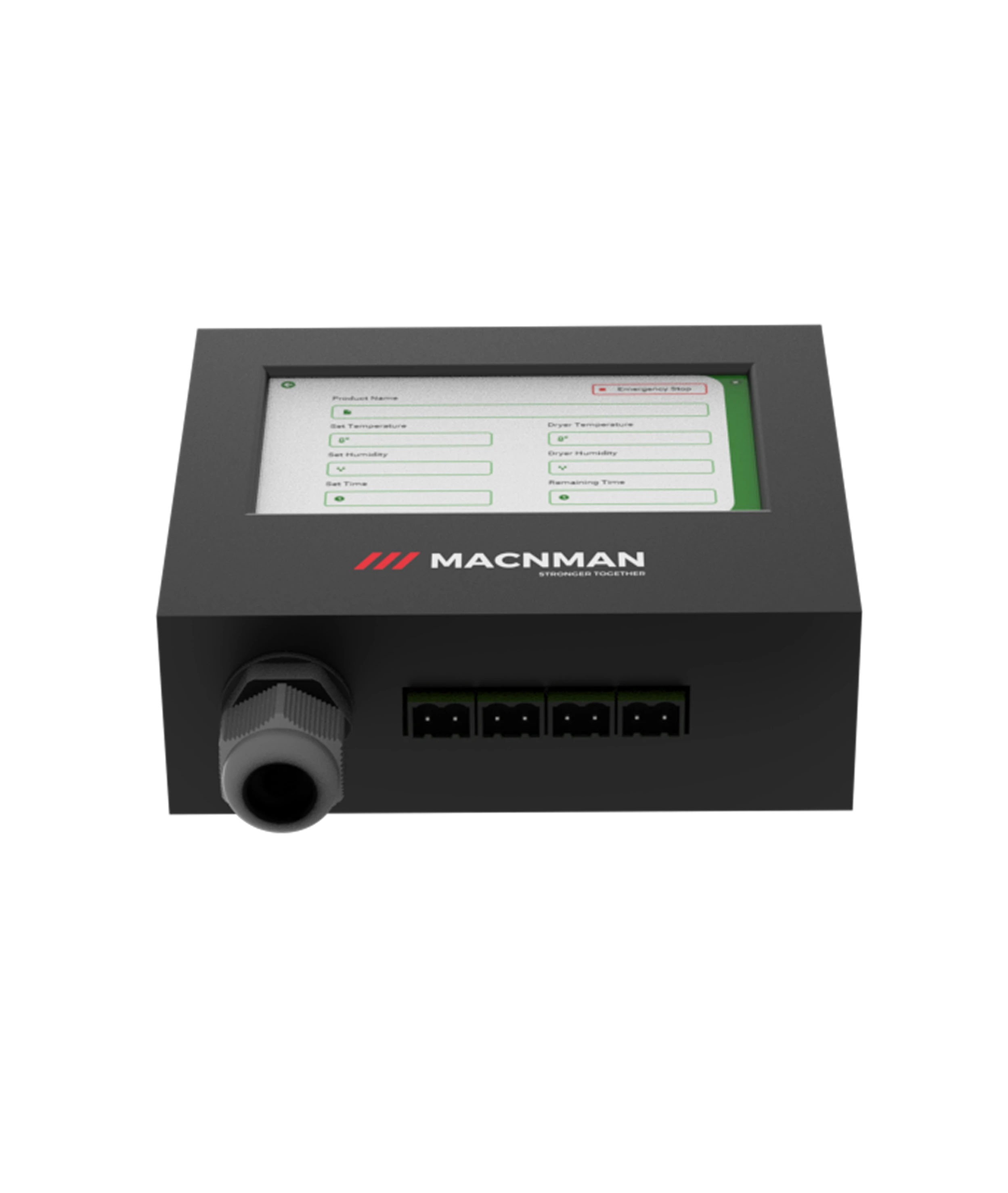

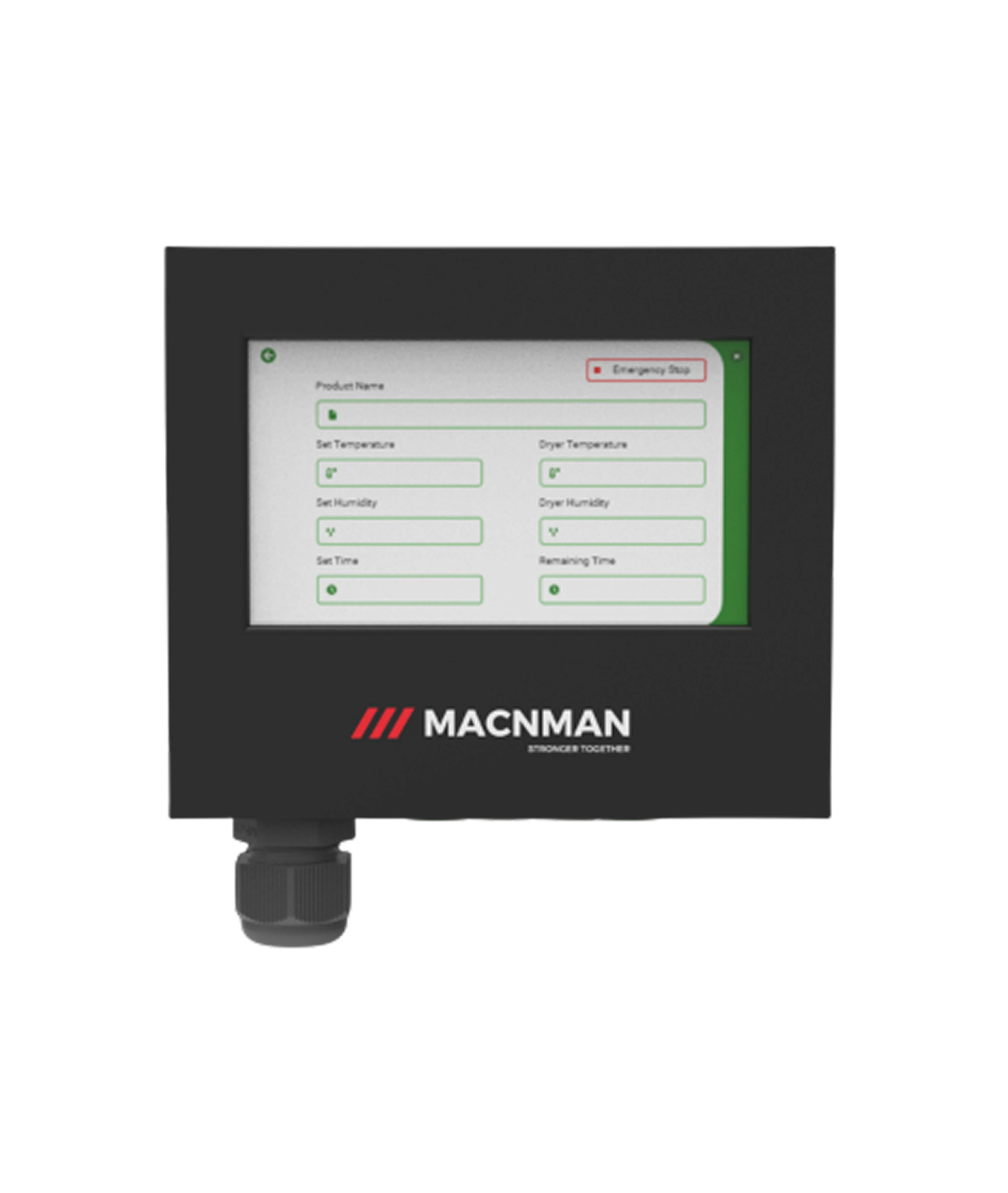

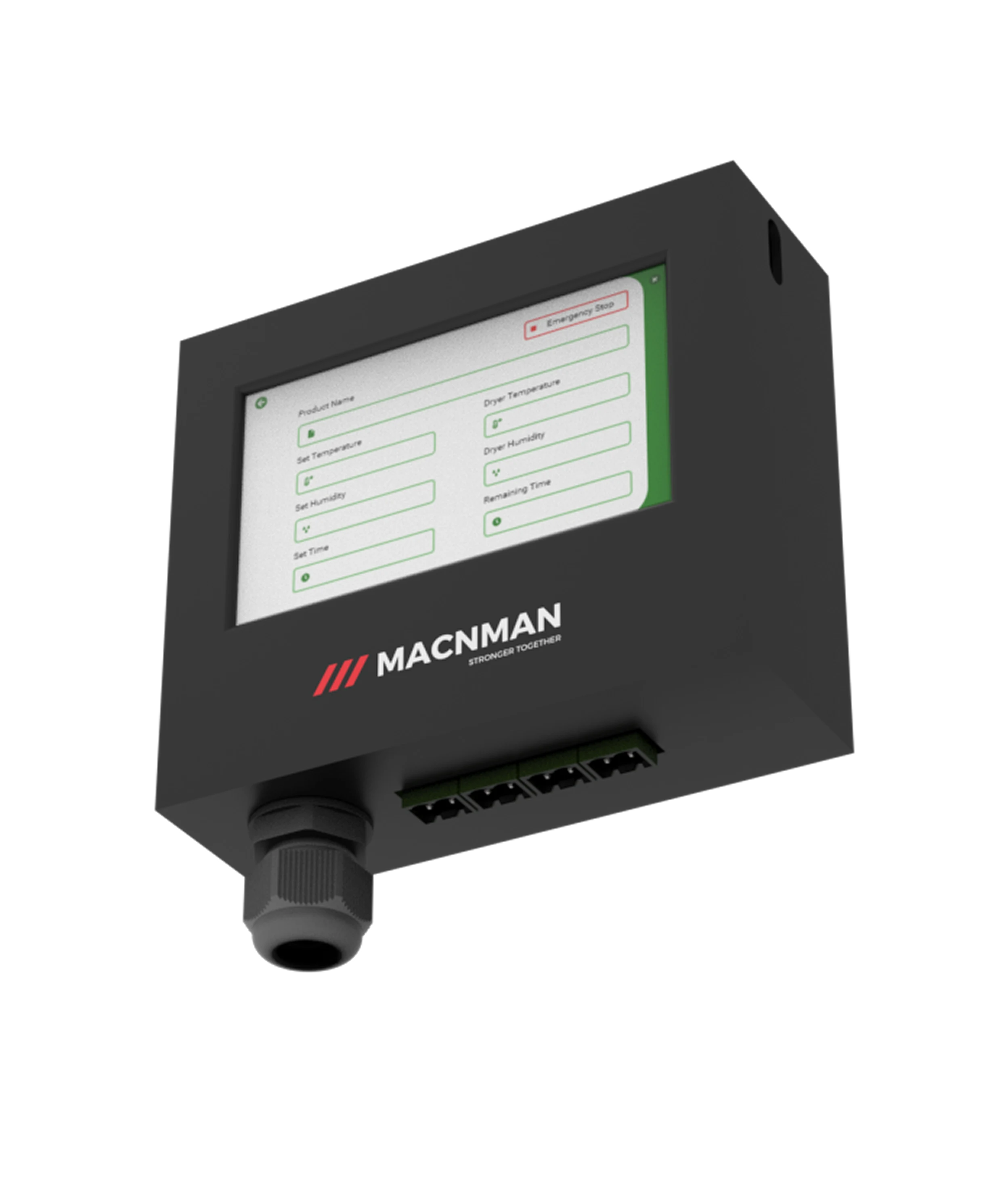

Smart HMIX1 is a Wi‑Fi and Bluetooth® Low Energy (BLE)–based industrial HMI controller with an integrated touchscreen, designed for machine monitoring, data acquisition, and edge‑level automation in industrial and commercial environments.

The controller features a rich set of I/O interfaces including 8 analog inputs, 8 digital inputs, 1 × RS‑485 interface, and 4 digital outputs, enabling seamless integration with sensors, meters, actuators, and legacy industrial equipment. This makes Smart HMIX1 an ideal choice for applications requiring real‑time data visualization, control logic execution, and local decision‑making.

With its intuitive touchscreen interface, users can monitor live signals, configure thresholds, trigger outputs, and visualize machine or process status directly on the device without relying on external HMIs or PLCs. Wi‑Fi connectivity enables cloud and local server integration, while BLE allows secure local commissioning, diagnostics, and maintenance.

Designed as an edge automation controller, Smart HMIX1 continues to operate independently once configured, ensuring reliable control even during network interruptions. Its compact, industrial‑ready design makes it suitable for smart factories, building automation systems, energy monitoring panels, and retrofit industrial control projects.

Smart HMIX1 bridges the gap between traditional control panels and modern Industrial IoT platforms by combining HMI, I/O control, and wireless connectivity into a single, scalable solution.

Download Center

📂

Download Datasheet

Download the PDF Version of the Datasheet .

📝

Firmware/SDK

Click here to view the decoders for IndiLoRa X

Key Features

Ultra‑Low Cost LoRa® Gateway Designed for cost‑sensitive IoT installations with compact coverage needs in smart buildings and commercial environments.

Wi‑Fi Backhaul Connectivity Cloud communication using Wi‑Fi no Ethernet wiring required for installation.

RS‑485 Modbus Output Support Direct interface with legacy PLCs, meters and BMS systems for simultaneous LoRa‑to‑wired integration.

Powered by nRF5340 MCU Dual‑core processing with secure and power‑efficient wireless communication.

Focused Single‑Channel LoRa® Operation Ideal for low‑density sensor networks inside controlled indoor areas.

Secure Communication AES‑128 data encryption and TLS‑based secure OTA firmware upgrades.

Plug‑and‑Play Deployment Zero‑touch provisioning using MacCloud for rapid installation by onsite technicians.

Quiet & Low‑Power Design Fanless architecture built for 24×7 uptime in noise‑sensitive environments.

Suited Applications

Small Smart Building Deployments Cost‑efficient indoor LoRa® coverage for energy monitoring, room comfort sensors and building automation in compact areas.

Commercial Retail Outlets Enables IoT connectivity for shelf monitoring, occupancy analytics and refrigeration compliance without wired infrastructure.

Warehouse & Storage Spaces Ideal for indoor asset tracking, stock environment monitoring and automated supply chain alerts.

Hospitals & Healthcare Rooms Adds secure connectivity for patient safety, air quality monitoring and equipment status without major installation work.

Apartments & Residential Smart Homes Facilitates LoRa®‑based water meters, energy monitoring and safety sensors for housing automation.

Legacy Industrial Machine Rooms Provides RS‑485 integration for PLCs and meters, bridging Industry 3.0 devices with modern IoT cloud systems.

Hotels & Hospitality Spaces Supports smart room solutions and maintenance alert systems without disturbing infrastructure aesthetics.

Data Center & IT Racks Perfect for localized monitoring of temperature, humidity and access conditions inside server environments.

Technical Specification

General
Specifications

Part Order Number

IndiLoRa X

Product Brand

Macnman Technologies Pvt Ltd

Hardware
Specifications

Processor Type

nRF5340 Dual‑Core Bluetooth® LE & LoRa Gateway MCU

Number of Cores

Dual‑Core (1× Application + 1× Network Core)

Clock Speed

128 MHz (Application Core) / 64 MHz (Network Core)

Memory Size

512 KB RAM

Memory Architecture

Low‑Power Multi‑Core Shared Memory Architecture

Internal Flash

1 MB On‑Chip Flash + External Flash Support

USB Port

Debug Interface (Bottom of Enclosure)

Connector Type

USB Type‑C

Interface Protection

Surge Protection Enabled

LoRa
Specifications

Compatibility

Macnman LoRa Nodes & Controllers

Supported Frequency Bands

IN865

Channel Support

Single‑Channel (1 × Uplink / 1 × Downlink)

Data‑Rate

Fixed Data‑Rate – No ADR (single‑channel limitation)

Tx Power

+23 dBm @ IN865/868 MHz    +20 dBm @ 915 MHz

Rx Sensitivity

Down to –136 dBm @ SF12, BW 125 kHz

Antenna Type

External High‑Efficiency LoRa Antenna

Device Capacity

Optimized for Localized Indoor Installations with Small Node Density

Native
RS485 Output

Interface Type

RS‑485 Half‑Duplex

Protocol

Modbus RTU (Slave Mode)

Baud Rates Supported

9600 / 19200 / 38400 / 57600 / 115200 bps (Configurable)

Data Format

8‑N‑1 (Default) / Configurable

Command Processing

Receives LoRa® sensor data and responds to host read commands via Modbus Holding Registers

Isolation

Built‑in surge and ESD protection for industrial environments

Connector

2‑Pin Terminal Block

Integration

Compatible with Industrial PLCs, BMS, HVAC Controllers and SCADA systems

Backhual
WiFi

Bands

2.4 GHz ISM Band

5 GHz ISM Band

Standards

IEEE 802.11 b/g/n, 802.3, 802.3u, 802.11e-compatible bursting

Modulation Schemes

BPSK, QPSK, 16 QAM, 64 QAM

Security

WEP, TKIP, AES, WPA, WPA2

Antenna

External Antenna Integrated in Enclosure

Backhual
Cellular Lte*

Cellular Bands

B1 / B3 / B5 / B7 / B8 / B20 / B28

Standards

3GPP LTE, IEEE 802.3, IEEE 802.3u, 802.11e-compatible bursting

Modulation Schemes

BPSK, QPSK, 16‑QAM, 64‑QAM

Security

WEP, TKIP, AES, WPA, WPA2

Antenna

Internal Antenna Integrated in Enclosure

Supported
Protocols

Supported Protocols

MQTT

HTTP

HTTPS

Physical
Characteristics

Power Supply

9-36 V PoE

Operating Temperature

-40°C to +80°C

Humidity Range

0% to 100% RH (non-condensing)

Ingress Protection

IP35

Housing Material

Aluminium

Color

Matte White

Weight

~120g

Mounting Options(Brackets)

Pole Mounting / Wall Mounting

Certifications &
Compliance

WPC

Compliant

RoHS

Conforms to RoHS directive

Security &
Encryption

Data Encryption

AES-128 end-to-end encryption

Authentication

OTAA activation modes (Nodes)

Firmware Protection

Secure boot and signed OTA updates

IndiLoRa X Variants

Variant Name	Power Source	Wifi	Ethernet	Cellular	Ideal For
IndiLoRa X1	12–24 V (Power)	✔️	✖️	✖️	Ideal for small indoor networks with stable Wi-Fi backhaul such as offices, retail stores and hospitality environments.
IndiLoRa X2	12–24 V (Power)	✔️	✖️	✔️	Designed for mission‑critical deployments where Ethernet, Wi‑Fi and LTE failover ensure uninterrupted connectivity in industrial and multi‑site facilities.

What's in the box ?

Make sure box contains following items before installations

note

Accessories must be purchased separately & may not be included in the box.

Product Dimensions
