MacEdge CX308 Datasheet

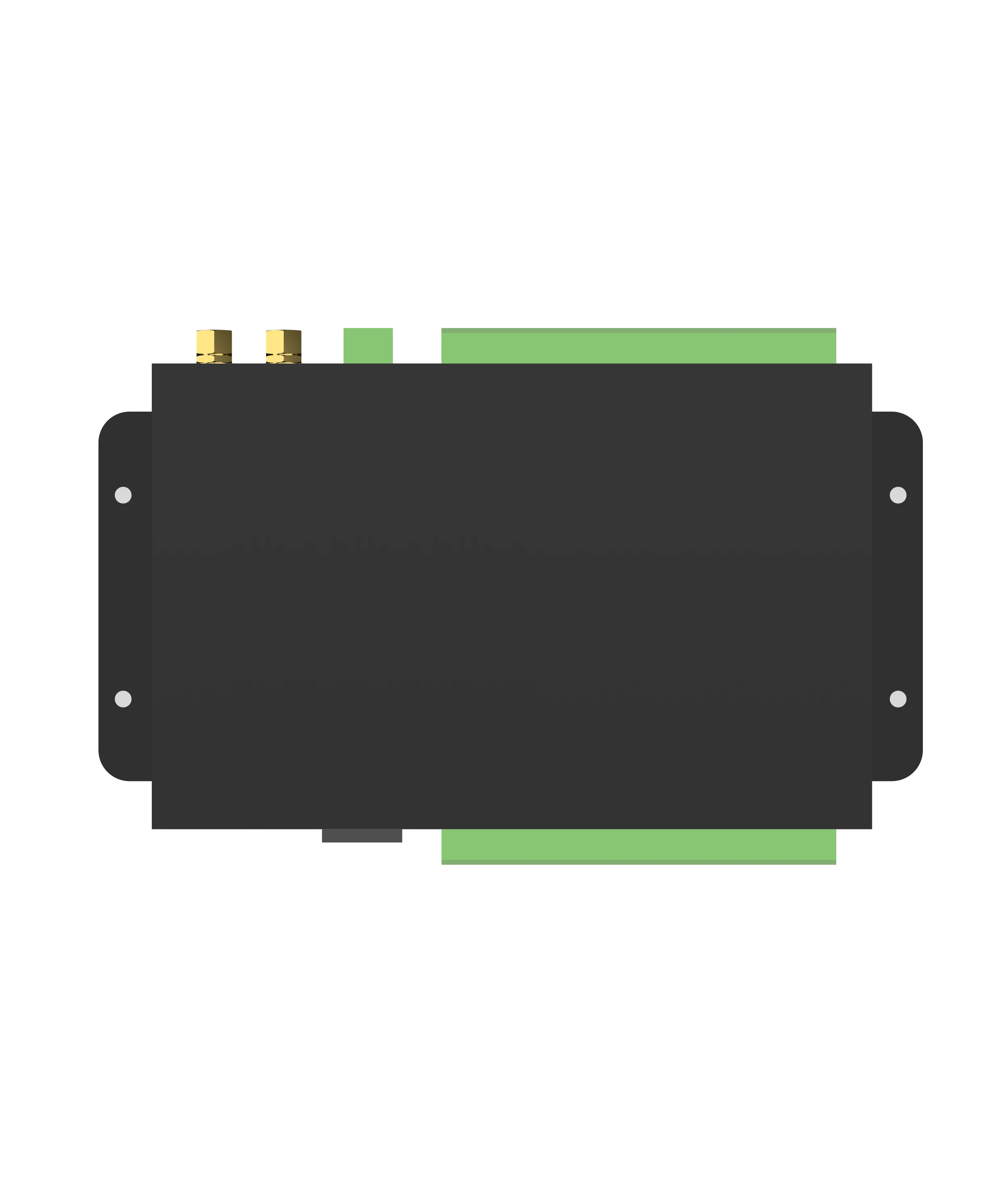

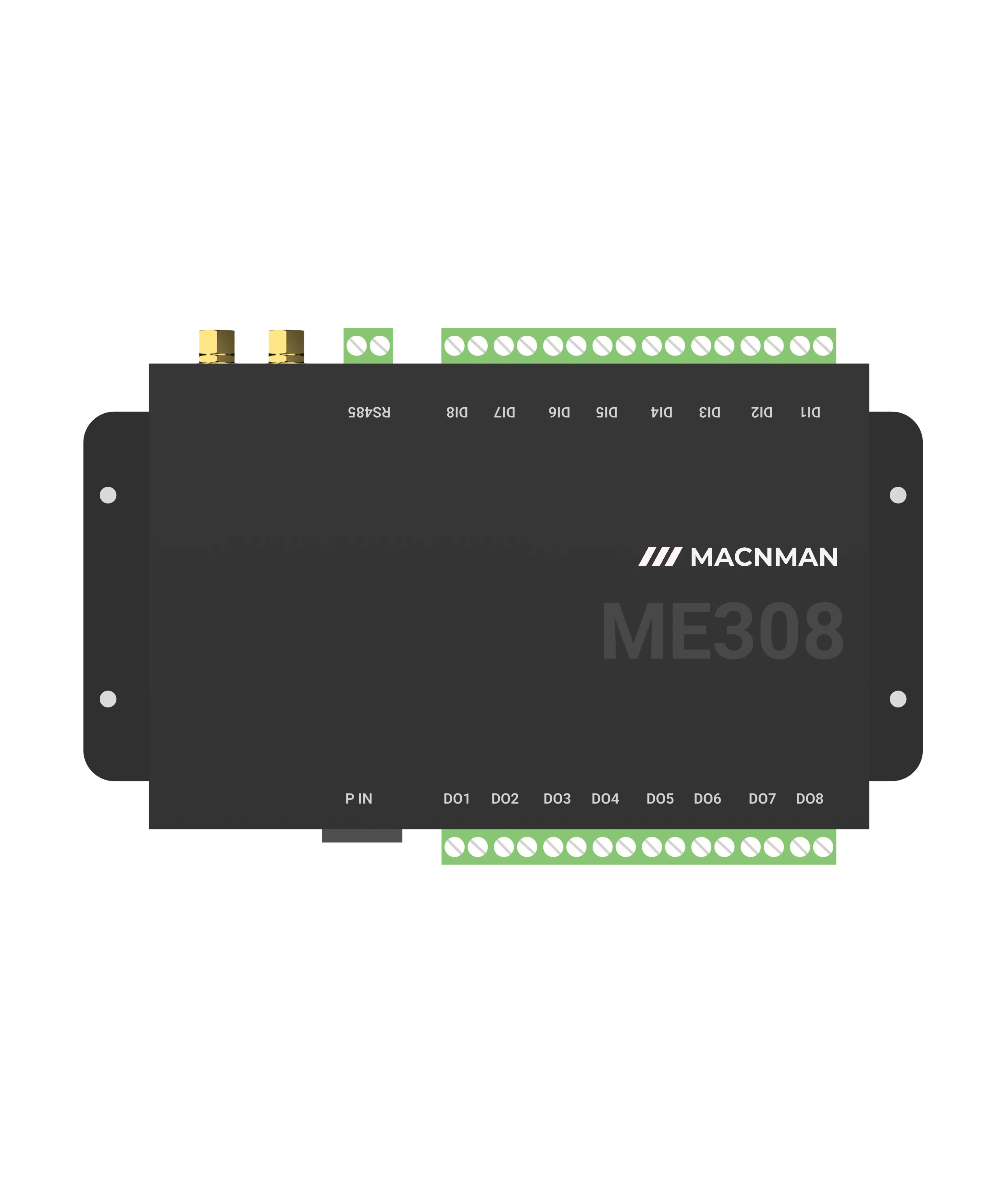

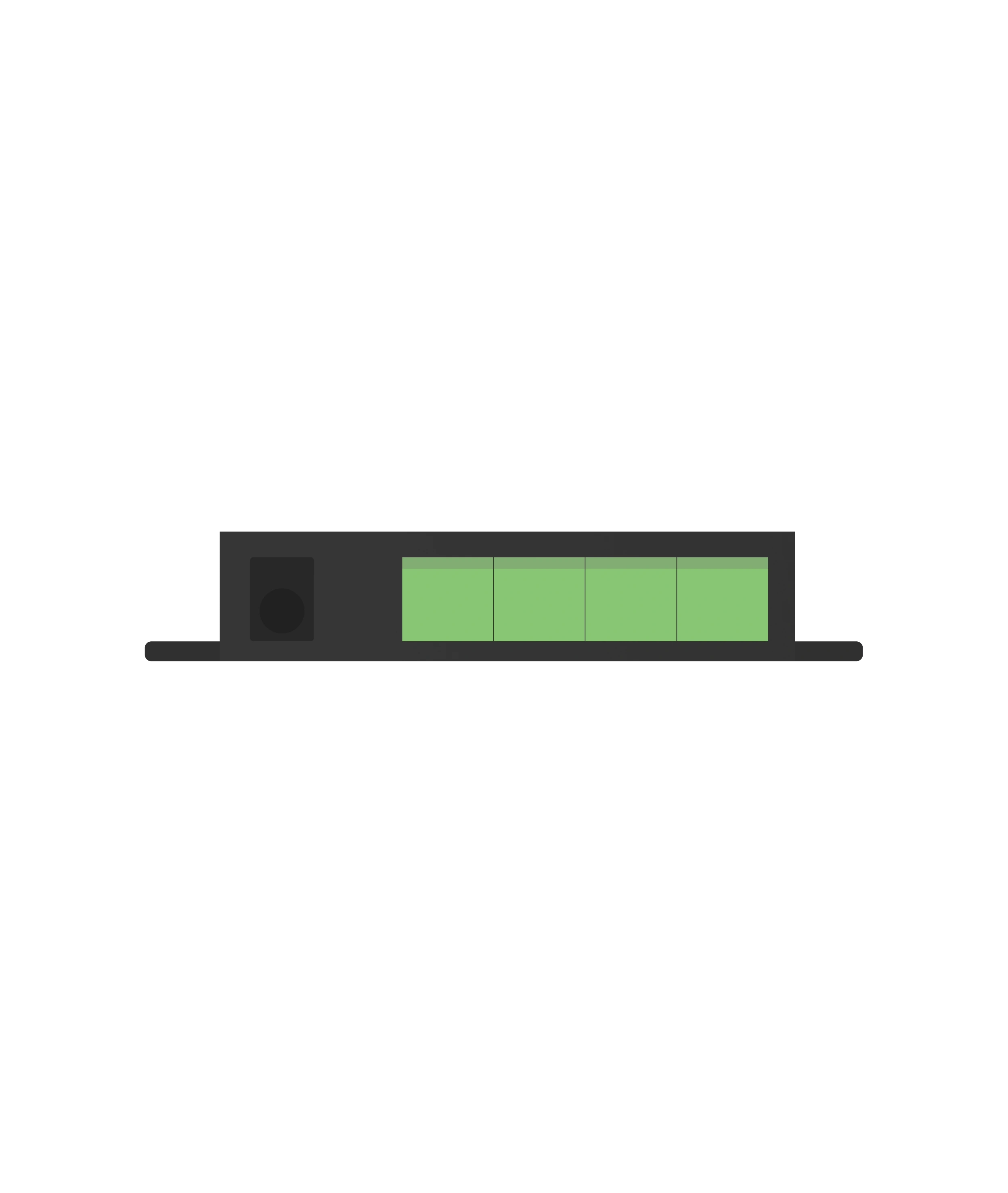

Product Overview
MacEdge CX308 is an industrial-grade Edge Gateway and Data Acquisition Controller designed to connect field sensors, industrial instruments, and automation equipment directly to the cloud and SCADA systems. Built for high I/O density and reliable industrial communication, CX308 combines Ethernet, RS485 (Modbus RTU), and multiple digital and analog I/O channels in a single rugged device — making it ideal for machine monitoring, process automation, and remote telemetry applications.
With 1 × Ethernet port, 1 × RS485, 8 × Digital Inputs (DI), 8 × Digital Outputs (DO), and 8 × Analog Inputs (AI), MacEdge CX308 can acquire data from a wide range of sensors and equipment such as energy meters, flow meters, pressure transmitters, motor panels, pumps, and industrial PLC systems. It supports real-time control through digital outputs and enables event-based automation for critical operations.
For distributed deployments, MacEdge CX308 offers optional 4G LTE cellular and Wi‑Fi connectivity, allowing stable data transmission even in remote sites where wired network access is unavailable. With edge intelligence capabilities, secure data delivery, and flexible cloud integration, MacEdge CX308 transforms industrial signals into actionable insights for smarter, faster, and more reliable operations.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacRay-LU4
Key Features
Industrial Edge Gateway & Controller Combines data acquisition and control in one device for industrial automation and monitoring.
Ethernet Connectivity Reliable wired communication for factory networks, SCADA systems, and on-premise deployments.
RS485 (Modbus RTU) Interface Seamless integration with PLCs, energy meters, flow meters, and industrial instruments.
8 Digital Inputs (DI) Monitor dry contacts, run status, fault signals, limit switches, and pulse outputs.
8 Digital Outputs (DO) Control relays, contactors, alarms, actuators, and remote switching applications.
8 Analog Inputs (AI) Supports industry-standard analog sensors such as pressure, level, flow, and temperature transmitters.
Optional 4G LTE Cellular Connectivity Enables remote deployment and cloud connectivity in sites without wired internet.
Optional Wi‑Fi Connectivity Flexible wireless installation for indoor facilities and local network connectivity.
Edge Logic & Event-Based Automation Supports smart triggers, schedules, and real-time actions based on input conditions.
Cloud & SCADA Ready Designed for secure data delivery to dashboards, analytics platforms, and industrial monitoring systems.
Secure Communication Supports encryption and authentication for reliable industrial telemetry.
Built for Industrial Deployments Rugged design for long-term operation in factories, utilities, and outdoor infrastructure sites.
Suited Applications
Industrial Automation & Machine Monitoring Capture machine run status, faults, and production signals using DI/AI and control outputs for automation actions.
SCADA Expansion & Remote Telemetry Extend SCADA systems to remote assets using Ethernet/RS485 and optional 4G connectivity.
Energy Metering & Power Monitoring Integrate with RS485 energy meters and panel signals for automated meter reading and consumption analytics.
Water & Wastewater Pump Stations Monitor pump status, pressure transmitters, and flow meters while controlling relays and alarms remotely.
Process Instrumentation (Analog Sensors) Connect 4–20 mA / 0–10 V transmitters for pressure, level, flow, and temperature process monitoring.
Factory Utilities & Compressor Rooms Track compressors, chillers, and utility equipment parameters for predictive maintenance and downtime reduction.
Smart Buildings & Facility Management Monitor utility signals, BMS sensors, and control devices like fans, lights, and alarms using DO outputs.
Remote Infrastructure Sites Ideal for telecom towers, remote panels, solar plants, and unmanned sites requiring reliable edge connectivity.
Environmental & Safety Systems Trigger alarms, ventilation, or safety relays based on sensor thresholds and event-based automation rules.
Technical Specification
General
Specifications
Part Order Number
MacEdge-CX308
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
Available
Ethernet*
1 × RJ45 (10/100 Mbps)
RS485 Interface
1 × RS485 (Modbus RTU)
Digital Inputs (DI)
8 Channels(Swichable)
Digital Outputs (DO)
8 Channels
Analog Inputs (AI)
8 Channels(Swichable)
Analog Input Types
4–20 mA / 0–10 V / Digital Input
Wireless
Transmission
Communication Module
Quectel EC200 Series
Network Technology
4G LTE (Cat 1)
2G GSM (Fallback)
Supported LTE Bands*
B1 / B3 / B5 / B8 / B40 / B41 (Region dependent)
Supported GSM Bands*
900 / 1800 MHz
Tx Power
LTE: Up to +23 dBm
GSM: Up to +33 dBm
Receiver Sensitivity*
LTE: Up to -100 dBm (typical)
GSM: Up to -109 dBm (typical)
Cloud Protocols
MQTT / HTTPS
Antenna
External high-efficiency cellular antenna
SIM Support
Nano SIM
Data Transmission
Configurable reporting interval with event-based alerts
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacEgde is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Supported
Cloud Platforms
Supports Major Cloud Platforms
AWS IoT Core
Microsoft Azure IoT Hub
ThingsBoard
Ubidots
Datacake
TagoIO
Blynk
Custom Cloud via MQTT / HTTPS
Physical
Characteristics
Power Supply
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 to 250 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-128 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacEdge CX308 Variants
| Variant Name | Connectivity | Ethernet | RS485 | Digital Inputs | Digital Outputs | Analog Inputs | Power Input | Ideal For |
|---|---|---|---|---|---|---|---|---|
| MacEdge CX308 - E | Ethernet | 1 | 1 | 8 | 8 | 8 | 9–36 V DC | On-premise SCADA and factory networks with wired connectivity |
| MacEdge CX308 - EW | Ethernet + Wi‑Fi | 1 | 1 | 8 | 8 | 8 | 9–36 V DC | Industrial sites requiring flexible wireless connectivity without SIM dependency |
| MacEdge CX308 - EL | Ethernet + 4G LTE | 1 | 1 | 8 | 8 | 8 | 9–36 V DC | Remote telemetry deployments where cellular connectivity is required |
| MacEdge CX308 - EWL | Ethernet + Wi‑Fi + 4G LTE | 1 | 1 | 8 | 8 | 8 | 9–36 V DC | Critical deployments needing both wired and wireless redundancy |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
