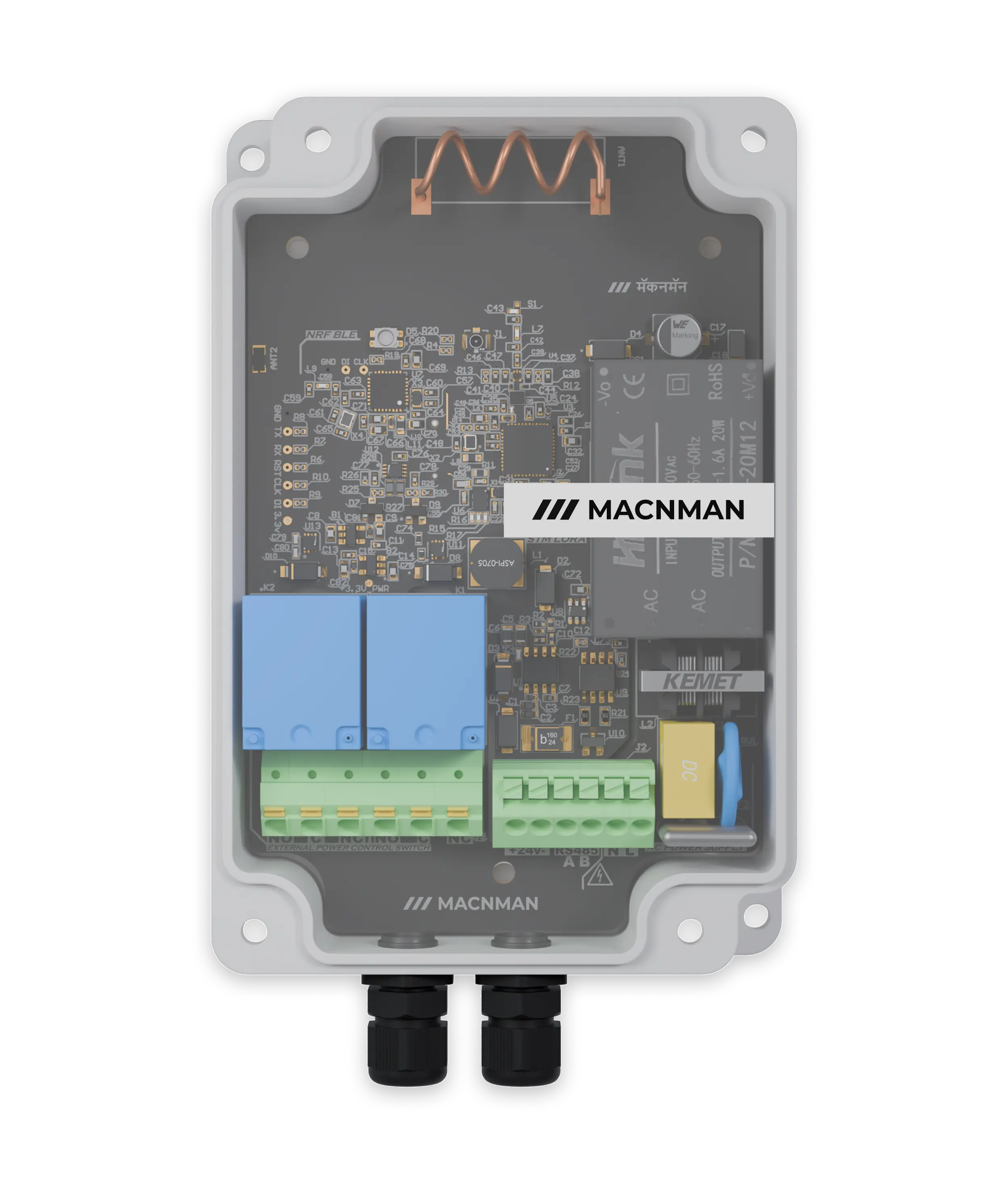

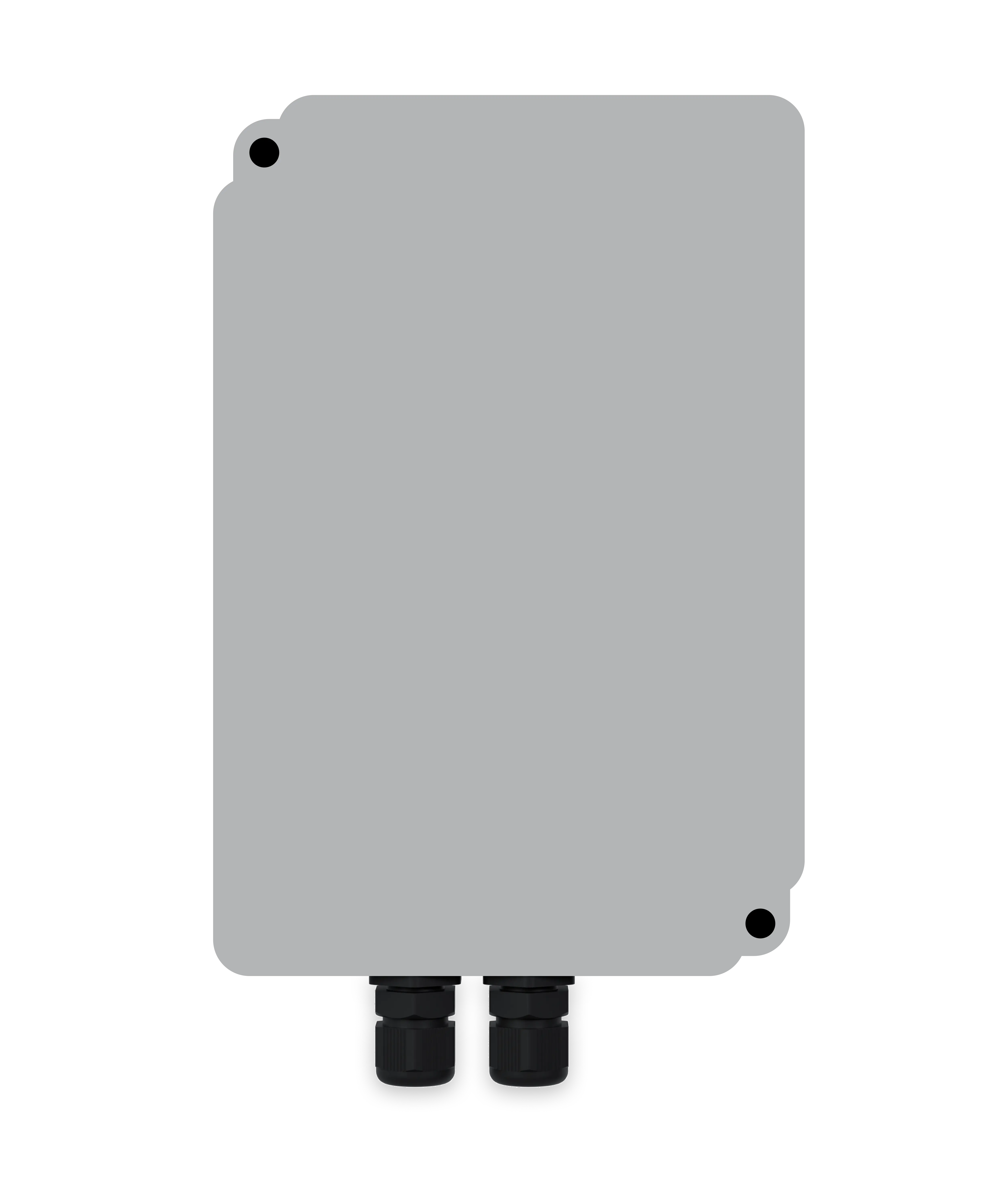

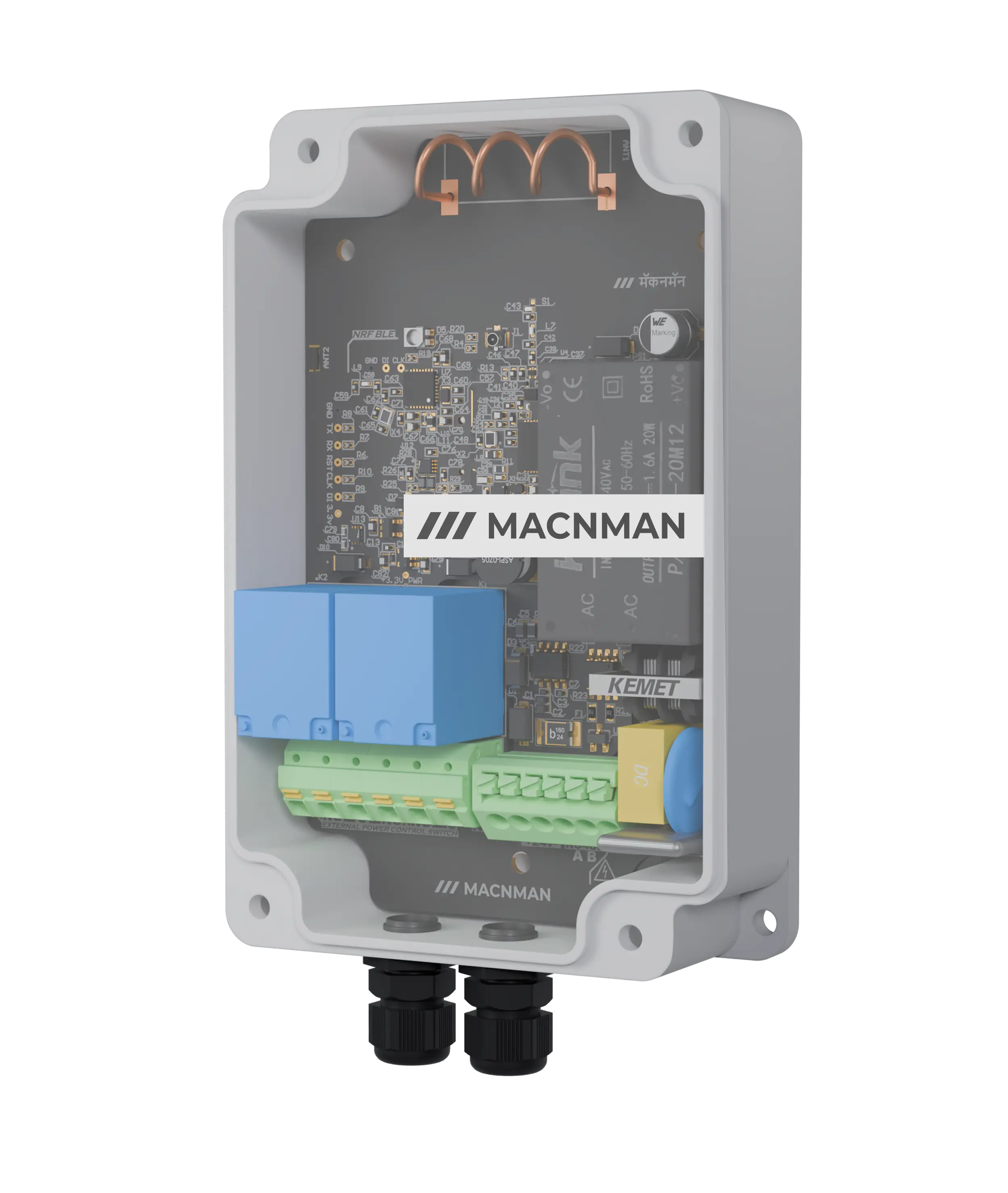

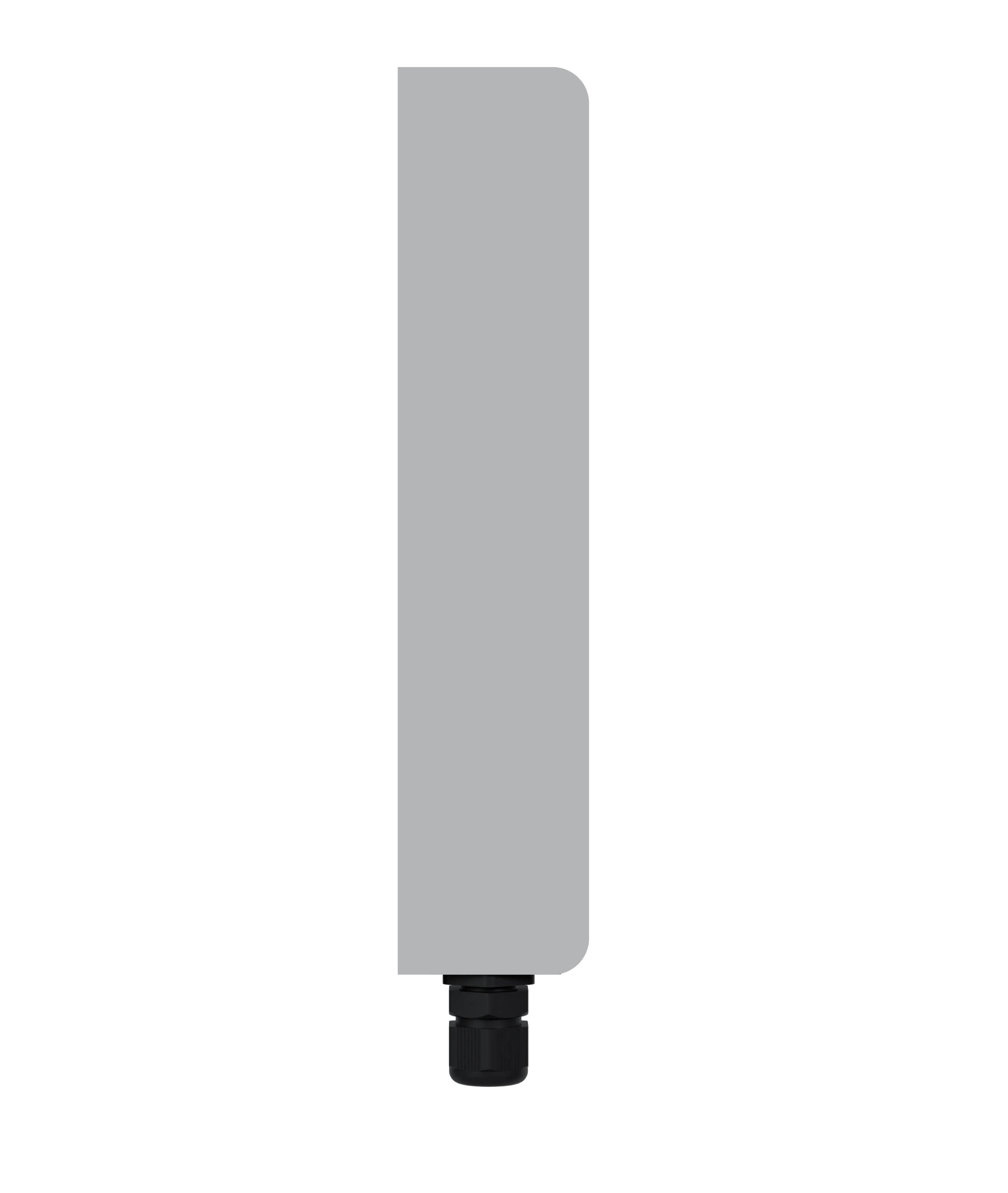

MacSet-LX1
Product Overview
MacSet-LX1 is a robust, power-operated LoRaWAN® controller designed for reliable remote control and automation of industrial and field equipment. Equipped with 2 high-current digital outputs, it enables secure wireless switching of pumps, motors, valves, alarms, solenoids, lighting systems, and other electrical loads through any LoRaWAN network.
Engineered for demanding industrial environments, the MacSet-LX1 features a stable 12–24 V DC power architecture, noise-immune circuitry, and an IP66-rated enclosure suitable for outdoor and harsh conditions. Its long-range LoRaWAN® radio ensures strong performance across large farms, industrial plants, buildings, and remote infrastructure sites.
The device supports LoRaWAN® v1.0.4, Class A & C, the Macnman MacTalk Protocol, and OTA configuration via BLE using the Maya App, enabling fast deployment and flexible control logic. The controller also supports local automation, enabling direct device-to-device actions without requiring cloud access.
Whether used for smart agriculture, industrial automation, water management, or remote asset control, MacSet-LX1 provides a powerful, scalable, and future-proof solution for wireless switching and automation across any LoRaWAN-based system.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-LX2-STD-PO
Key Features
Dual High-Current Digital Outputs Enables remote switching of pumps, motors, solenoids, alarms, and lighting loads.
Industrial 12–24 V Power Operation Stable, noise-immune power input designed for factories and field installations.
LoRaWAN® v1.0.4 Controller Long-range wireless control using standard LoRaWAN networks and servers.
Supports Class A & Class C Modes Choose low-power command reception or always-on fast-response control.
Local Automation Logic Execute actions based on triggers, timers, or inputs—without cloud dependency.
Macnman MacTalk Protocol Enables peer-to-peer LoRa control between devices without requiring a gateway.
Secure Remote Switching Uses encrypted LoRaWAN payloads for reliable and safe equipment control.
BLE Configuration via Maya App Quick on-site setup, testing, and diagnostics using Bluetooth Low Energy.
IP66 Industrial-Grade Enclosure Rugged design suitable for outdoor, dusty, and moisture-prone environments.
Event-Based Actuation Trigger outputs based on network commands, scheduled uplinks, or device rules.
Fail-Safe Output Handling Supports power-restore behavior, default states, and safe automation routines.
Firmware OTA-Ready Future upgrades, improvements, and feature releases supported over BLE.
Compatible with All LoRaWAN® Servers Integrates seamlessly with ChirpStack, The Things Stack, Actility, Everynet, and more.
Suited Applications
Smart Agriculture & Irrigation Remotely control irrigation pumps, valves, solenoids, and fertigation systems using LoRaWAN commands.
Water & Wastewater Management Operate pumps, blowers, aerators, chlorination units, and valve actuators at remote water sites.
Industrial Automation Switch motors, relays, contactors, alarms, and machinery as part of factory automation workflows.
Smart Buildings & Facilities Control lighting circuits, exhaust fans, access gates, HVAC auxiliary systems, and building utilities.
Solar & Energy Systems Remotely activate inverter controls, battery bank relays, or system bypass/switching mechanisms.
Remote Infrastructure Control Manage field devices such as telecom tower equipment, remote panels, and unmanned site actuators.
Cold Storage & Food Industry Switch compressors, fans, alarms, and standby systems using secure long-range LoRaWAN control.
Pipeline & Industrial Utility Networks Control valves, pumps, pressure release actuators, and emergency shutoff systems through LoRaWAN.
Smart City Deployments Operate sirens, public lighting, fountains, signage, and remote utility controllers wirelessly.
Environmental Monitoring Systems Trigger fans, blowers, alarms, or auxiliary devices based on sensor-driven automation rules.
Technical Specification
General
Specifications
Part Order Number
MacSet LX1
Product Brand
Macnman Technologies Pvt Ltd
Interfaces
Available
High Current Relay Outputs
x2 @16 Amps
RS485 Interface
1 (Switchable)
4-20 mA Analog Channels
x 2 (Switchable)
0-10 V Analog Channels
x 2 (Switchable)
Digital Inputs
x 2 (Switchable)
ADC Resolution
12-bit
The device use same channels for the RS485 & Analog inputs, either can be used at a time.
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
External antenna optional
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSet-LX1 is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Remote Configuration
JSON Format Data - from server
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-LX2-STD-PO Variants
| Variant Name | Power Source | Relay Outputs | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacSet LX1 | 12–24 V (Power) | 2 | ✖️ | ✖️ | Controlling Industrial or commercial sites with stable power supply |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
Accessories must be purchased separately & may not be included in the box.
