MacLink Gen-2 Datasheet
Product Overview
MacLink Gen-2 is a carrier-grade industrial outdoor LoRaWAN® gateway engineered for ultra-long-range connectivity, high network capacity, and mission-critical performance in harsh environments. Built with a high-sensitivity 8-channel LoRaWAN® concentrator, edge-intelligent packet filtering, and rugged IP67 housing, it establishes a reliable wireless infrastructure for large-scale Smart Cities, Utilities, Industrial Automation, Agriculture, and Environmental Monitoring deployments.
With 4G/LTE + Ethernet + Wi-Fi backhaul, built-in GPS for gateway positioning, surge-protected RF front-end, and advanced interference immunity, MacLink Gen-2 ensures uninterrupted operation in extreme weather, remote locations, and RF-challenging sites.
Multi-layer AES-128 + TLS secured communication, remote OTA firmware upgrades, and centralized management via Macnman’s MacCloud (or any LoRaWAN® Network Server) deliver a flexible and future-proof IoT network backbone. Optional solar-power support and edge buffering guarantee zero data loss and smooth connectivity even during network outages.
Whether connecting thousands of sensors across water utilities, industrial plants, street-lighting networks, smart campuses, or wildlife monitoring systems — MacLink Gen-2 provides a powerful, scalable, and secure LoRaWAN® access point that bridges remote field assets to the cloud, enabling true Industry 4.0 and Smart City growth.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacLink Gen-2
Key Features
Industrial Outdoor Gateway Rugged IP67 enclosure with lightning protection designed for extreme weather conditions.
8‑Channel High‑Capacity LoRaWAN® Supports thousands of end‑devices with long‑range, high‑sensitivity RF performance.
Multi‑Backhaul Connectivity Ethernet + 2 X 4G/LTE + Wi‑Fi options for reliable network redundancy and flexible deployment.
Secure Encryption & Authentication AES‑128 & TLS secured communication for carrier‑grade data protection.
GPS for Gateway Positioning Built‑in GPS for network server placement, geofencing & triangulation.
Edge Intelligence Adaptive packet filtering & buffering to prevent data loss during backhaul outages.
OTA Firmware & Configuration Fully remote updates & management via MacCloud and popular LNS platforms.
Flexible Power Options Supports PoE and DC input with optional solar integration for remote sites.
Smart City Ready Ideal for street lighting, utilities, water networks & environmental monitoring.
All‑Network Server Compatibility Works with Chirpstack, TTN, Loriot, Orbiwise, Actility & private LoRaWAN® servers.
Suited Applications
Smart Cities Reliable LoRaWAN® backbone for street lighting, waste management and environmental monitoring networks.
Water & Utility Networks Scalable connectivity for water meters, pumping stations, distribution lines and leak detection systems.
Industrial Automation & Process Plants High‑capacity gateway for remote asset monitoring, predictive maintenance and energy optimization.
Oil, Gas & Energy Infrastructure Secure wireless coverage for substations, wind farms, pipelines and hazardous remote assets.
Agriculture & Irrigation Systems Long‑range coverage for farms, irrigation controllers, soil sensors and livestock monitoring.
Transportation & Smart Logistics Gateway connectivity for fleet tracking, parking systems and authorized zone access control.
Mining & Harsh Locations Reliable communication in high‑dust, high‑vibration and deep‑coverage environments.
Campuses & Smart Buildings Connectivity hub for wide‑area automation, indoor‑outdoor coverage and security monitoring.
Remote & Off‑Grid Deployments Solar‑powered network edge nodes for unmanned sites, wildlife zones and rural connectivity.
Technical Specification
General
Specifications
Part Order Number
MacLink Gen-2
Product Brand
Macnman Technologies Pvt Ltd
System Hardware
Specifications
Processor Type
ARM Cortex-A7
Number of Cores
Quad Core
Clock Speed
960 MHz per Core
Memory Size
512 MB RAM
Memory Speed
Up to 1066 MHz
Internal Storage
8 GB eMMC
USB Port
Debug Interface (Bottom of Enclosure)
Connector Type
USB Type‑C
Interface Protection
Surge Protection Enabled
LoRaWAN
Specifications
Compatibility
LoRaWAN® Class A / B / C
Frequency Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923‑1/2/3/4
LoRa Demodulators
8 × 8 LoRa Packet Detectors
Demodulation Paths
Up to 10 Parallel Paths
Uplink Channels
8 Channels
Downlink Channel
1 Channel
Tx Power
Up to 27 dBm @ SF12, BW 125 kHz
Rx Sensitivity
Down to ‑139 dBm @ SF12, BW 125 kHz
Data‑Rate
Adaptive Data‑Rate (ADR)
Backhual
Ethernet
Number of Ports
x 1
Type
1 x 10/100M
Backhual
WiFi
Bands
2.4 GHz ISM Band
Standards
IEEE 802.11 b/g/n, 802.3, 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16 QAM, 64 QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Backhual
Cellular Lte
Cellular Bands
B1 / B3 / B5 / B7 / B8 / B20 / B28
Standards
3GPP LTE, IEEE 802.3, IEEE 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16‑QAM, 64‑QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations Through TCP/IP
Physical
Characteristics
Power Supply
9-36 V PoE
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP67
Housing Material
Aluminium
Color
Matte White
Weight
~410g

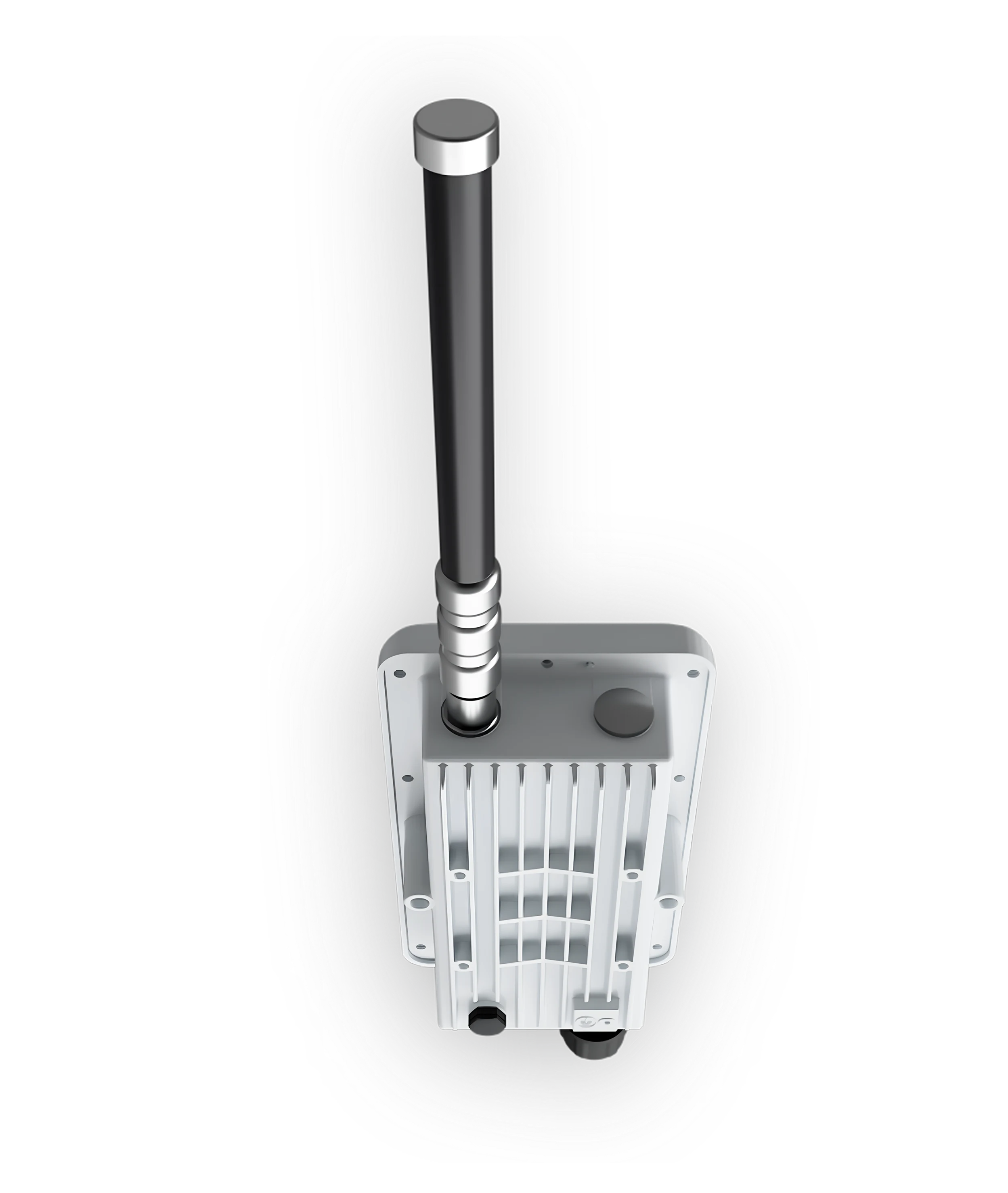

Mounting Options(Brackets)
Pole Mounting / Wall Mounting
Electrical
Characteristics
Power Input
PoE IEEE 802.3af / 802.3at or 12–24 V DC
Power Consumption (Typical)
4.5 W (with Ethernet Backhaul)
Power Consumption (Peak)
Up to 7 W (with LTE & Wi‑Fi Active)
Lightning / Surge Protection
Integrated surge protection on power & RF ports
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes (Nodes)
Firmware Protection
Secure boot and signed OTA updates
MacLink Gen-2 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacLink Gen-2-PO | 12–24 V (Power) | ✖️ | ✖️ | ✖️ | Industrial or commercial sites with stable power supply |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
