FireGaurd Gen 1 Datasheet
Product Overview

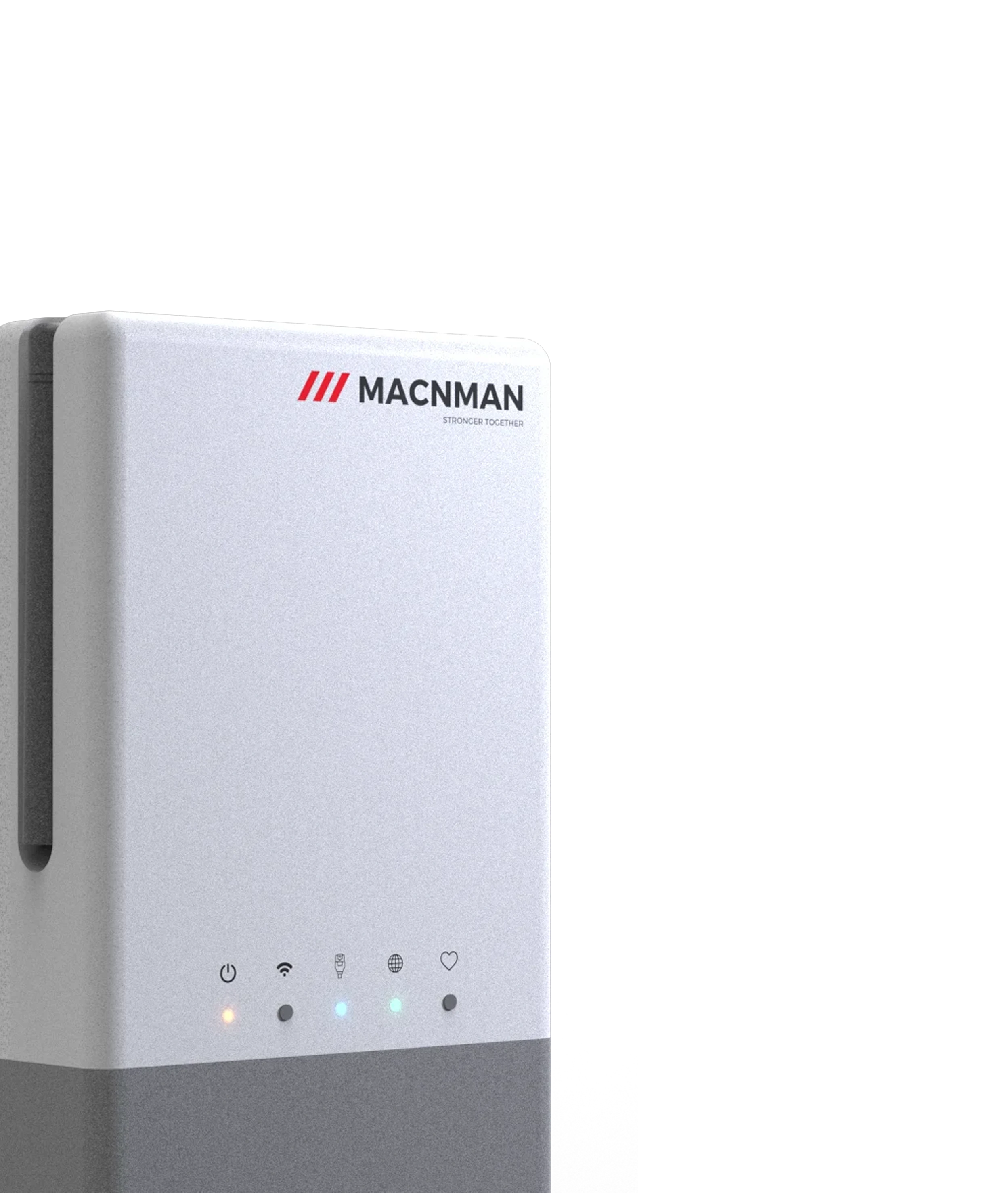

FireGaurd Gen 1 is a smart Fire Equipment Health Monitoring Controller designed to ensure that building fire protection systems are always ready to operate during emergencies. Instead of monitoring environmental fire events, FireGaurd Gen 1 continuously tracks the operational status, health, and alert conditions of critical fire‑fighting equipment installed inside commercial and industrial infrastructure.
It supports eight fire‑safety sensor inputs over UART, I²C, and RS‑485, enabling seamless connectivity with equipment such as fire hydrants, sprinkler pumps, water tank level sensors, pressure transmitters, fire extinguisher health sensors, fire door status modules, and power backup supervision units.
With four Digital Outputs, FireGaurd Gen 1 can trigger fire pumps, sirens, emergency exhausts, or fire door releases — allowing automated responses and onsite control signals through BMS or SCADA integration.
Data can be delivered securely to Fire Panels, BMS systems, or cloud analytics platforms, ensuring real‑time alerts for malfunctions, abnormal pressure drops, disconnections, and preventive maintenance conditions.
Whether supporting fire compliance, safety inspections, emergency readiness, or remote monitoring operations — FireGaurd Gen 1 brings Industry‑grade intelligence, automation, and reliability to building fire safety systems.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for FireGaurd Gen 1
Key Features
Fire Equipment Health Monitoring Constant supervision of critical fire‑fighting systems such as pumps, hydrants, extinguishers, fire doors, and water storage levels.
8 Multi‑Protocol Sensor Interfaces Supports UART, I²C, and RS‑485 sensors for seamless integration with diverse fire protection peripherals.

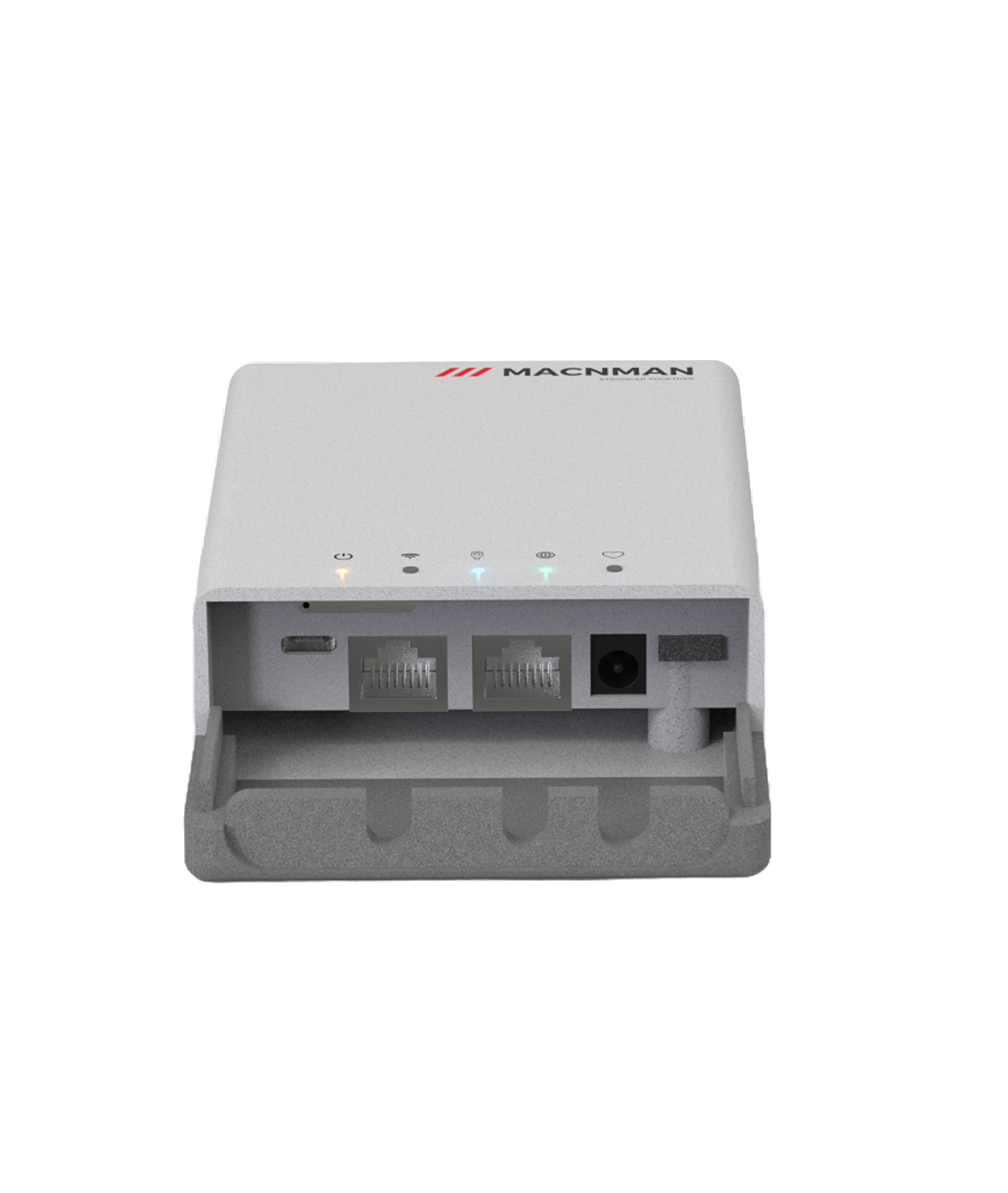

4 Digital Outputs for Automation Capable of triggering fire pumps, sirens, exhaust fans, and door release mechanisms during emergency events.

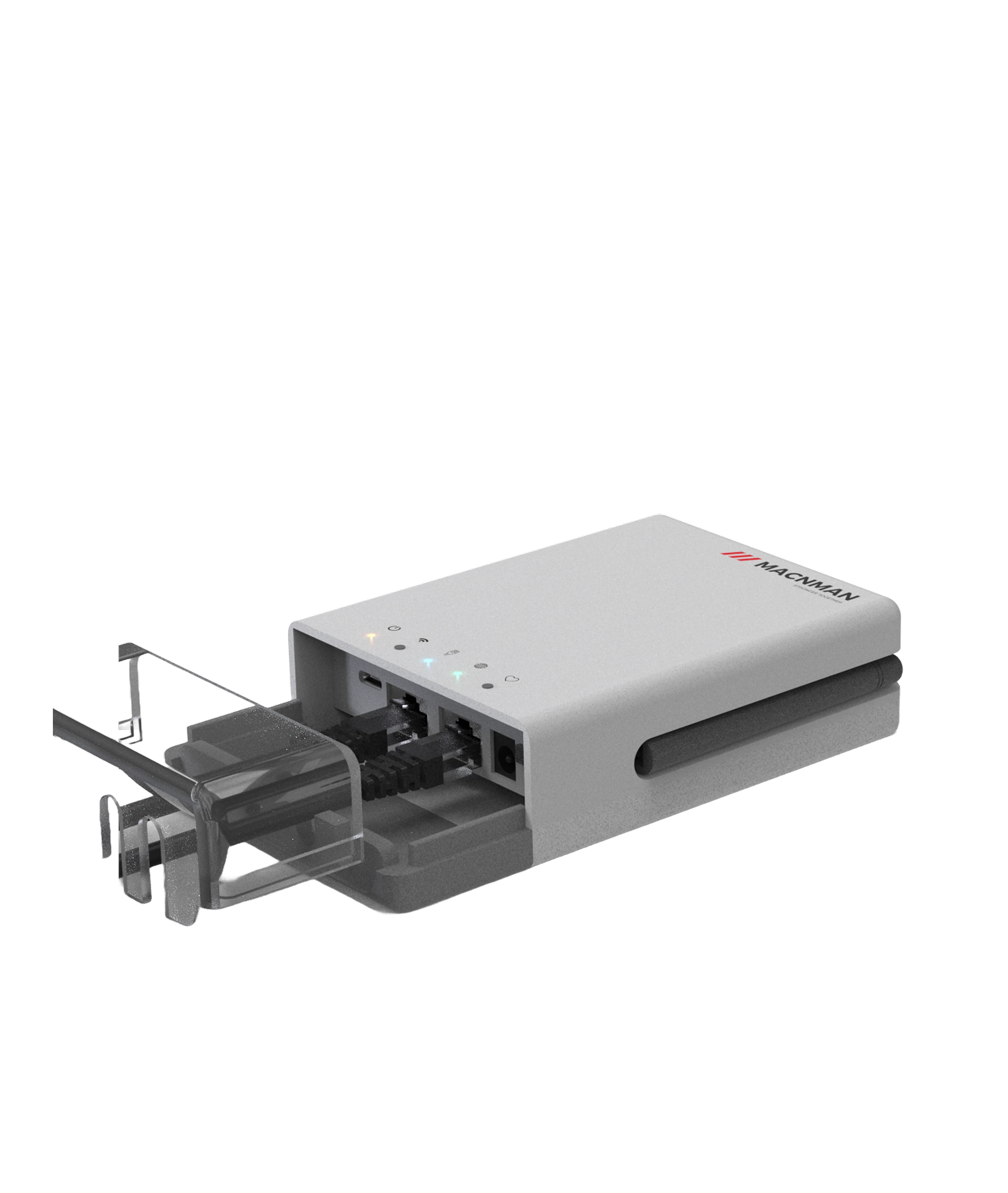

SCADA, BMS & Fire Panel Connectivity Sends real‑time equipment health signals and alarms directly to building safety infrastructure.
Edge Intelligence & Fault Diagnosis Local processing enables early failure detection, preventive alerts, and malfunction reporting before emergencies occur.
Secure and Reliable Operation Features industrial surge protection and secure communication for uninterrupted fire safety compliance.
Simple Installation & Zero Interruption Works with existing fire layouts without changes to current fire alarm systems or infrastructure.
Designed for Life‑Saving Reliability Built to ensure equipment readiness and compliance to protect people, assets, and infrastructure when every second counts.
Suited Applications
Fire Pump Monitoring Rooms Continuous diagnostics of motor condition, controller health, and pump readiness for immediate emergency activation.
Fire Hydrant & Sprinkler Networks Pressure and flow monitoring ensuring water delivery systems remain active and compliant.
Fire Extinguisher Stations Health status and tamper alerts for handheld extinguishers located across commercial and industrial facilities.
Water Tank & Reservoir Supervision Level monitoring ensures adequate fire‑water availability for hydrants and sprinklers at all times.
Emergency Exit Doors Monitors door status and enables controlled release during alarm or evacuation scenarios.
Data Centers & Server Rooms Automated monitoring of fire suppression infrastructure supporting mission‑critical equipment protection.
Hospitals, Hotels & High‑Occupancy Buildings Ensures fire‑protection system reliability across sensitive and public safety‑critical indoor spaces.
Industrial Plants & Warehouses Supports proactive maintenance and alerting for extensive fire protection equipment layouts.
Technical Specification
General
Specifications
Part Order Number
FireGaurd Gen 1
Product Brand
Macnman Technologies Pvt Ltd
Hardware
Specifications
Processor Type
nRF52840 Industrial‑grade MCU
CPU Architecture
32‑bit ARM® Cortex®‑M4 with FPU
Clock Speed
64 MHz
Flash Memory
1 MB On‑Chip Flash
RAM
256 KB On‑Chip RAM
Sensor Interface Channels
08 (Configurable UART / I²C / RS‑485)
Control Output Channels
04 Digital Outputs (Relay / DO Based)
Industrial Protection
Surge & ESD Protected IO
Debug Interface
USB Type‑C (Service Only)
Local Indicators
Multi‑Status LEDs for Fault / Power / Alarm
Safety Grade
Designed for Fire‑System Equipment Monitoring
Sensor Interface
Compatibility
Supported Sensor Types
Pressure Sensors (Hydrants, Sprinkler Lines)
Flow Sensors for Water Networks
Water Tank Level Sensors (Ultrasonic / Float Type)
Fire Extinguisher Health Modules
Fire Door Status & Magnetic Contact Sensors
Pump Controller Health Monitoring Inputs
Battery / Power Backup Status Modules
Alarm Annunciator Feedback Inputs
Sensor Communication Ports
UART × 2
I²C × 2
RS‑485 × 1
Dry Contact / Digital Inputs × 3
Diagnostic Feedback
Fault, Tamper, Low Pressure, Water Refill Alerts
Data Handling
Real‑time polling, alerts & timestamped events
Integration Support
Connects with Fire Panels, BMS & SCADA Networks
Native
RS485 Output
Interface Type
RS‑485 Half‑Duplex
Protocol
Modbus RTU (Slave Mode)
Baud Rates Supported
9600 / 19200 / 38400 / 57600 / 115200 bps (Configurable)
Data Format
8‑N‑1 (Default) / Configurable
Command Processing
Receives LoRa® sensor data and responds to host read commands via Modbus Holding Registers
Isolation
Built‑in surge and ESD protection for industrial environments
Connector
2‑Pin Terminal Block
Integration
Compatible with Industrial PLCs, BMS, HVAC Controllers and SCADA systems
Backhual
WiFi
Bands
2.4 GHz ISM Band
5 GHz ISM Band
Standards
IEEE 802.11 b/g/n, 802.3, 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16 QAM, 64 QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
External Antenna Integrated in Enclosure
Backhual
Cellular Lte*
Cellular Bands
B1 / B3 / B5 / B7 / B8 / B20 / B28
Standards
3GPP LTE, IEEE 802.3, IEEE 802.3u, 802.11e-compatible bursting
Modulation Schemes
BPSK, QPSK, 16‑QAM, 64‑QAM
Security
WEP, TKIP, AES, WPA, WPA2
Antenna
Internal Antenna Integrated in Enclosure
Supported
Protocols
Supported Protocols
MQTT
HTTP
HTTPS
Physical
Characteristics
Power Supply
9-36 V PoE
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP35
Housing Material
Aluminium
Color
Matte White
Weight
~120g
Mounting Options(Brackets)
Pole Mounting / Wall Mounting
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-128 end-to-end encryption
Authentication
OTAA activation modes (Nodes)
Firmware Protection
Secure boot and signed OTA updates
FireGaurd Gen 1 Variants
| Variant Name | Power Source | Wifi | Ethernet | Cellular | Ideal For |
|---|---|---|---|---|---|
| FireGaurd Gen 11 | 12–24 V (Power) | ✔️ | ✖️ | ✖️ | Ideal for small indoor networks with stable Wi-Fi backhaul such as offices, retail stores and hospitality environments. |
| FireGaurd Gen 12 | 12–24 V (Power) | ✔️ | ✖️ | ✔️ | Designed for mission‑critical deployments where Ethernet, Wi‑Fi and LTE failover ensure uninterrupted connectivity in industrial and multi‑site facilities. |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
