MacSync-LWQ-X9 Datasheet
Product Overview

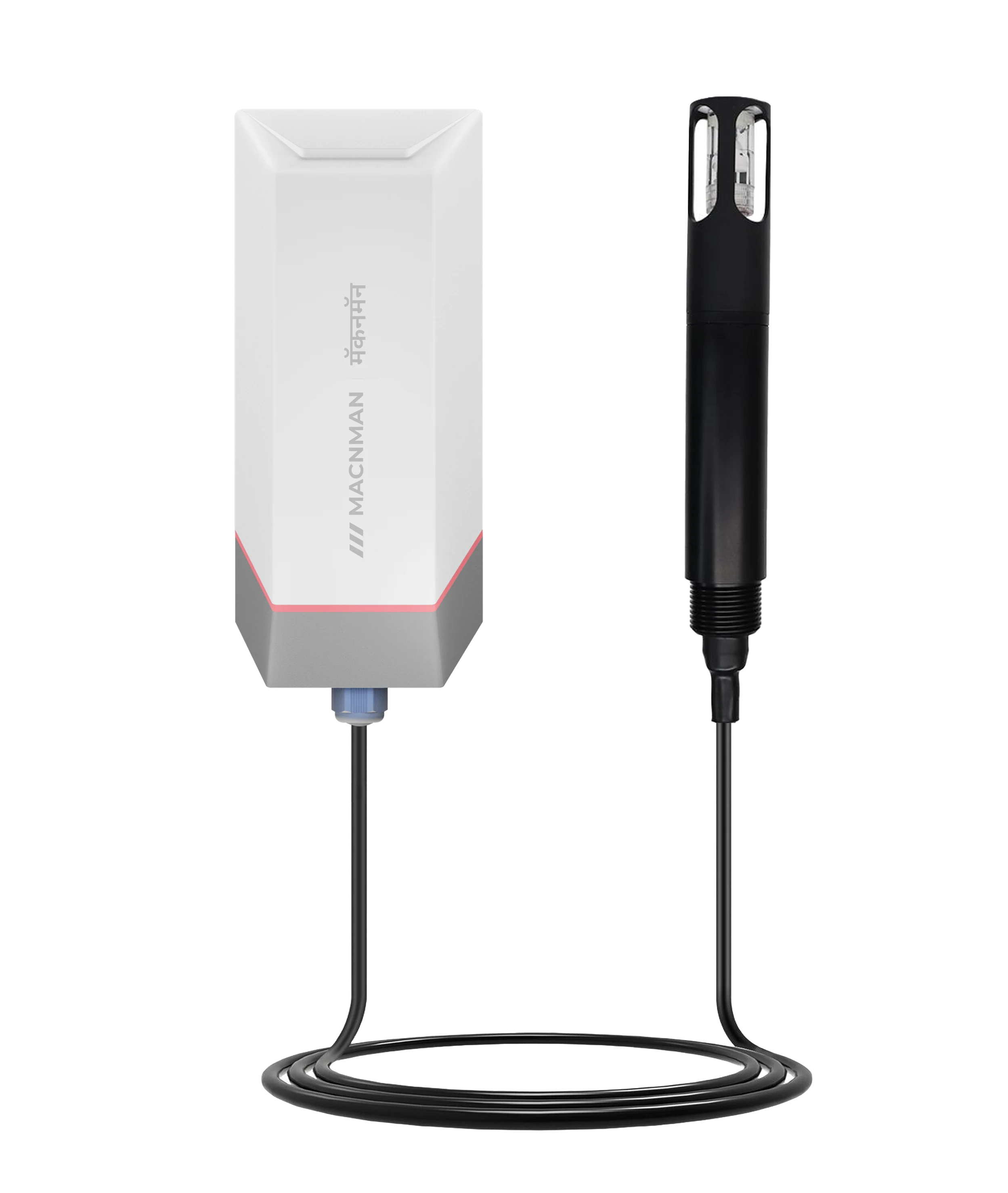

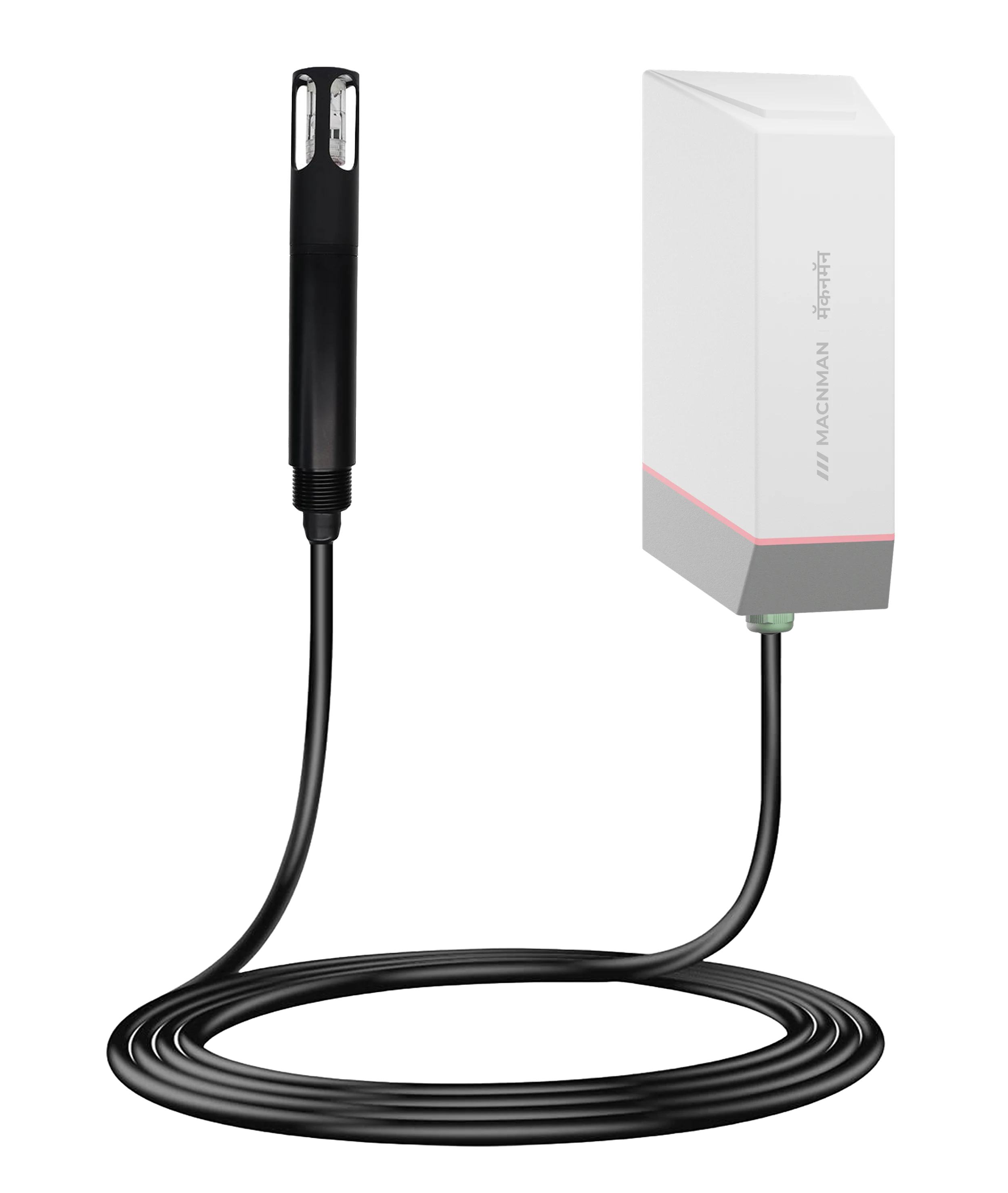

MacSync-LWQ-X9 is an industrial-grade LoRaWAN® water quality pH sensor designed for continuous, real-time monitoring of pH levels in drinking water systems, wastewater treatment plants, industrial effluents, and natural water bodies. Engineered for reliable long-term deployment, it enables accurate pH measurement in remote and distributed locations where wired monitoring systems are impractical.
Built around a high-stability electrochemical pH probe and precision signal conditioning, MacSync-LWQ-X9 delivers consistent and repeatable pH data with minimal drift over extended operation. The sensor supports online pH monitoring in tanks, pipelines, reservoirs, rivers, lakes, STP and WWTP facilities—helping operators maintain regulatory compliance, optimize treatment processes, and detect abnormal water conditions at an early stage.
Optimized for ultra-low-power operation and long-range wireless communication, the device securely transmits pH data over LoRaWAN® networks, enabling multi-year battery life even in harsh outdoor environments. Its rugged, ingress-protected enclosure and flexible mounting options make it suitable for permanent installations in municipal, industrial, and environmental monitoring applications.
With support for LoRaWAN® v1.0.4, AES-encrypted communication, OTA configuration via the Macnman Maya App, and compatibility with all major public and private LoRaWAN® network servers, MacSync-LWQ-X9 provides a scalable and future-ready solution for IoT-based water quality monitoring—transforming raw pH measurements into actionable intelligence for smarter water management.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-LWQ-X9
Key Features
High‑Accuracy Water pH Measurement Continuous and reliable pH monitoring using an industrial‑grade electrochemical pH probe for precise water quality assessment.
Online & Real‑Time pH Monitoring Enables real‑time pH tracking in tanks, pipelines, reservoirs, rivers, STP and WWTP facilities for proactive water management.
Long‑Term Stability & Low Drift Optimized signal conditioning and probe design ensure stable pH readings with minimal drift during long‑term deployments.
Ultra‑Low‑Power LoRaWAN® Connectivity LoRaWAN® Class A architecture enables long‑range wireless transmission with multi‑year battery life.
Designed for Harsh Water Environments Rugged, ingress‑protected enclosure suitable for continuous immersion and outdoor water monitoring applications.
Remote Monitoring & Alerts Supports threshold‑based alerts and event‑driven reporting for abnormal pH conditions.
Flexible Deployment Options Supports immersion and inline installations with flexible mounting for different water bodies and process pipelines.
BLE Configuration via Maya App Easy local configuration, diagnostics, and OTA updates using the Macnman Maya mobile application.
Secure & Scalable IoT Architecture AES‑encrypted communication with compatibility across all major public and private LoRaWAN® network servers.
Suited Applications
Drinking Water Quality Monitoring Continuous pH monitoring in municipal water supply systems to ensure safe drinking water and regulatory compliance.
Sewage Treatment Plants (STP) Real-time pH tracking across treatment stages to optimize chemical dosing and process efficiency.
Wastewater Treatment Plants (WWTP) Online pH monitoring for influent, effluent, and neutralization processes to meet discharge standards.
Industrial Effluent Monitoring pH monitoring of industrial discharge to detect abnormal conditions and ensure environmental compliance.
Rivers, Lakes & Reservoirs Long-term environmental pH monitoring of surface water bodies for pollution detection and ecosystem health assessment.
Water Distribution & Storage Tanks pH monitoring in overhead tanks, underground reservoirs, and distribution networks for early anomaly detection.
Cooling Towers & Process Water Continuous pH monitoring to prevent corrosion, scaling, and chemical imbalance in industrial water systems.
Environmental & Research Monitoring Reliable pH data collection for water research, environmental studies, and long-term monitoring projects.
Technical Specification
General
Specifications
Part Order Number
MacSync-LWQ-X9
Product Brand
Macnman Technologies Pvt Ltd
Water Ph
Measurement
Sensing Principle
Ion selection method
Detection Range
0 to 14 pH
Resolution
0.01 pH
Accuracy
±0.1 pH
Calibration Method
Two‑point calibration
Response Time
10 seconds (typical)
Temperature Compensation
Automatic temperature compensation (NTC)
Protection Level
IP68 (up to 20 meters water depth)
Service Life
Sensor: 1 year (typical)
Wireless
Transmission
Wireless Protocols
LoRaWAN®
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
26 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 04 years (10 Mins Uplink Interval)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply (Optional)
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~210g
Mounting Options
Pole Mounting / Wall Mounting
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 10 years (10 Mins Uplink Interval)
Electrical
Characteristics
Input Voltage Range (Optional Varient)
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (via gateway*)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-LWQ-X9 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | Ideal Deployment |
|---|---|---|---|---|
| MacSync-LWQ-X9-PO | External Power (9–36 V DC) | ✖️ | ✖️ | Industrial sites, automation systems & weather‑dependent machinery control |
| MacSync-LWQ-X9-BO | Battery Powered | 19 Ah | ✖️ | Remote farms, plantations, research stations — no wired power required |
| MacSync-LWQ-X9-SO | Solar + Battery Hybrid | 12 Ah (Rechargeable) | External solar charging | Long-term field deployments with real‑time climate automation in remote areas |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.

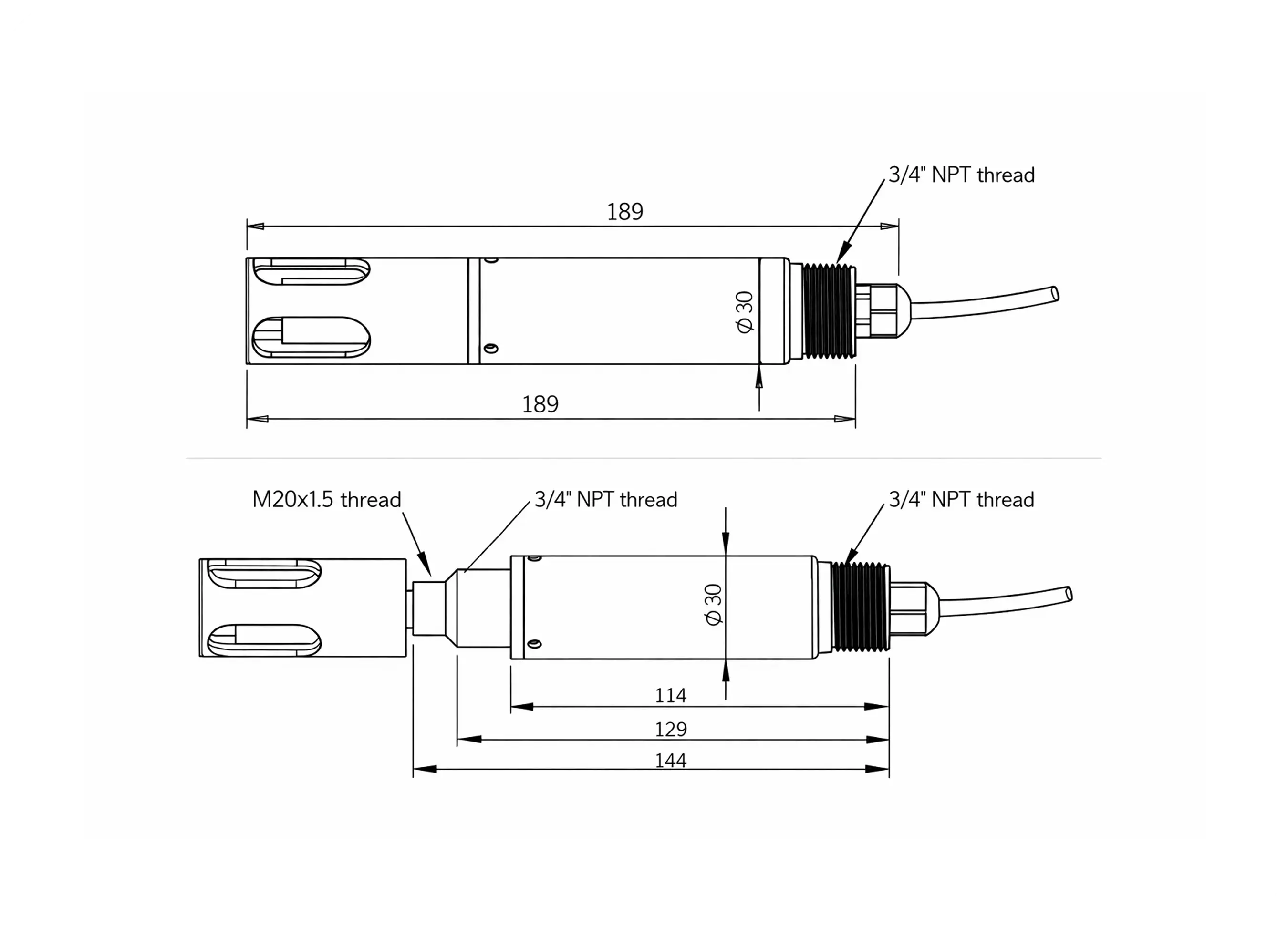

Product Dimensions
