MacSync-LRX1 Datasheet
Product Overview

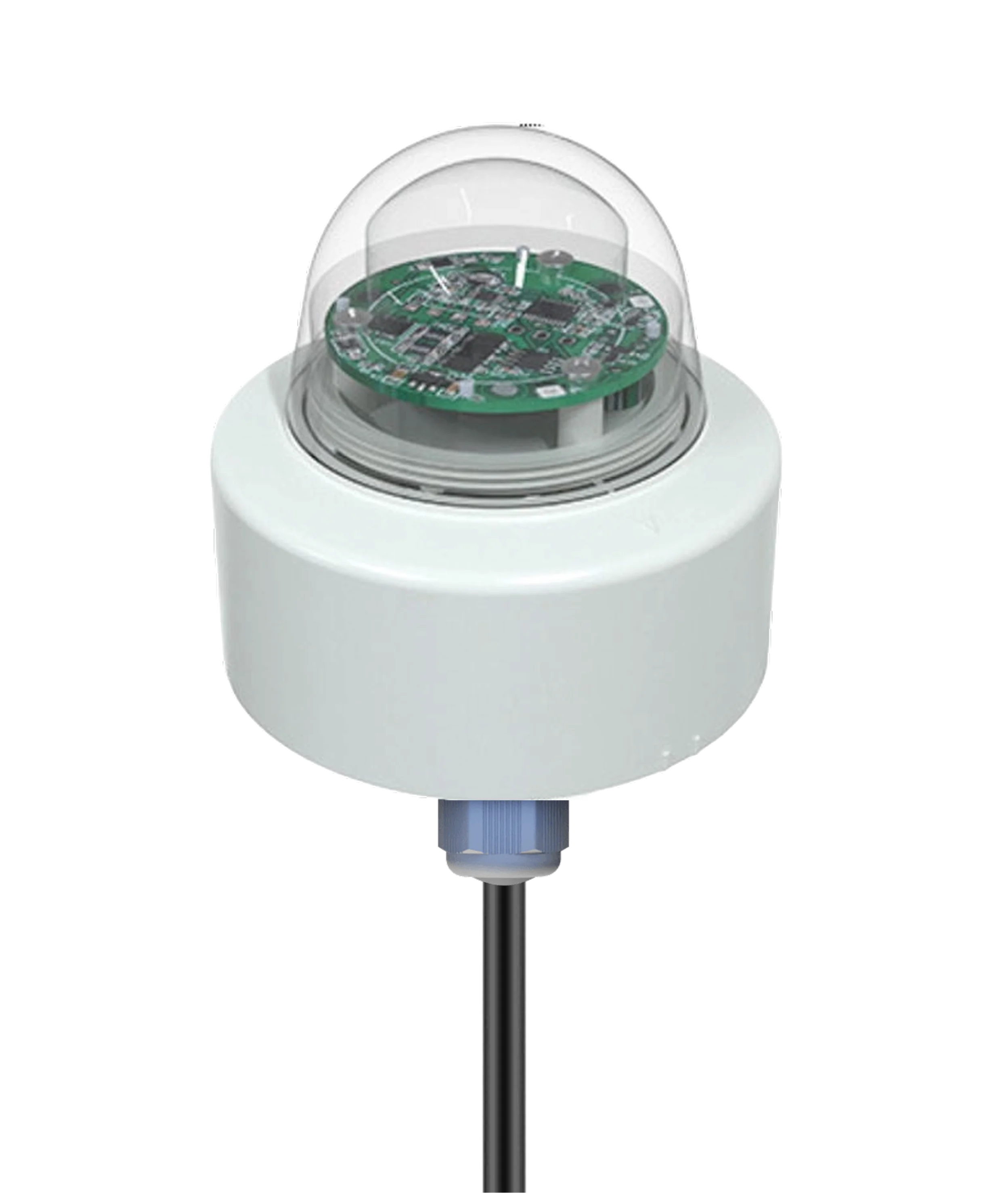

MacSync‑LRX1 is an advanced LoRaWAN® optical rainfall sensor engineered for high‑precision rain detection, rainfall intensity measurement, and real‑time precipitation monitoring. Using a solid‑state optical sensing array, it eliminates mechanical moving parts—offering unmatched reliability, zero maintenance, and accurate rainfall measurement even during light drizzle or high‑intensity storms.
Designed for long‑term outdoor deployment, MacSync‑LRX1 features a rugged IP‑rated enclosure, hydrophobic optical surface, and advanced filtering algorithms that reject dust, insects, and ambient light interference. Its long‑range LoRaWAN® connectivity enables seamless integration across large farmlands, smart‑city networks, industrial automation sites, and environmental monitoring stations.
Powered by Macnman’s ultra‑low‑power architecture, OTA configuration via the Maya App, and onboard data‑buffering for uninterrupted transmission, MacSync‑LRX1 delivers dependable rainfall analytics for irrigation automation, flood‑alert systems, weather intelligence platforms, and climate research installations.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-LRX1
Key Features
Solid‑State Optical Rain Detection Advanced optical sensing technology provides accurate rainfall detection with zero moving parts and no mechanical wear.
Real‑Time Rainfall Intensity Measurement Precisely detects drizzle, moderate rain, and heavy rainfall using high‑resolution optical sampling.
Maintenance‑Free Design Hydrophobic optical surface prevents water adhesion and eliminates clogging, debris accumulation, and mechanical calibration.
Ultra‑Long‑Range LoRaWAN® Connectivity Seamless long‑distance communication for field deployments, smart‑city infrastructure, and remote weather stations.
Rugged Outdoor Construction Engineered with a UV‑resistant, IP‑rated housing for continuous operation under extreme rain, heat, dust, and sunlight exposure.
Low‑Power Architecture Multi‑year battery performance with optimized sleep modes even under frequent rainfall events.
Anti‑Interference Algorithms Intelligent processing eliminates false triggers from insects, dust, vibration, and ambient light.
OTA Configuration via Maya App Configure sampling intervals, reporting modes, and diagnostics wirelessly without accessing the device.
Reliable Data Buffering On‑device storage ensures no rainfall data loss during temporary network outages.
Universal LoRaWAN® Compatibility Works with TTN, ChirpStack, Loriot, Orbiwise, MQTT servers, and private LoRaWAN® networks.
Suited Applications
Smart Agriculture & Irrigation Control Automate irrigation cycles by monitoring real-time rainfall intensity to prevent overwatering and improve crop hydration efficiency.
Flood Monitoring & Early‑Warning Systems Provides immediate rainfall detection for river‑side communities, reservoirs, catchment areas, and disaster‑response systems.
Smart‑City Weather Intelligence Enables high‑resolution rainfall mapping for drainage planning, road safety automation, urban water conservation, and stormwater management.
Environmental & Climate Research Ideal for long‑term rainfall pattern analysis, hydrology research, and climate‑change studies.
Remote Weather Stations Reliable rainfall measurement for forest stations, mountain regions, rural areas, and autonomous micro‑weather networks.
Industrial Safety & Automation Supports outdoor‑equipment shutdown logic, construction‑site safety alerts, and rainfall‑triggered automation systems.
Smart Irrigation in Parks & Landscapes Automated watering control for parks, stadiums, golf courses, resorts, and corporate campuses based on real-time rainfall events.
Water Resource & Drainage Management Helps utilities and municipalities track rainfall for dam operations, canal flow management, and watershed monitoring.
Technical Specification
General
Specifications
Part Order Number
MacSync-LRX1
Product Brand
Macnman Technologies Pvt Ltd
Environmental
Measurement
Sensing Principle
Infrared optical refraction
Detection Range
Equivalent 0–200 mm/h
Resolution
1 mm/h equivalent
Accuracy
±5% (typical)
Rain Classification
0 = No Rain, 1 = Drizzle, 2 = Moderate, 3 = Heavy
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 04 years (10 Mins Uplink Interval)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply (Optional)
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~210g
Mounting Options
Pole Mounting / Wall Mounting
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 3 years (10 Mins Uplink Interval)
Electrical
Characteristics
Input Voltage Range (Optional Varient)
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (via gateway*)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-LRX1 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | Ideal Deployment |
|---|---|---|---|---|
| MacSync-LRX1-PO | External Power (9–36 V DC) | ✖️ | ✖️ | Industrial sites, automation systems & weather‑dependent machinery control |
| MacSync-LRX1-BO | Battery Powered | 19 Ah | ✖️ | Remote farms, plantations, research stations — no wired power required |
| MacSync-LRX1-SO | Solar + Battery Hybrid | 12 Ah (Rechargeable) | External solar charging | Long-term field deployments with real‑time climate automation in remote areas |

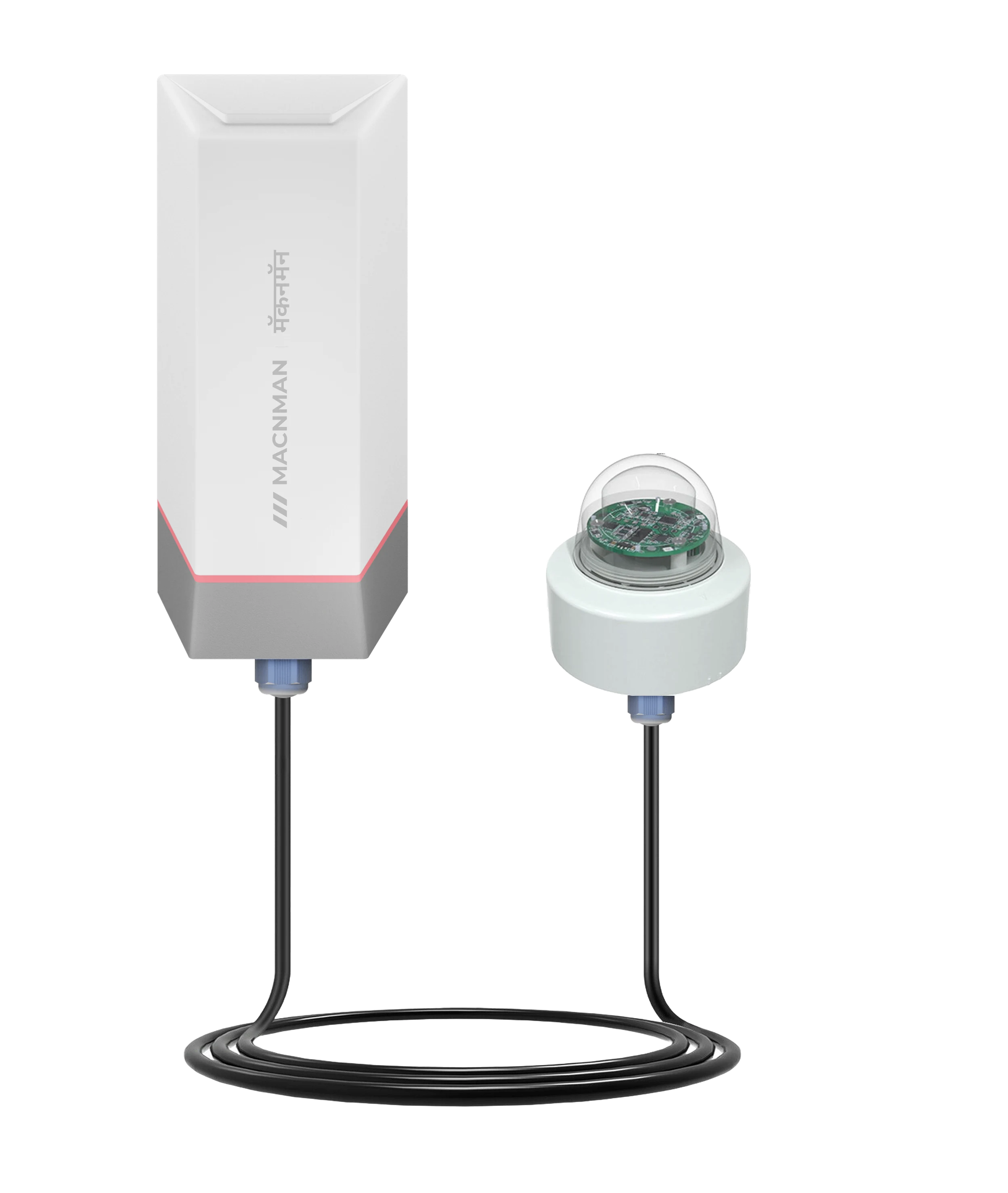

What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.

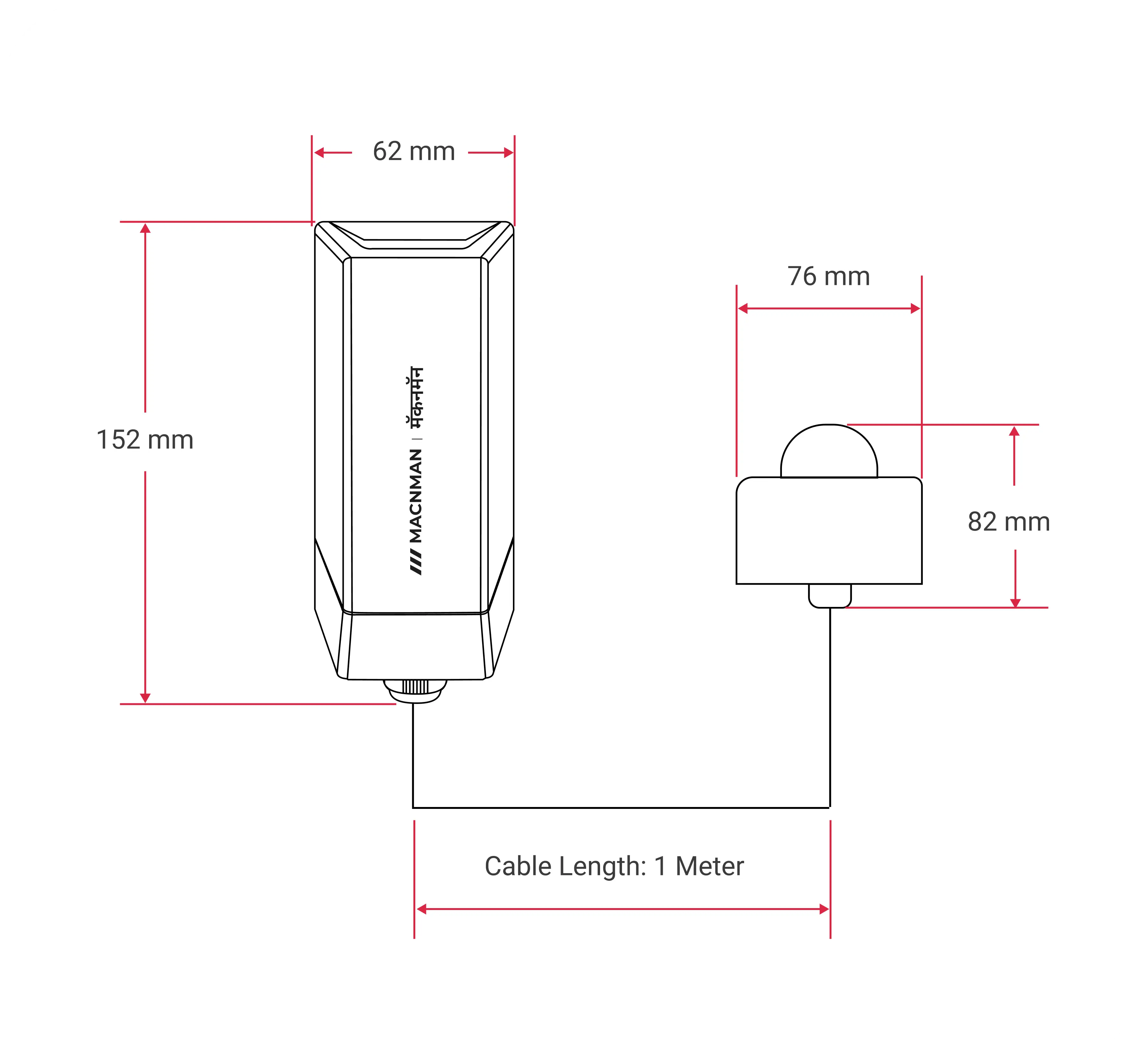

Product Dimensions
