MacSync-LNX1 Datasheet
Product Overview

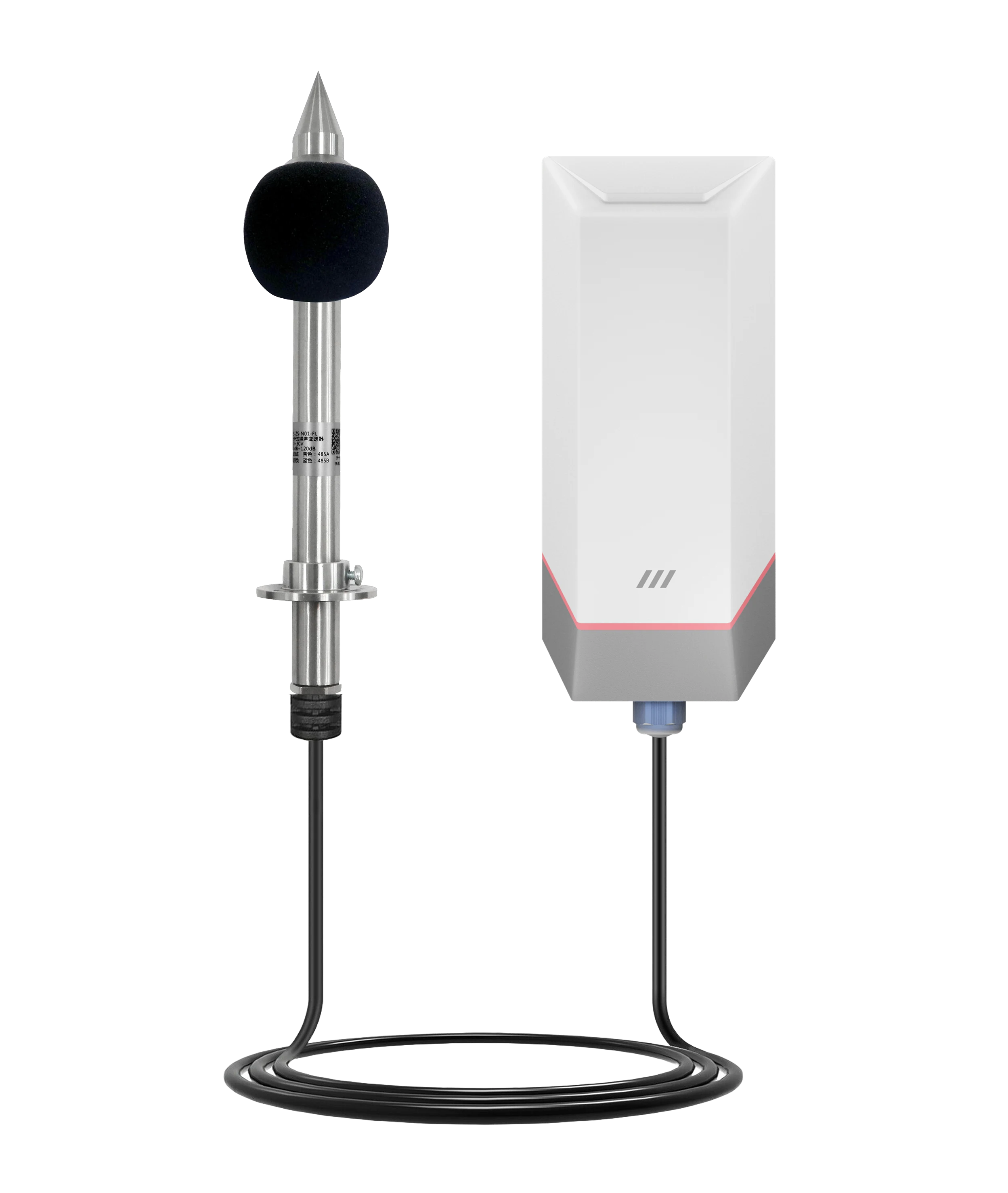

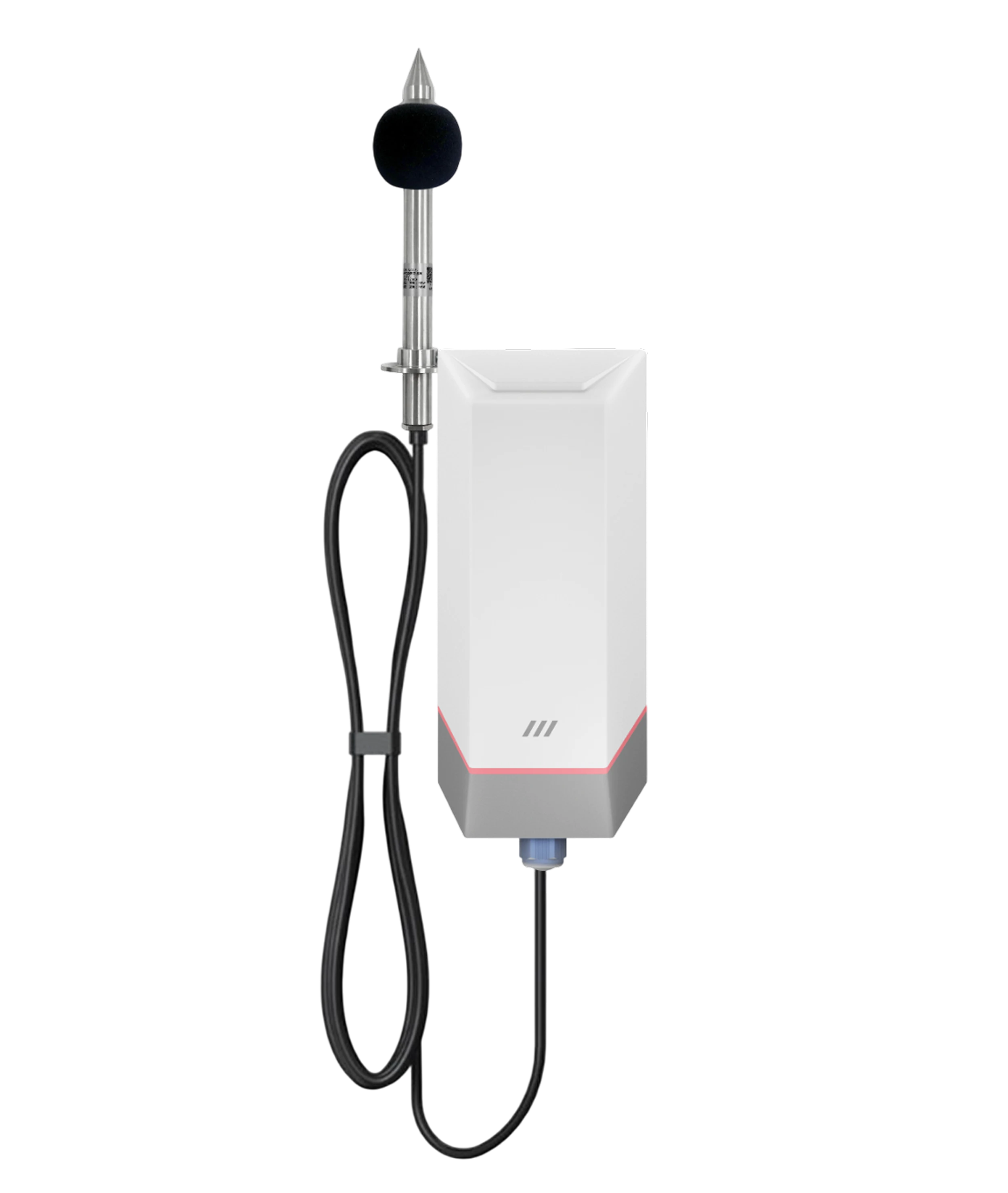

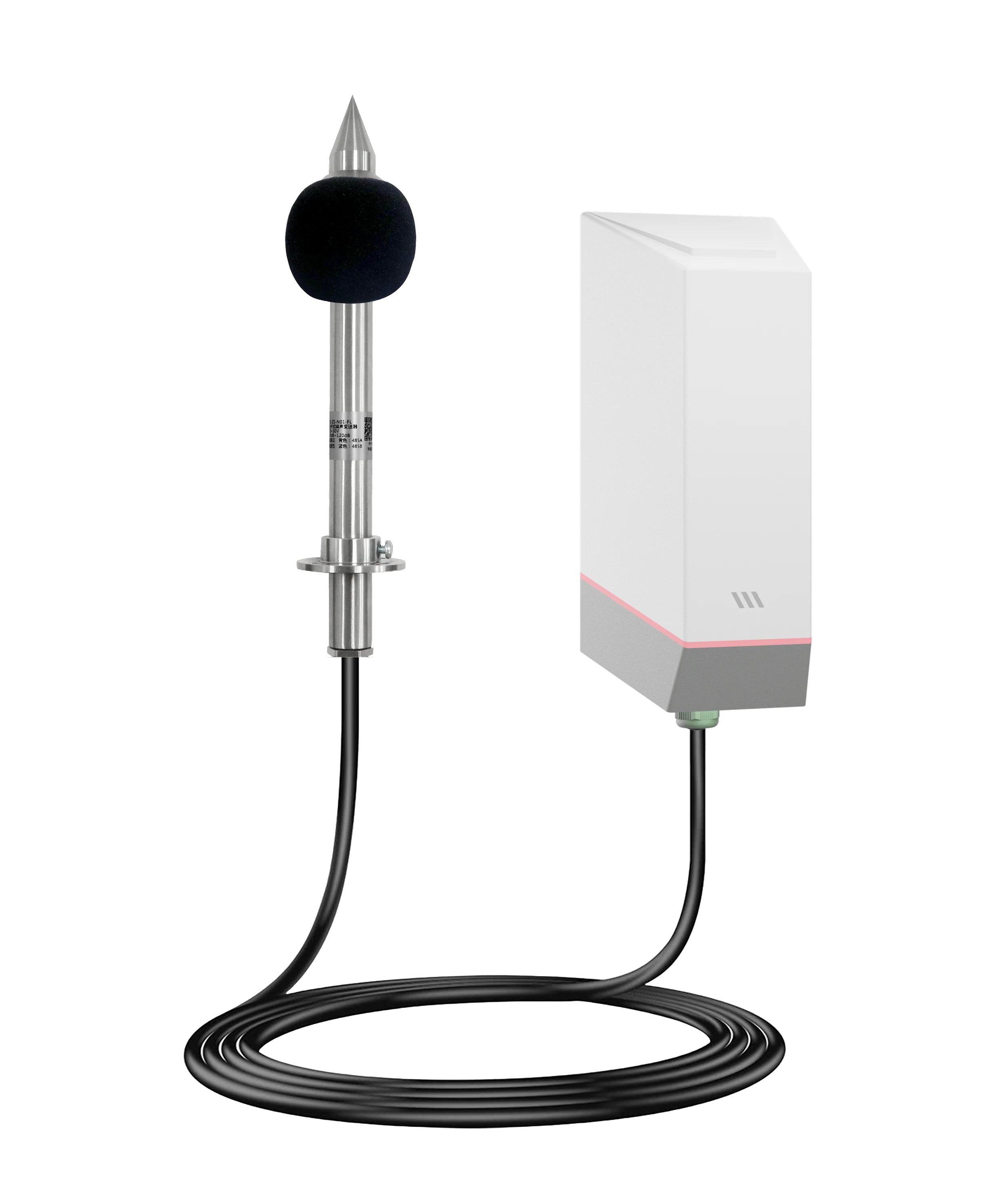

MacSync-LNX1 is an advanced LoRaWAN® noise and acoustic monitoring sensor designed for continuous environmental sound measurement and compliance monitoring in industrial, commercial, and smart‑city deployments. With a precision A‑weighted microphone, high‑resolution sampling, and onboard analytics, it delivers real‑time decibel readings, peak sound detection, time‑weighted averages, and noise pattern insights.
Its ultra‑low‑power architecture and long‑range LoRaWAN® connectivity allow wide‑area deployment without wired infrastructure, making it ideal for 24×7 monitoring applications. The rugged IP65 weather‑resistant enclosure, wind‑noise reduction design, and high‑stability acoustic front‑end ensure accurate performance in harsh outdoor and industrial environments.
With BLE onboarding via Maya App, secure OTA configuration, adaptive reporting modes, and encrypted data transmission — MacSync‑LNX1 enables smarter city planning, noise regulation compliance, and predictive environmental intelligence, delivering actionable sound data wherever it’s needed most.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-LNX1
Key Features
High‑Accuracy Noise Measurement A‑weighted acoustic calibration for reliable environmental and industrial noise compliance monitoring.
Peak, Leq & Time‑Weighted Metrics Real‑time dB measurements, peak capture, and long‑term noise exposure analytics.
Advanced Acoustic Signal Processing Filters wind‑noise, background hum & interference for precise sound characterization.
Rugged IP65 Outdoor Design Engineered to withstand dust, rain & high‑noise industrial environments.
Ultra‑Low‑Power LoRaWAN® Connectivity Supports periodic, event‑based & threshold‑based reporting with multi‑year battery life.
BLE Setup via Maya App Fast deployment, configuration & diagnostics directly from a smartphone.
Wide‑Area Deployment Long‑range connectivity enables smart‑city scale acoustic monitoring networks.
Secure Wireless Communication AES‑encrypted uplinks for protected environmental compliance data.
Cloud‑Connected Intelligence Seamless integration with major LoRaWAN® network servers & IoT platforms.
Plug‑and‑Play Installation No wiring required for battery model — designed for quick & scalable field deployment.
Suited Applications
Smart City Noise Compliance Continuous monitoring of traffic, roadways, commercial areas, and pedestrian zones for regulatory enforcement.
Industrial & Factory Noise Exposure Occupational noise monitoring for worker safety, hearing protection standards & audit reports.
Construction & Mining Sites Detect sound pollution levels caused by drilling, blasting, heavy machinery, and infrastructure projects.
Airports, Rail & Metro Corridors Track aircraft takeoff/landing noise and metro/rail movement impact across urban zones.
Commercial Buildings & Indoor Public Areas Noise management inside malls, hospitals, offices, auditoriums, and educational institutes.
Environmental Protection Zones Noise mapping in wildlife reserves, green zones & pollution‑sensitive areas.
Event & Entertainment Venues Live monitoring of concerts, festivals, and stadium events for decibel limit enforcement.
Noise Complaint Validation Remote data‑driven analysis for community noise grievance responses and legal documentation.
IoT‑Enabled Urban Planning Real‑time acoustic analytics for smarter zoning, road layouts & environmental policy decisions.
Technical Specification
General
Specifications
Part Order Number
MacSync-LNX1
Product Brand
Macnman Technologies Pvt Ltd
Noise
Measurement
Measuring Range
30 dB to 120 dB (typical)
Resolution
0.1 dB
Frequency Range
20 Hz – 12.5 kHz
Accuracy
±0.5 dB (at 94 dB, 1 kHz reference)
Stability
< 2% variation over lifecycle
Weighting Filter
A‑weighting (dBA) standard compliant
Response Time
Fast time‑weighted response
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 10 years (10 Mins Uplink Interval)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply (Optional)
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range (Optional Varient)
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-LNX1 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | External Flash | Ideal For |
|---|---|---|---|---|---|
| MacSync-L-RTDX1-PO | 12–24 V (Power) | ✖️ | ✖️ | ✔️ | Industrial or commercial sites with stable power supply |
| MacSync-L-RTDX1-BO | Battery | 19 Ah | ✖️ | ✔️ | Remote or portable deployments with low power |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
