ParkNode Gen-1 Datasheet
Product Overview

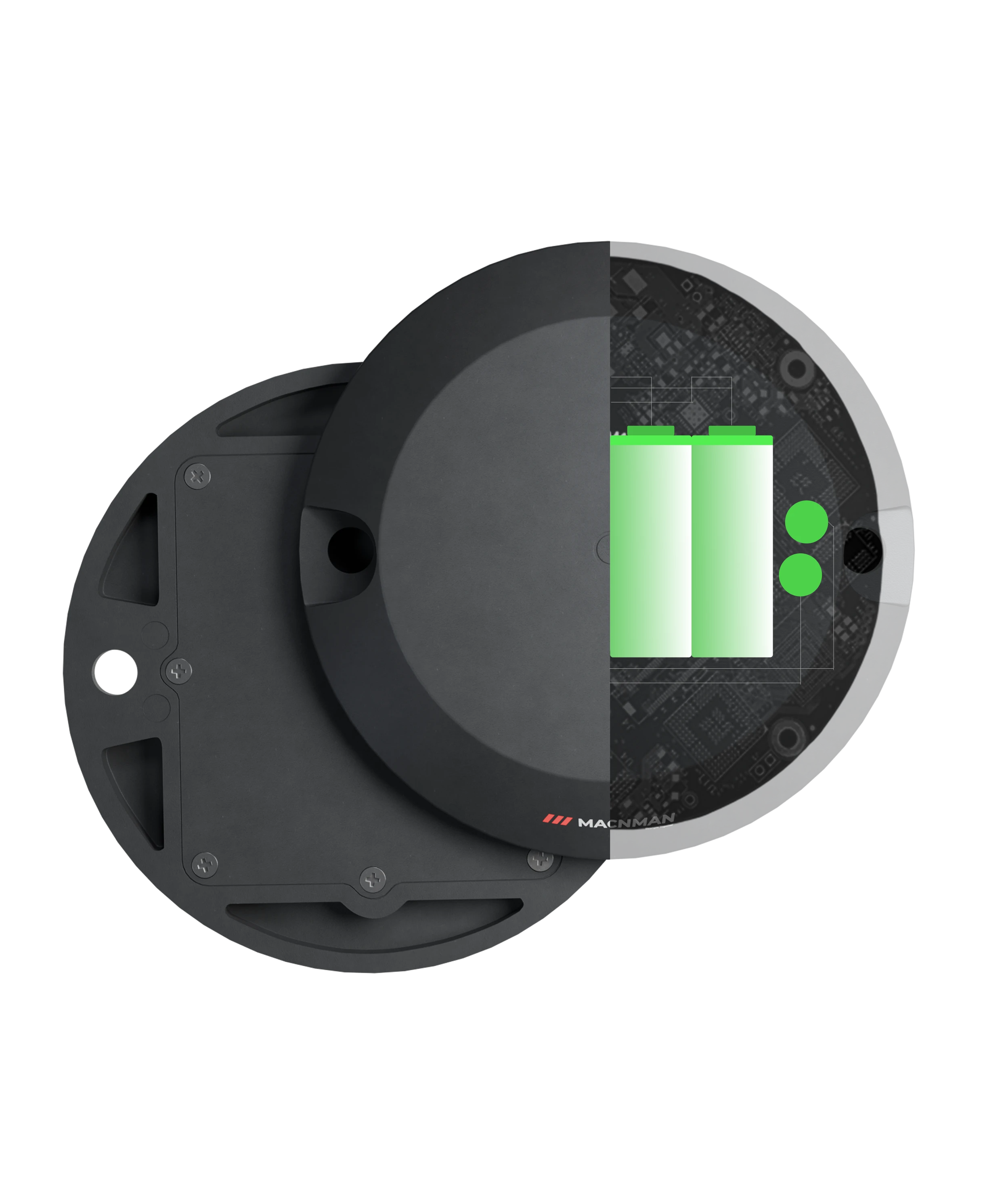

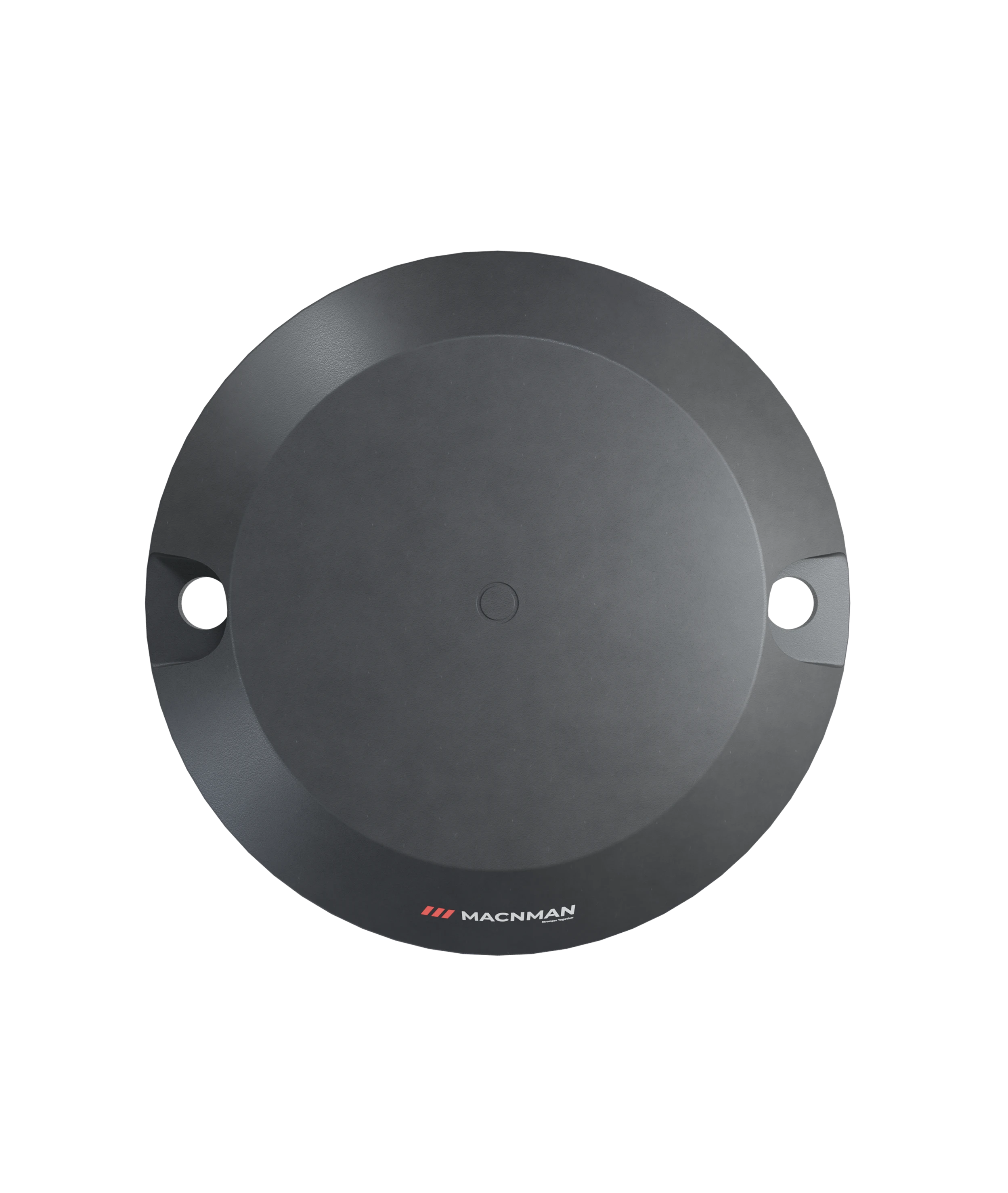

ParkNode Gen‑1 is an intelligent LoRaWAN® geomagnetic parking occupancy sensor designed for real‑time vehicle presence detection in off‑street, curbside, and commercial parking spaces. Using industrial‑grade geomagnetic sensing technology with advanced signal processing, the device precisely detects a vehicle’s arrival, stay duration, and departure — even in challenging environments.
Engineered for outdoor deployment, ParkNode Gen‑1 features a rugged enclosure, IP‑rated sealing, and high immunity to temperature variation, vibration, and electromagnetic interference. It supports surface‑mount and flush‑mount installation, enabling easy deployment across city streets, gated societies, business parks, airports, and shopping complexes.
Built on low‑power LoRaWAN® wireless communication, the device delivers long‑range connectivity to smart‑city gateways and parking management platforms while maintaining years of battery life. Instant occupancy updates help reduce traffic congestion, optimize parking revenue, automate enforcement, and improve the driver experience with accurate space‑availability guidance.
With intelligent filtering for vehicle motion, metal type, and multi‑vehicle parking interactions — ParkNode Gen‑1 transforms traditional parking spaces into smart, connected assets, enabling efficient and scalable parking automation for modern cities.
 |  |
|---|---|
 |  |
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for ParkNode Gen-1
Key Features
High-Accuracy Geomagnetic Vehicle Detection Detects vehicle arrival, presence, and departure with fast response and zero false alerts.
LoRaWAN® Long-Range Wireless Connectivity Real-time parking occupancy reporting over secure, encrypted LoRaWAN® networks.
Ultra-Low Power with Multi-Year Battery Life Designed for outdoor deployment with maintenance-free operation for years.
Rugged Outdoor Design Shock-resistant and weather-proof construction ready for road-side and curbside installations.
Surface or Flush Mount Options Flexible installation for asphalt roads, parking lots, industrial yards, and private spaces.
Intelligent Magnetic Filtering Advanced algorithms to differentiate between vehicles, bicycles, and environmental magnetic noise.
Smart City Integration Compatible with parking management platforms for guidance systems, reservations, and enforcement.
Event-Based Uplinks Arrival/Departure events and parking duration analytics for cost and network optimization.
Suited Applications
On‑Street & Curbside Parking Real‑time detection of individual parking bay occupancy for smart city enforcement and driver guidance.
Commercial Parking Lots Optimizes space usage and supports automated access management in malls, business parks, and shopping centers.
Basement & Covered Parking Magnetic sensing works reliably even where GNSS and cameras fail due to low visibility.
Residential & Society Parking Ensures proper allocation, prevents unauthorized vehicle parking and enhances security.
Airport & Railway Parking Zones Real‑time vehicle turnover analytics and occupancy tracking for high‑traffic mobility hubs.
EV Parking Enforcement Detects overstays and improper parking in dedicated EV charging bays.
Industrial Logistics Areas Monitors reserved parking for loading vehicles, forklifts, and workforce transport vehicles.
Smart Mobility & Fleet Allocation Enables dynamic space assignment and automated guidance for taxis, buses and shared fleets.
Technical Specification
General
Specifications
Part Order Number
ParkNode Gen-1
Product Brand
Macnman Technologies Pvt Ltd
Geomagnetic
Detection
Detection Method
3‑axis geomagnetic field sensing
Magnetic Sensitivity
±200 to ±1000 μT dynamic range
Detection Accuracy
> 98% vehicle presence detection accuracy *
Detection Latency
< 7~10 seconds (arrival/departure)
Self‑Calibration
Automatic baseline calibration & drift compensation
Anti‑Noise Filtering
Resistant to EMI from motors, HVAC, power lines
Multi‑Vehicle Handling
Intelligent algorithms for vehicles parked in sequence
False Trigger Prevention
Filters bicycles, carts, and pedestrians
Installation Height
Surface mount or flush in asphalt/concrete
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected LoRaWAN Network (On for 30 sec still)
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of device is being modified
Device
Configuration
Configuration
LoRaWAN QR keys QR Code
Uplink Modes
Trigger Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-Ion Cell (06Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 10 Years(20 Vehicals detected in day)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply
Inbuilt Battery
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP68
Housing Material
Glass field Nylon
Color
Matte Black
Matte Yellow
Weight
~310g
Mounting Options
Surface Mounting
Electrical
Characteristics
Inbuilt Battery
Lithium Cell
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity (Optional Varient)
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (Gateway)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
ParkNode Gen-1 Variants
| Variant Name | Battery Life | Recommended Use |
|---|---|---|
| ParkNode Gen‑1‑X1 | Up to 10 Years (Ultra‑Long Life) | Public smart parking deployments with minimal service access |
| ParkNode Gen‑1‑X2 | Up to 5 Years (Standard Life) | Private parking areas and cost‑optimized smart parking solutions |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
