MacSync-L-PSXx Datasheet
Product Overview

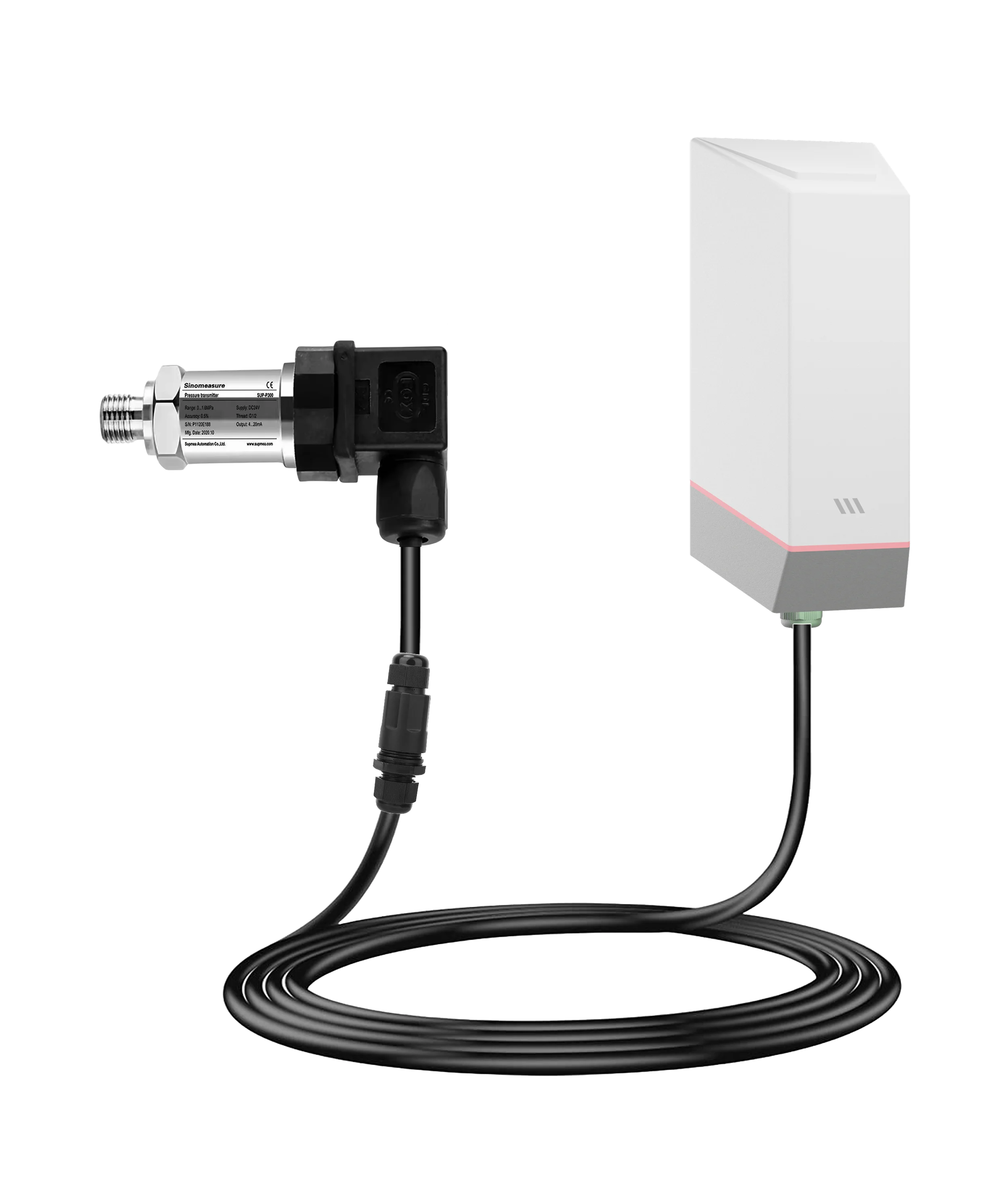

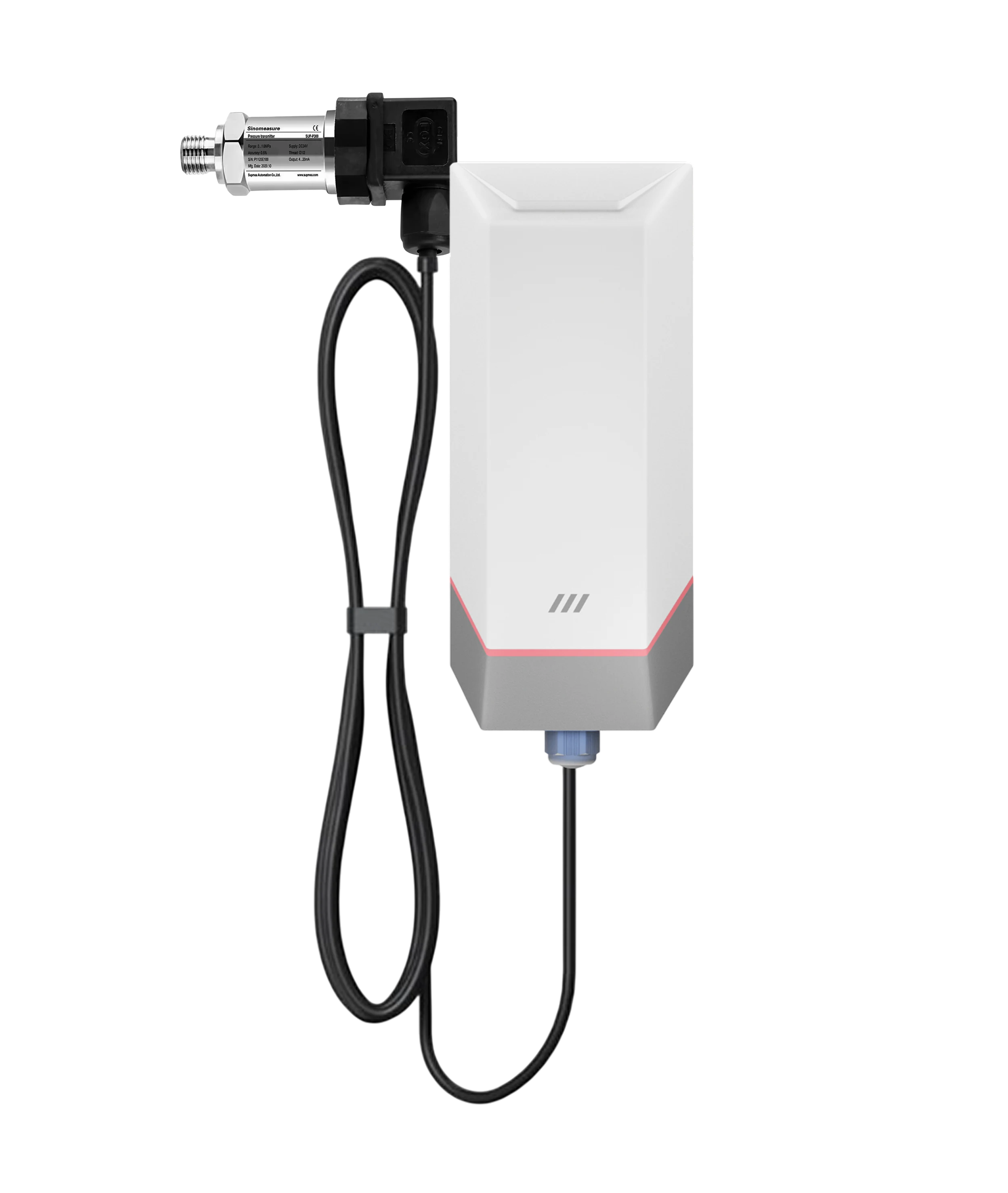

MacSync-L-PSXx is a high‑accuracy LoRaWAN® industrial liquid pressure monitoring device engineered for real‑time measurement of water, chemical, and industrial fluid networks. It converts critical pressure data into secure wireless telemetry, enabling operators to detect leaks, pump inefficiencies, over‑pressure risks, and system failures before they escalate.

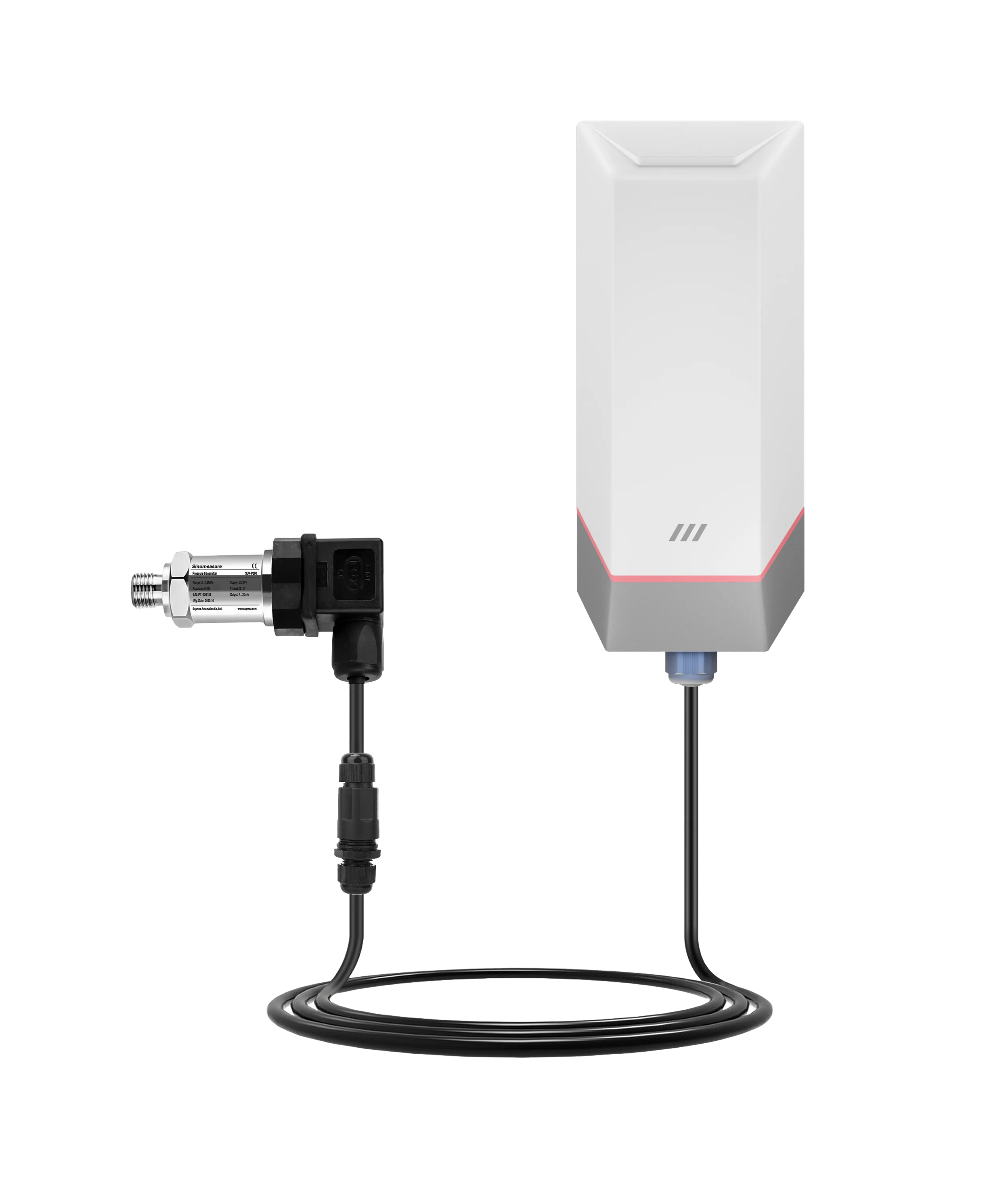

Built using an industrial‑grade stainless steel pressure transducer (SS316 diaphragm), the device delivers stable performance even in corrosive, high‑humidity, and vibration‑prone environments. Its IP67‑rated enclosure, wide operating temperature range, and robust surge protection make it suitable for harsh outdoor deployments.
MacSync‑L‑PSXx supports multi‑year battery operation or external DC powering for versatile installation in both powered and fully remote locations. With LoRaWAN® long‑range communication, BLE‑based configuration using the Maya App, and intelligent sampling with event‑based alerts — the device supports zero‑maintenance pressure surveillance at scale.
From fire hydrant & fire‑pump discharge monitoring, municipal water distribution, industrial process control, to oil & gas pipeline pressure assurance — MacSync‑L‑PSXx unlocks smarter infrastructure decisions with continuous visibility into fluid network health and operational safety.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-L-PSXx
Key Features
Short‑Range Precision Sensing Optimized ultrasonic measurement for 0–4 meters liquid and solid level monitoring.
Advanced Echo Processing Intelligent filtering eliminates false readings from foam, turbulence, and obstructions.
Battery‑Powered LoRaWAN® Multi‑year autonomous operation with ultra‑low‑power wireless communication.
IP67 Rugged Design Durable and corrosion‑resistant enclosure built for harsh outdoor and underground environments.
Smart Uplink Strategies Periodic, event‑based & threshold alerts optimize power consumption and network traffic.
BLE Configuration via Maya App Quick setup, OTA parameter adjustment & diagnostics using a smartphone.
Wide Industrial Use Designed for manholes, sewer drains, tanks, pits, reservoirs & flood monitoring.
Secure & Long‑Range Communication AES‑128 encrypted LoRaWAN® connectivity with strong penetration in remote areas.
Flexible Deployment Options Supports pole, wall, and custom mount installation for easy field deployment.
Compatible with All LoRaWAN® Networks Works seamlessly with private/public network servers and cloud platforms.
Suited Applications
Smart Water Utilities Continuous level monitoring for underground water tanks, overhead tanks, reservoirs, and sumps.
Manhole & Sewer Level Monitoring Detect overflow risks, blockages, and sewer flooding in drainage networks.
Flood & Stormwater Monitoring Real-time alerts for rising levels in rivers, canals, storm drains, and flood-prone zones.
Industrial Wastewater Management Accurate level detection in effluent treatment plants, sludge pits, and chemical tanks.
Mining & Quarry Operations Level tracking in slurry pits, water sumps, and tailing dams for safety assurance.
Smart City Infrastructure Remote monitoring of drainage networks to prevent urban flooding and road closures.
Oil & Fuel Storage Tanks Level measurement for diesel storage, fuel stations, and industrial oil chambers.
Remote & Unmanned Locations Low-maintenance, long-range LoRaWAN® monitoring where wired installation is impractical.
Environmental Risk Monitoring Early warning for spill detection, groundwater rise, or hazardous waste overflow.
Technical Specification
General
Specifications
Part Order Number
MacSync-L-PSXx
Product Brand
Macnman Technologies Pvt Ltd
Pressure
Measurement
Range
0 ~ 0.5 MPa
0 ~ 1.5 MPa
0 ~ 2.5 MPa
0 ~ 10 MPa
0 ~ 30 MPa
Accuracy
±1.5% Full Scale (FS)
Max. Pressure
2.4 MPa
Destructive Pressure
3.0 MPa
Response Time (Sensor)
≤ 2.0 ms
Cycle Life
1,000,000 cycles
Protection Rating (Sensor)
IP67
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 2 years (10 Mins Uplink Interval)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply (Optional)
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte Black
Weight
~110g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range (Optional Varient)
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-L-PSXx Variants
| Variant Name | Pressure Range | Power Option | Ideal Use Case |
|---|---|---|---|
| MacSync-L-PSX0.5-PO | 0 ~ 0.5 MPa | 12–24 V DC Power | Water distribution lines & low-pressure industrial monitoring |
| MacSync-L-PSX0.5-BO | 0 ~ 0.5 MPa | Battery (Multi-year) | Remote low-pressure pipelines & control rooms |
| MacSync-L-PSX1.5-PO | 0 ~ 1.5 MPa | 12–24 V DC Power | Municipal hydrants & medium pressure lines |
| MacSync-L-PSX1.5-BO | 0 ~ 1.5 MPa | Battery (Multi-year) | Unmanned water networks & industrial equipment |
| MacSync-L-PSX2.5-PO | 0 ~ 2.5 MPa | 12–24 V DC Power | Fire-fighting discharge pressure & industrial pumps |
| MacSync-L-PSX2.5-BO | 0 ~ 2.5 MPa | Battery (Multi-year) | Remote firefighting pressure monitoring & booster stations |
| MacSync-L-PSX10-PO | 0 ~ 10 MPa | 12–24 V DC Power | High-pressure industrial systems & heavy pipelines |
| MacSync-L-PSX10-BO | 0 ~ 10 MPa | Battery (Multi-year) | Oil & gas networks with no power access |
| MacSync-L-PSX30-PO | 0 ~ 30 MPa | 12–24 V DC Power | Industrial high stress pipelines, hydraulic systems |
| MacSync-L-PSX30-BO | 0 ~ 30 MPa | Battery (Multi-year) | Critical infrastructure monitoring in remote high-pressure applications |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
