MacSync-LWSX6 Datasheet
Product Overview

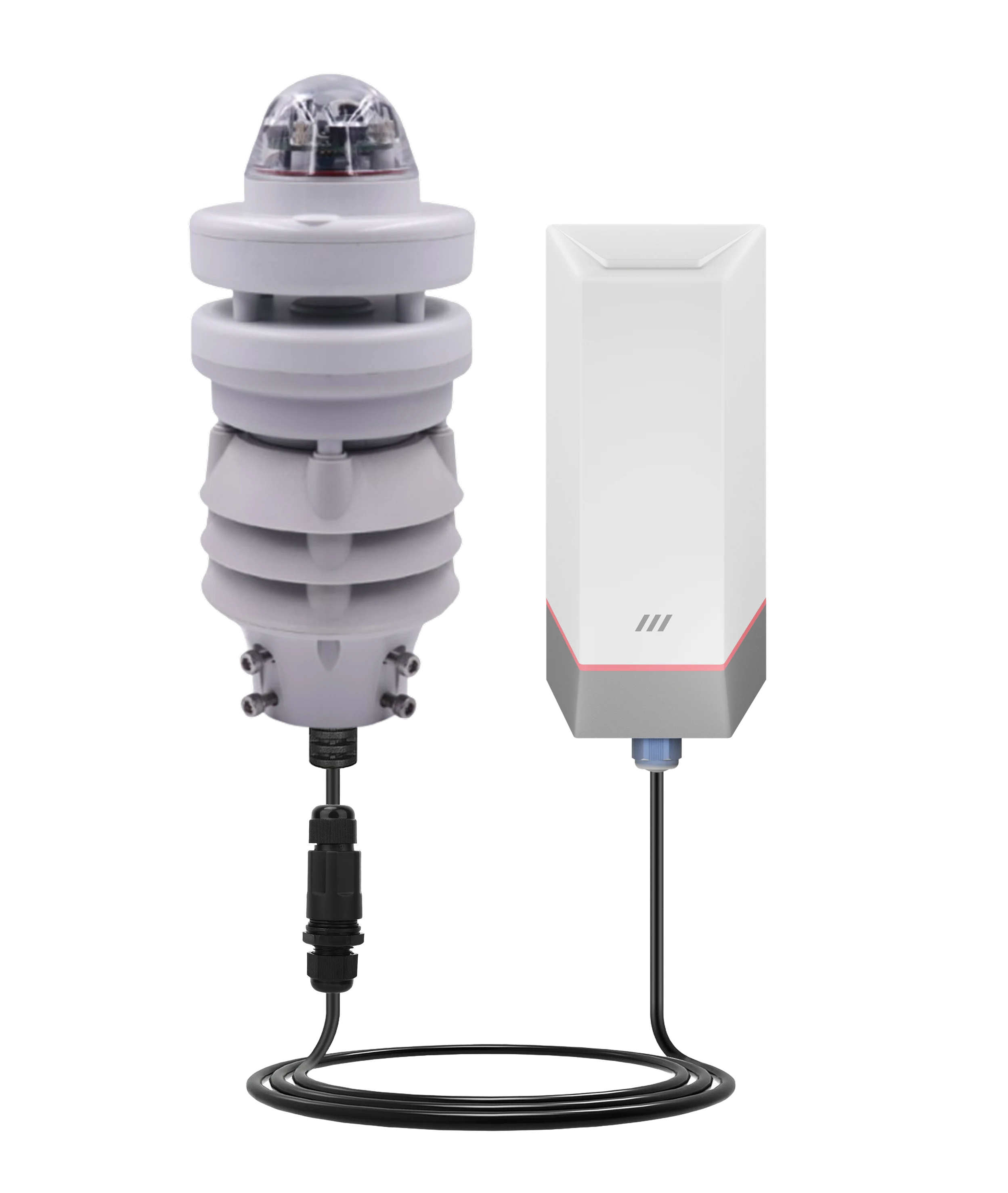

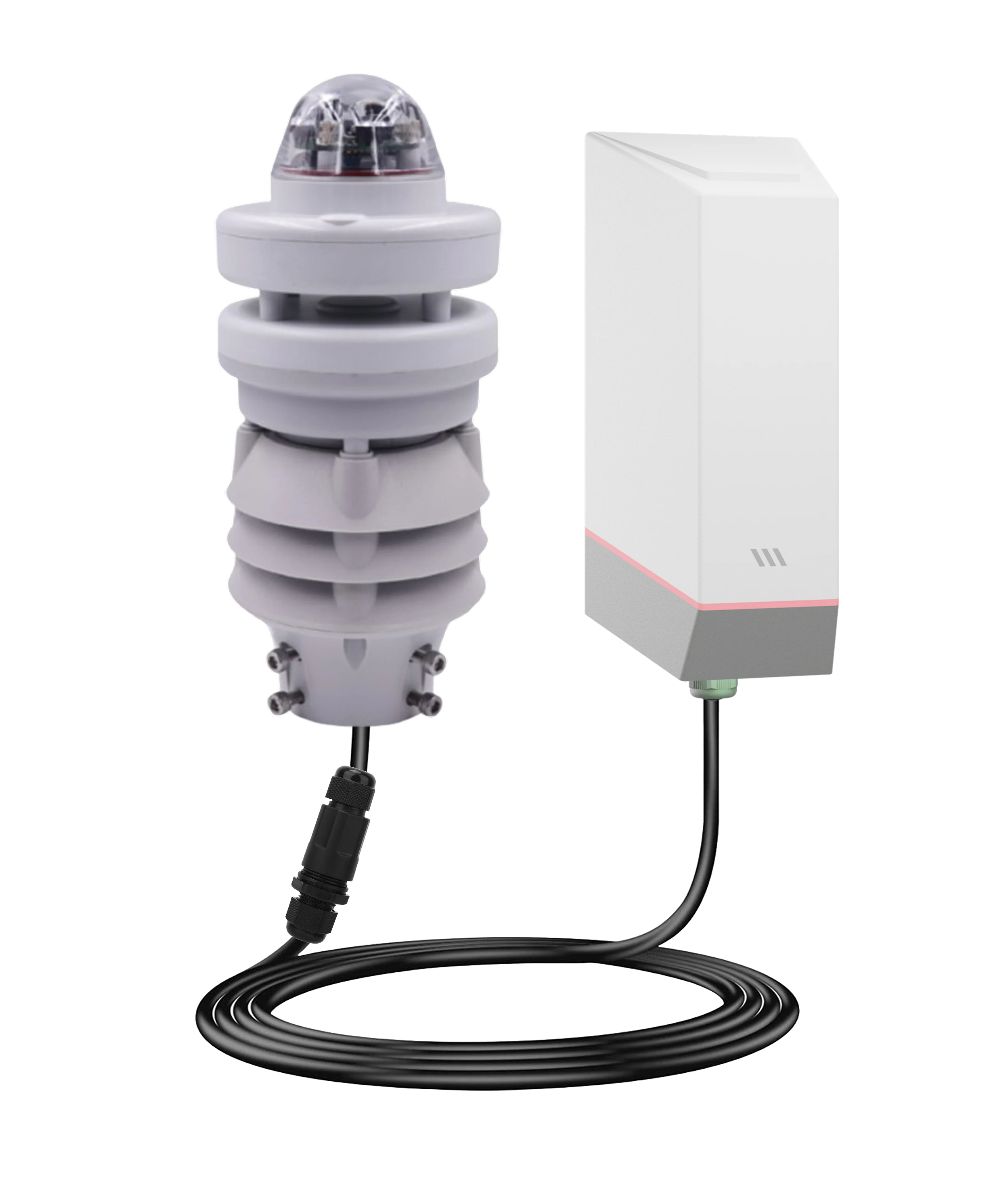

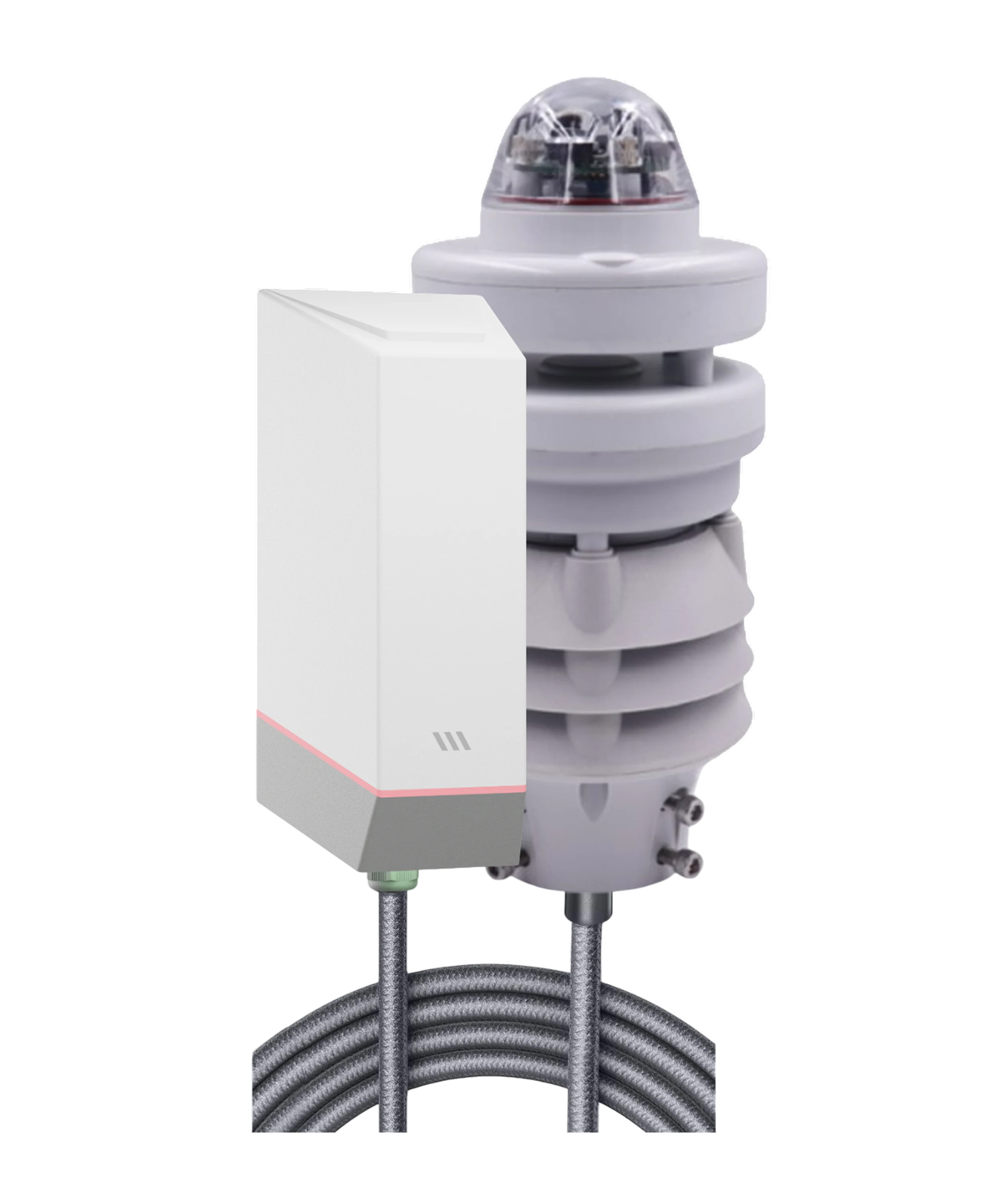

MacSync‑LWSX6 is a next‑generation 6‑in‑1 LoRaWAN® automatic weather station designed for precision meteorological monitoring in agriculture, smart‑city infrastructure, renewable energy plants, industrial safety zones, and environmental intelligence networks. It seamlessly measures wind speed, wind direction, rainfall, temperature, humidity, and atmospheric pressure, delivering real‑time weather insights for automation and climate‑driven operations.
Engineered for long‑range wireless communication and ultra‑low‑power operation, MacSync‑LWSX6 ensures reliable field data collection even in remote outdoor locations. Its industrial‑grade sensors, IP65 weather‑resistant enclosure, and UV‑protected housing enable continuous performance in harsh climatic conditions — from heavy monsoon rainfall to high‑velocity winds and extreme heat.
With advanced wireless capabilities including LoRaWAN® Class A/C, OTA configuration via Maya App, optional solar‑battery hybrid power, and onboard data buffering, MacSync‑LWSX6 enables scalable, secure, and maintenance‑efficient environmental monitoring for farms, industries, airports, and disaster management authorities.
Download Center
Download the PDF Version of the Datasheet .
Click here to view the decoders for MacSync-LWSX6
Key Features
6‑in‑1 Environmental Sensing Measures wind speed, wind direction, rainfall, temperature, humidity & atmospheric pressure simultaneously.
Industrial‑Grade Accuracy Precision‑calibrated meteorological sensors optimized for climate‑driven automation and analytics.
Extended‑Range LoRaWAN® Connectivity Long‑distance wireless communication with ultra‑low‑power operation for remote installations.
Solar + Battery + Direct Power Options Flexible power architecture for uninterrupted environmental monitoring in any location.
Rugged Outdoor Design IP65 weather‑resistant enclosure built to withstand UV exposure, rain, storms & extreme temperatures.
OTA Configuration & Diagnostics Manage settings, calibration, firmware updates & troubleshooting via Maya App — no physical access needed.
Failsafe On‑Device Data Buffering Local data storage ensures zero‑data loss during network downtime or poor connectivity.
End‑to‑End Secure Communication AES‑encrypted weather data delivery for critical agricultural, aviation & safety operations.
Universal Network Compatibility Fully interoperable with leading LoRaWAN® network servers & cloud IoT ecosystems.
Suited Applications
Smart Agriculture & Irrigation Automation Weather‑driven crop insights to optimize watering, fertilization, and yield protection.
Smart City Climate Monitoring Urban heat mapping, rainfall analytics, and stormwater planning for city infrastructure.
Industrial Safety & Operational Monitoring Weather‑condition alerts for outdoor equipment, cranes, storage yards & logistics hubs.
Airports, Ports & Transportation Hubs Wind and weather‑condition monitoring for flight, sailing, and traffic operations.
Renewable Energy Sites Weather data for solar farm performance optimization and turbine wind assessment.
Disaster & Emergency Response Networks Rainfall and wind warnings for flood management, storm tracking & public safety systems.
Environmental Research & Climate Studies Long‑term field‑deployed meteorological data logging for weather pattern analysis.
Campus & Institutional Deployments Automated weather reporting for universities, corporate campuses & industrial parks.
Technical Specification
General
Specifications
Part Order Number
MacSync-LWSX6
Product Brand
Macnman Technologies Pvt Ltd
Environmental
Measurement
Ambient Temperature Range
-40°C to +85°C
Ambient Temperature Accuracy
±0.3°C @ 25°C
Ambient Temperature Resolution
0.01°C
Relative Humidity Range
0% to 100% RH (non‑condensing)
Relative Humidity Accuracy
±3% RH (@ 90% RH)
Relative Humidity Resolution
0.01% RH
Wind Speed Range
0–60 m/s
Wind Speed Accuracy
±(0.3 + 0.03V) m/s
Wind Speed Resolution
0.01 m/s
Wind Direction Range
0°–359.9°
Wind Direction Accuracy
±3° (Speed < 10 m/s)
Wind Direction Resolution
0.1°
Atmospheric Pressure Range
500–1100 hPa
Atmospheric Pressure Accuracy
±0.5 hPa @ 25°C
Atmospheric Pressure Resolution
0.1 hPa
Rainfall
0–200 mm/h
Rainfall Accuracy
0.2 mm/h
Wireless
Transmission
Wireless Protocols
LoRaWAN® (v1.0.4)
Macnman MacTalk Protocol
Antenna
Internal high-efficiency antenna
Supported Bands
IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Tx Power
23 dBm @ 868 MHz / 20 dBm @ 915 MHz / 19 dBm @ 470 MHz
Sensitivity
-137 dBm @ 300 bps
Activation
OTAA
LoRaWAN® Class
Class A (default)
Configurable to Class C via Maya
LED
Status
LED Type
1 Internal Multi-Color LED
Solid Blue
Device is connected with Maya App
Flashing Blue
OTA (Over-the-Air) update in progress
Slow Blinking Green
Attempting to connect to the LoRaWAN® network
Single Red Blink
A confirmed parameter of MacSync is being modified
Device
Configuration
Configuration
Via Macnman Maya Android App
Uplink Modes
Time Based / Threshold Based / Sampling Based
Stored Records*
30,000 Records
Remote Configuration
JSON Format Data - from server
Battery
Performance
Battery Type
Li-SOCl₂ Cell (19Ah) Industrial grade
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Battery Life
Up to 07 years (10 Mins Uplink Interval)
Supported
LNS
Supports Major LNS
Private LNS
Chirpstack
The Things Networks
MQTT
Orbiwise
LORIOT
Direct PLC On-Prim Installations
Physical
Characteristics
Power Supply (Optional)
9-36 V DC
Operating Temperature
-40°C to +80°C
Humidity Range
0% to 100% RH (non-condensing)
Ingress Protection
IP65 standard (IP67 optional variant)
Housing Material
Glass field Nylon
Color
Matte White
Weight
~510g
Mounting Options
Pole Mounting / Wall Mounting
Electrical
Characteristics
Input Voltage Range (Optional Varient)
9-36 V DC (External Supply)
Power Consumption
~100 µA in sleep mode
~50 mA during transmission
Input Impedance
>10 MΩ for voltage inputs
Communication
Options
BLE Connectivity
For local configuration and diagnostics via Maya App
Cloud Protocols
MQTT / HTTPS / TCP IP (Gateway Dependent )
Serial Interface
RS485 Modbus RTU support (optional)
Certifications &
Compliance
WPC
Compliant
RoHS
Conforms to RoHS directive
Security &
Encryption
Data Encryption
AES-256 end-to-end encryption
Authentication
OTAA activation modes
Firmware Protection
Secure boot and signed OTA updates
MacSync-LWSX6 Variants
| Variant Name | Power Source | Battery Capacity | Solar Support | Ideal Deployment |
|---|---|---|---|---|
| MacSync-LWSX6-PO | External Power (9–36 V DC) | ✖️ | ✖️ | Industrial sites, automation systems & weather‑dependent machinery control |
| MacSync-LWSX6-BO | Battery Powered | 19 Ah | ✖️ | Remote farms, plantations, research stations — no wired power required |
| MacSync-LWSX6-SO | Solar + Battery Hybrid | 12 Ah (Rechargeable) | External solar charging | Long-term field deployments with real‑time climate automation in remote areas |
What's in the box ?
Make sure box contains following items before installations
Accessories must be purchased separately & may not be included in the box.
Product Dimensions
